Abloy Electric Lock Package 3E - Narrow Doors

You can use this package with narrow-style door applications with handle operation, inside handle always operates and the outside handle is controlled and activated on signal from access control system. Key override at all times from outside.

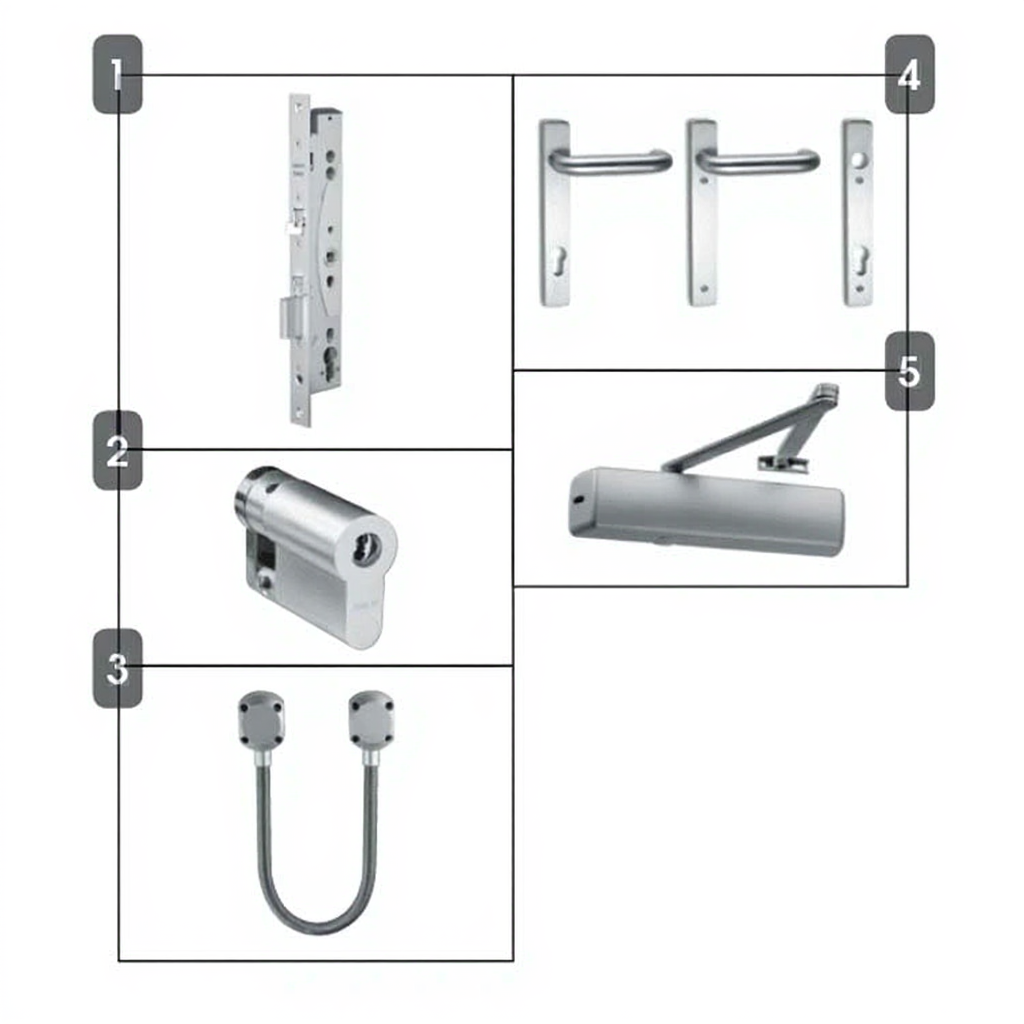

What's included:

• 1. EL460 solenoid lock
• 2. CY326 single cylinder - DIN Europrofile
• 3. DL8 door loop
• 4. 60-0819-SSS handle set (3-19/750 PZ+BL-SSS alternative)

Technical Specification

• Operating voltage: 12 V DC to 24 V DC stabilised (+15%-10%).
• Current draw: 12 V DC 350 mA max 24 V DC 250 mA max.
• Backsets available: 30 mm, 35 mm.
• Monitoring: RQE on inside handle, bolt position, door position, cylinder operation.

Standards

• EN179 when used with correct furniture
• EN1634-1
• EN61000-6-1
• EN1303 (cylinder)
• EN1484
