Abloy PE580 Solenoid Electric Lock

For wooden or metal doors, with deadlocked latchbolt, fail locked/fail unlocked. Bolt position and handle operation. Outside handle controlled. For use with PBE-001 for EN1125 exit solution.

Features:

• Easily reversible trigger bolt and deadbolt, suitable for all hands of door.
• Quick change fail locked to fail unlocked.
• Selectable 14mm or 20mm deadbolt throw (PE580: 14mm only).
• Automatic deadlocking of deadbolt only when door shuts.
• Meeting EN179 and EN1125 for emergency and panic exit doors and EN1634-1 for fire resistance (inside handle can be operated at all times (EL580 and PE580 only).
• Retrofits mechanical Scandinavian mortice locks.

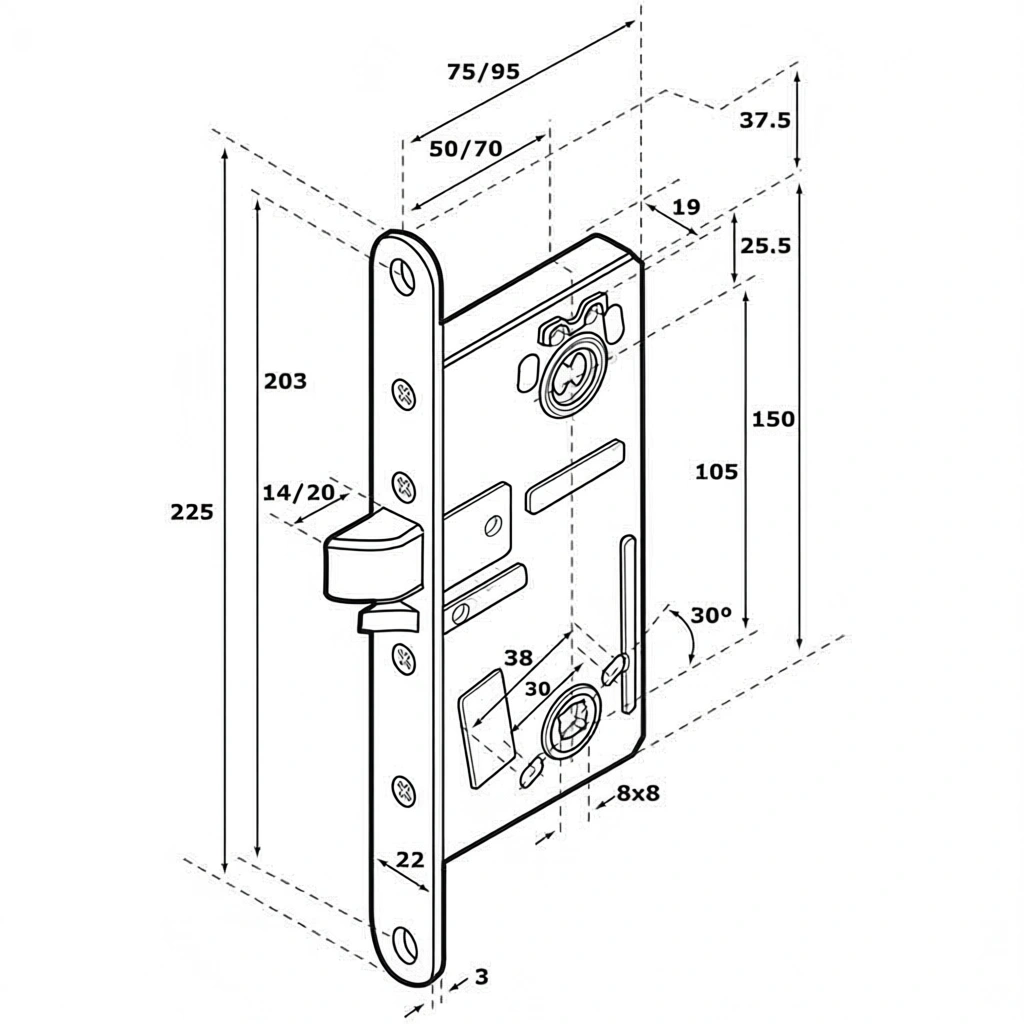

Technical Specification:

Operating voltage +15%, -10% 12V DC to 24V DC stabilised
Current max Idle 120mA, Max 350mA
Temperature (ºC) -20 to +60
Backset (mm) 50
Follower (mm) 8
Forend finish Polished Chrome
