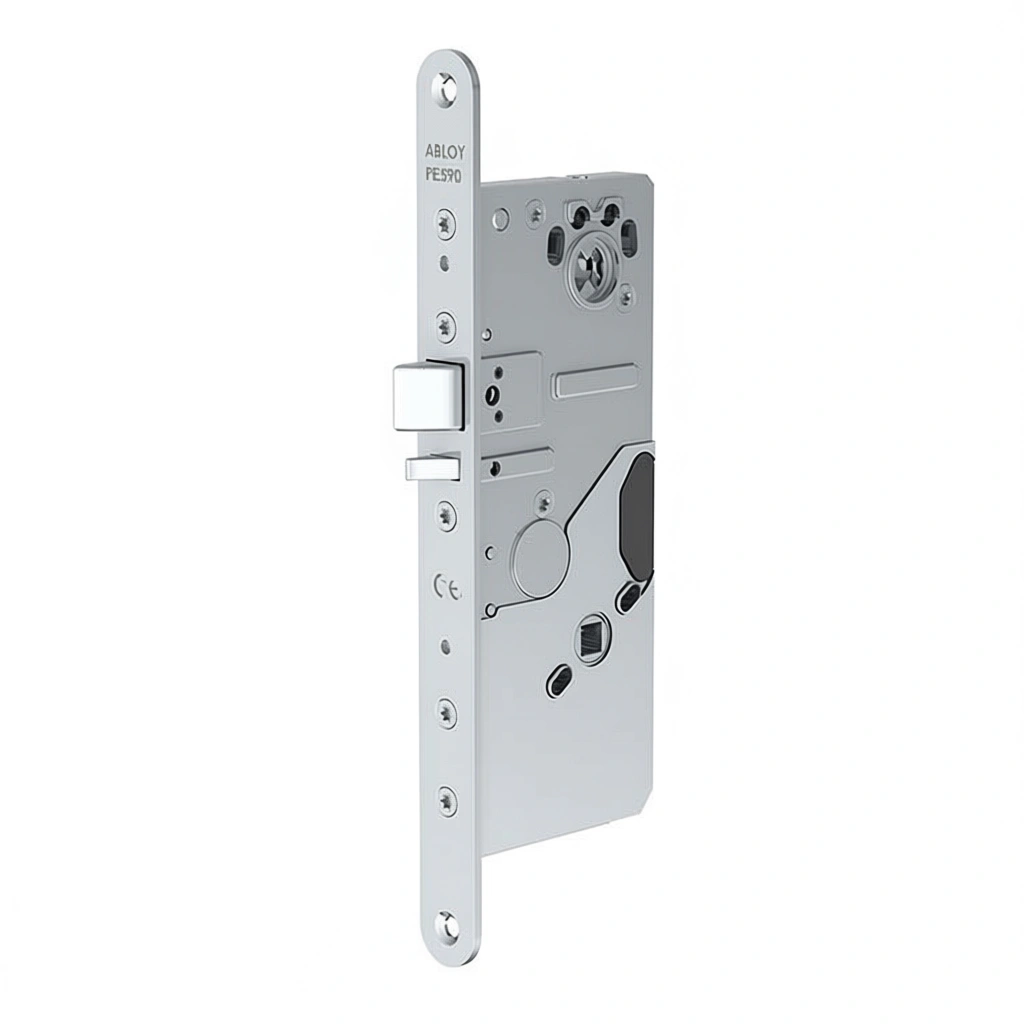

Abloy PE590 Motor Electric Lock

• The Abloy PE590 is designed For wooden or metal doors.
• Available in 50mm backset.
• Fail locked outside
• Free egress from inside when handle fitted.
• Meets EN1125 when used with PBE-002 panic bar.

Features:

• Easily reversible deadbolt and trigger bolt
• 14mm Deadbolt
• Inside handle operates at all times or can be controlled electrically in two-way access-controlled doors (electrically controlled handle won't meet EN179 or EN1125)
• Meets EN179 and EN1125 for emergency and panic exits and EN1634-1 for fire resistance doors (when inside handle can be operated at all times and installed with suitable hardware)
• Tested to mechanical resistance standard EN12209
• Tested to draft standards prEN14846
• Retrofits mechanical Scandinavian mortice locks

Monitoring

• Bolt position, handle operation and request to exit (RQE).
• For cylinder indication, additional component required 950885
