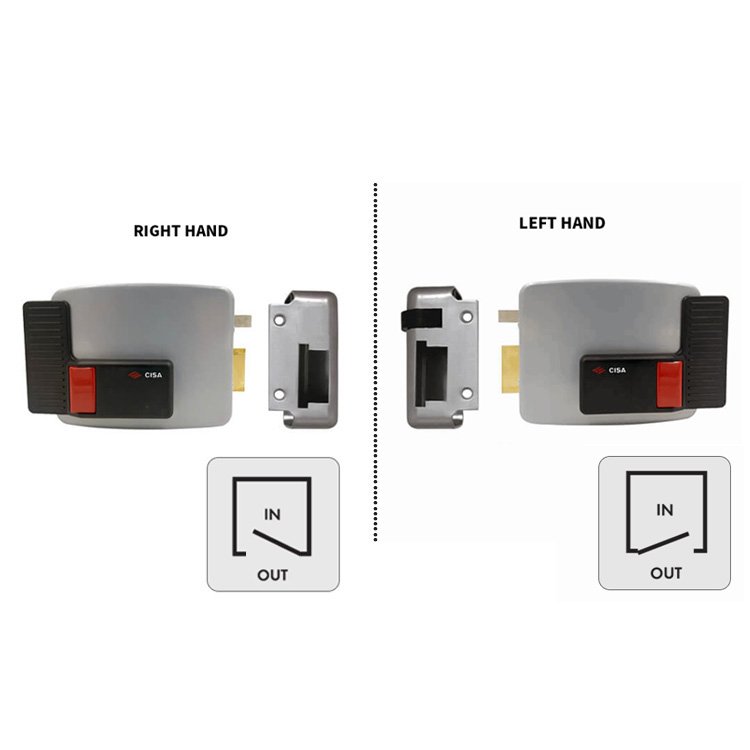

CISA ELECTRIC RIM LOCK - INWARD OPENING

Overview:

• Electric rim lock: dead-locking latch bolt system and opening guaranteed even with a drop in voltage.
• Greater security for doors and large entrance doors which are not deadbolted. Dead-locking latch bolt: when the door is locked, the withdrawal of the deadbolt automatically blocks the latch bolt.
• Protection against forced entry. Certified up to Security grade 3 according to EN 14846.Protection against attempts at forced entry in the electric hook bolt area.
• The lock can always be opened, even with a voltage drop. When the voltage is below the minimum rate (12V), the adjustable electric hook bolt system ensures the lock can always be opened electrically (button).
• Managing flow through access. The button on the lock (fitted on certain models) can be blocked by the key, leaving the door/gate always open (hold open function).
• Grade 3 Security in compliance with EN 14846, an adjustable electric release system to open the door when the voltage drops.

Technical features:

• Certified up to Security grade 3 according to EN 14846
• Protective barrier against attempts to pick the lock release
• Dead-locking latch bolt: when the door/gate is locked, the withdrawal of the deadbolt blocks the latch bolt
• When the voltage is below the minimum rate (12V), the adjustable electric release system ensures the lock can always be opened electrically
• The button on the lock (fitted on certain models) can be blocked by the key, leaving the door/open always open (hold open function)
• Grey painted steel case and floor striker
• 12V AC CE
• Current absorption 2.5A
• External cylinder length 55 mm

Supplied with:

• Floor striker
• Instruction sheet
• Fixing screws
• 3 keys
• Rim cylinder
