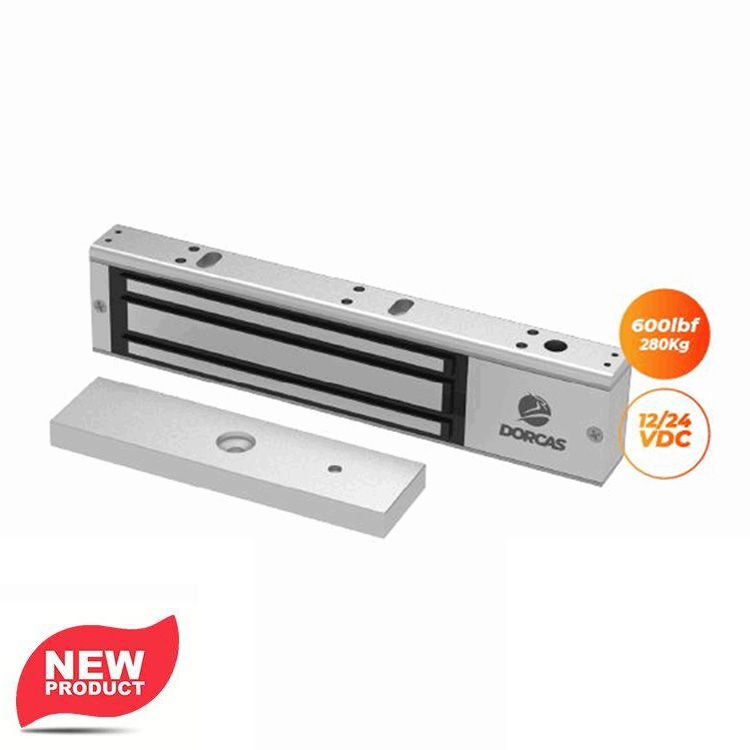

MINI Electro-Magnetic Lock - 12/24V DC - 280KG

Overview:

• Electromagnetic lock with retention force of 600lb (280kg).
• Designed to be surface-mounted.
• It includes an electromagnetic locking element, counterplate and fixture plate.
• It has an outlet for monitoring the state of the locking and visual signalling (LED).
• Installation type: Surface mounted.

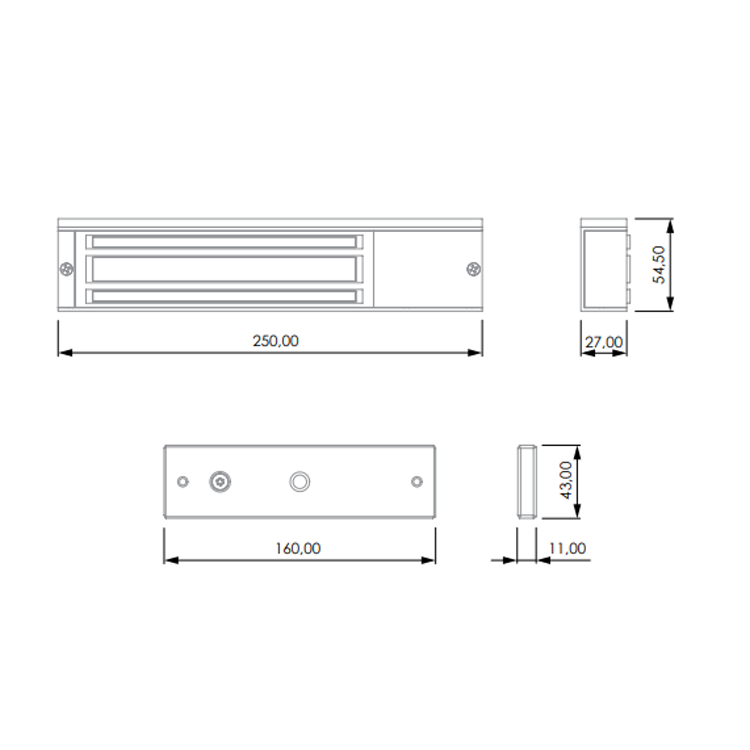

Specifications:

• Height: 53 mm.
• Width: 250 mm.
• Depth
• Depth: 27 mm.
• Voltage: 12/24 VDC.
• Material: Aluminum.
