Double 300kg Electro-Magnetic Lock - Monitored

High-performance magnetic locking at a cost-effective price. The C3S12 is a double surface maglock which provides up to 600kg of holding force, spread across two 300kg magnets.

The lock comes with armature plates, fixing kit, and full fitting instructions. Fully compatible with CDVI brackets, housings, and accessories, the C3S12 is a flexible and robust locking solution for a wide range of projects.

Technical Specifications:

• Fail Safe
• Surface Mounting
• Min. Voltage (V) 12Vdc
• Max Voltage (V) 24Vdc
• Voltage: DC
• Max Power Consumption (mA) 960mA @12Vdc / 480mA @24Vdc
• IP Rating: IP42
• IK Rating: IK10

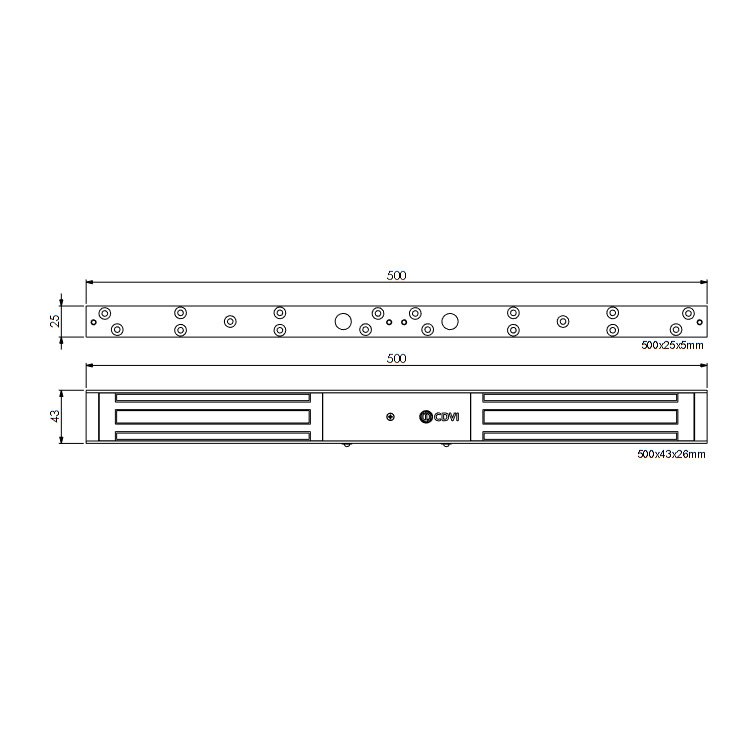

Dimensions:

• 502 x 42 x 27 (hwd mm)
• Armature Plate: 185 x 38 x 11 (LxWxH mm)
