DTXT5434-MI

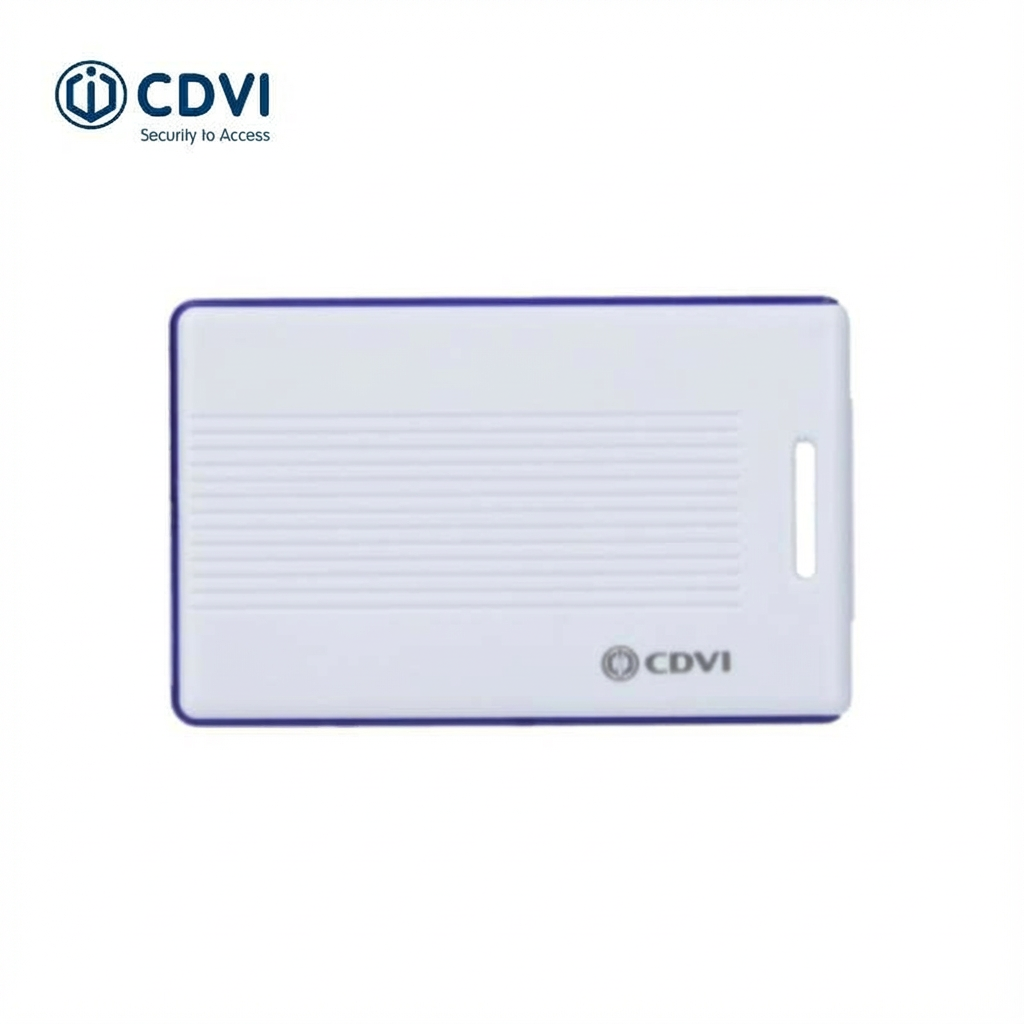

DTXT5434-MI Long-range active tag & MIFARE® card credential

This dual technology card credential offers ultimate flexibility and convenience for users. The active tag allows users to be granted access without having to present the card directly to the reader; even if the card is in their pocket or attached to a lanyard, the long-range reader will pick it up. The additional built-in MIFARE® Classic tag can store more than just the unique access code; it can also be used to store other data such as payment information for vending machines.

Key features:

Hands-free convenient access control
Cards identified up to 15m away
Dual technology active tag & MIFARE® Classic
Built-in rechargeable battery
Compatible with DTRR long-range readers

TECHNICAL SPECIFICATIONS:

Card / reader technology
Dual technology active tag & MIFARE® Classic
Security Level
Normal
Frequency
433.92MHz (active) / 13.56MHz (MIFARE®)

ELECTRICAL SPECIFICATIONS:

Battery included
CR2032 3V battery cell

DIMENSIONS:

Product Height (mm)
54
Product Width (mm)
85
Product Depth (mm)
5
Product Weight (kg)
0.03
