Galeo Digicode Remote Electronics Keypad Kit With Mini-Magnet (100 User)

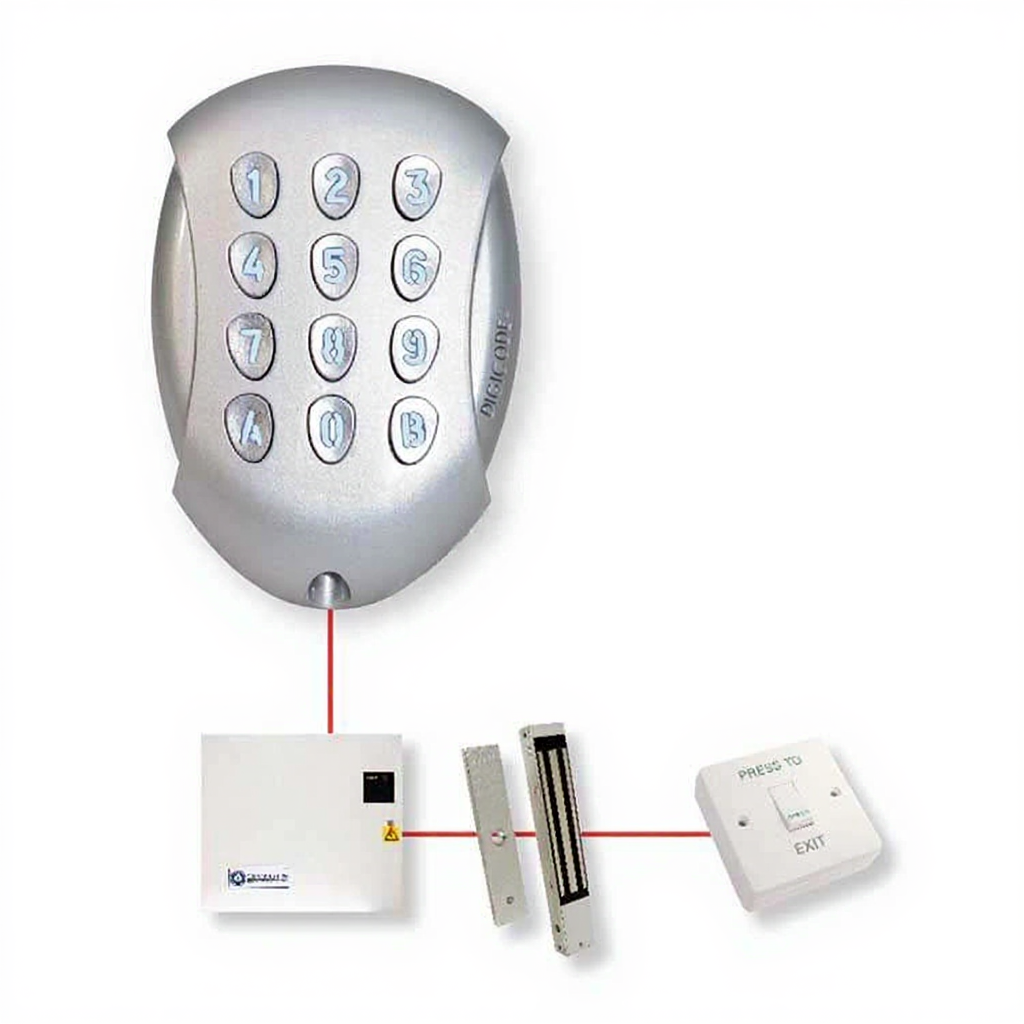

This kit includes:

• 1x GALEO Illuminated Digicode® keypad 1 output.
• 1x Mini magnet 12/24vDC 300kg (660lbs) (12v 630mA) Monitored as standard, with a bi-coloured LED for visual verification of lock status and changeover relay for use if remote monitoring is required. Surface mounted. (Does not include brackets).
• 1x Exit button for internal use - 83mm x 83mm. Manufactured in sturdy plastic, ideal for mounting on standard UK back-boxes where the traffic is light to medium. C/W surface box 1 gang.
• 1x Transformer (12v DC 1A) 220x250x80mm White.

Overview:

• Surface mount
• Ideal for harsh environments.
• Free voltage.
• Mounting with Torx® screws.
• Completely sealed with epoxy.
• PCB of remote electronics protected with a varnish coating.
• Audible and visual feedback.
• Input Voltage: 12/24v AC or 12/48v DC.
• Consumption: 30 to 100mA.

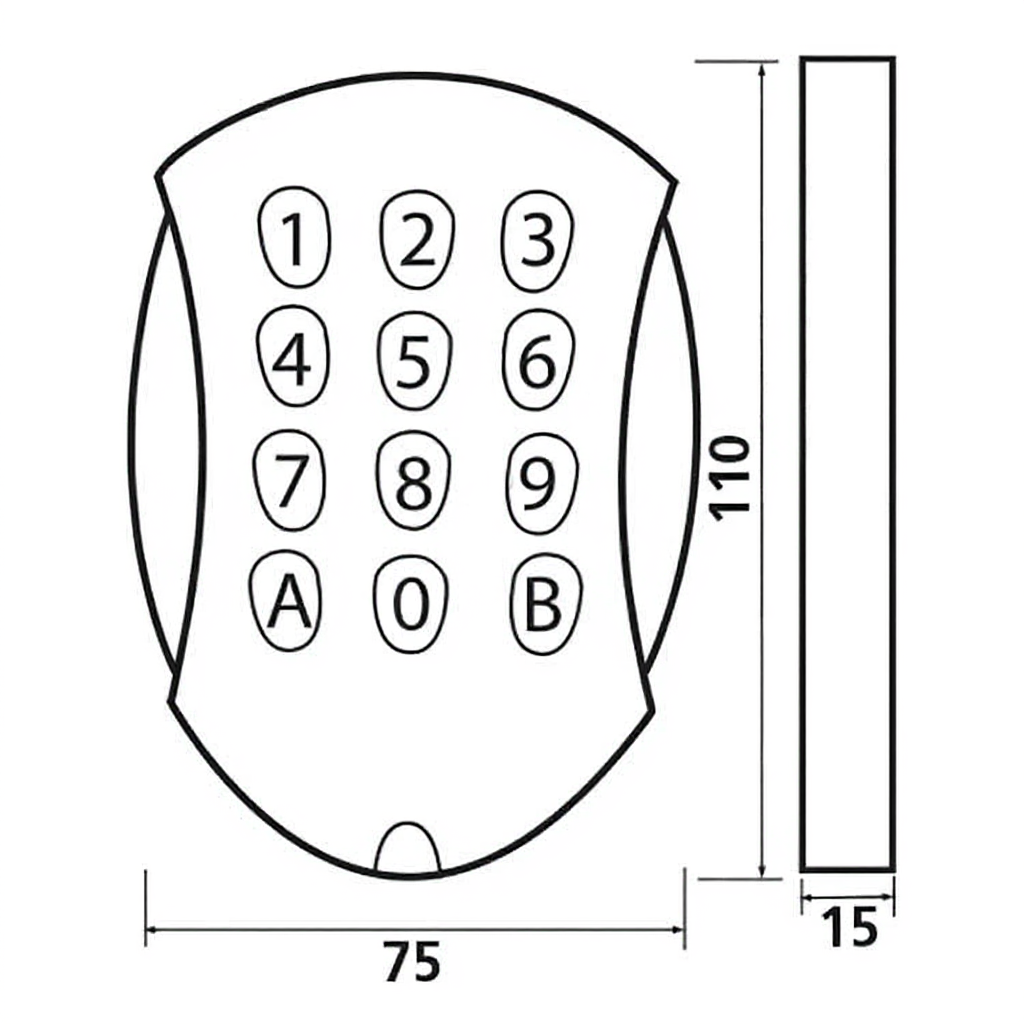

• Dimensions: 110 x 75 x 15mm.
• Temperature: -25°C to +70°C.
• Salt spray tested.
• IP Rating: 64.
• High resistance to vandalism.
