GALEO-R

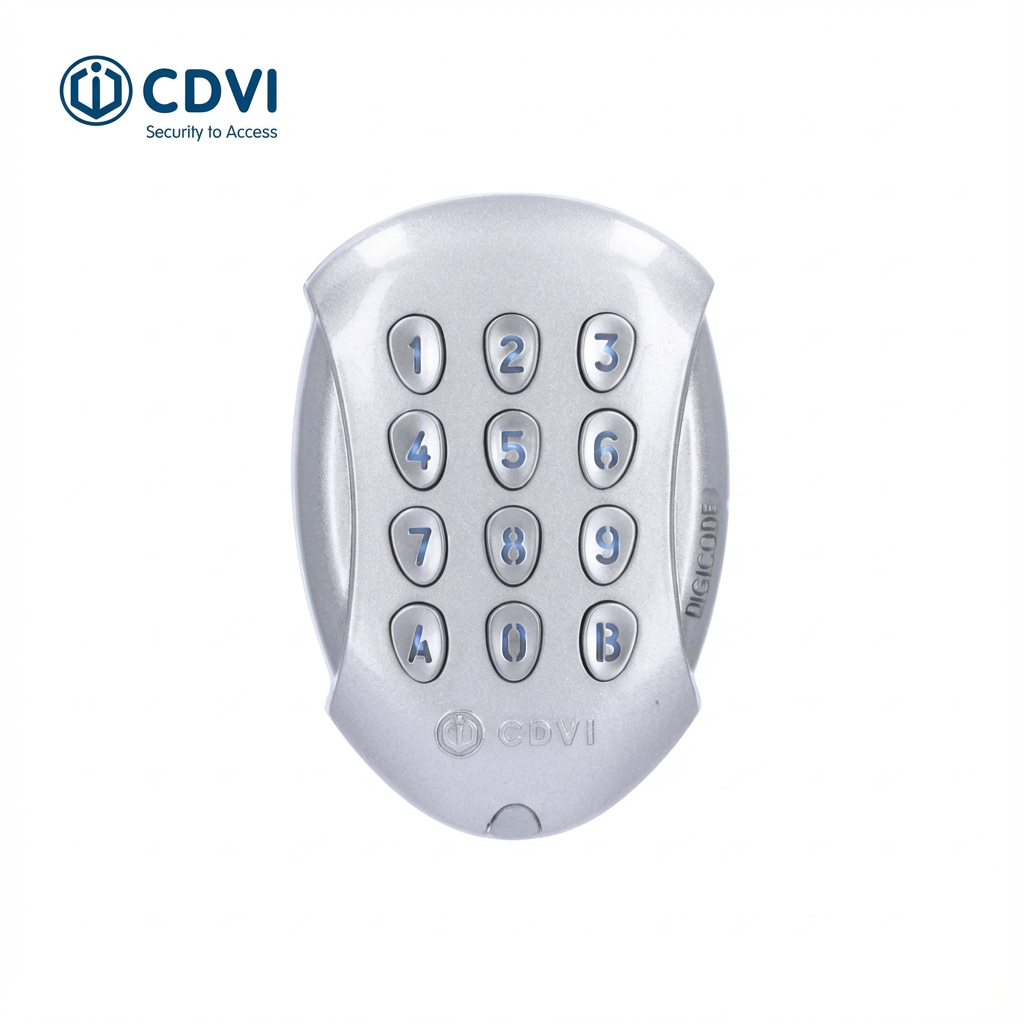

GALEO-R Wireless keypad transmitter

This wireless keypad uses radio frequency communication to transmit data from the keypad to a receiver. In some cases, running cables to a keypad location is unsuitable or impossible. This keypad is battery powered and requires no wires at all. With an IP64 rated enclosure, vandal-resistant Torx® screws, and data transmission protected by KeeLoq® hopping code, the GALEO-R overcomes a wide range of common challenges. This keypad is compatible with all 433.92MHz receivers in the CDVI range.

Key features:
Wireless radio frequency keypad
Polished, high tensile Zamak® alloy casing
Backlit keys that are easy to see in the dark
Up to 200m read range
Up to 22 codes and 2 channels

TECHNICAL SPECIFICATIONS:
Mounting: Surface
Min Temperature (°C)
-25°C
Max Temperature (°C)
70°C
Channels: 2, using A & B keys
Frequency: 433.92MHz
Modulation: AM/ASK
Encoding: KeeLoq® hopping code
Range in Open Field (m): Up to 200m in open field

ELECTRICAL SPECIFICATIONS:
Battery included
3.6V Lithium battery

DIMENSIONS:
Product Height (mm)
110
Product Width (mm)
75
Product Depth (mm)
27
Product Weight (kg)
0.3
