GALEOBT

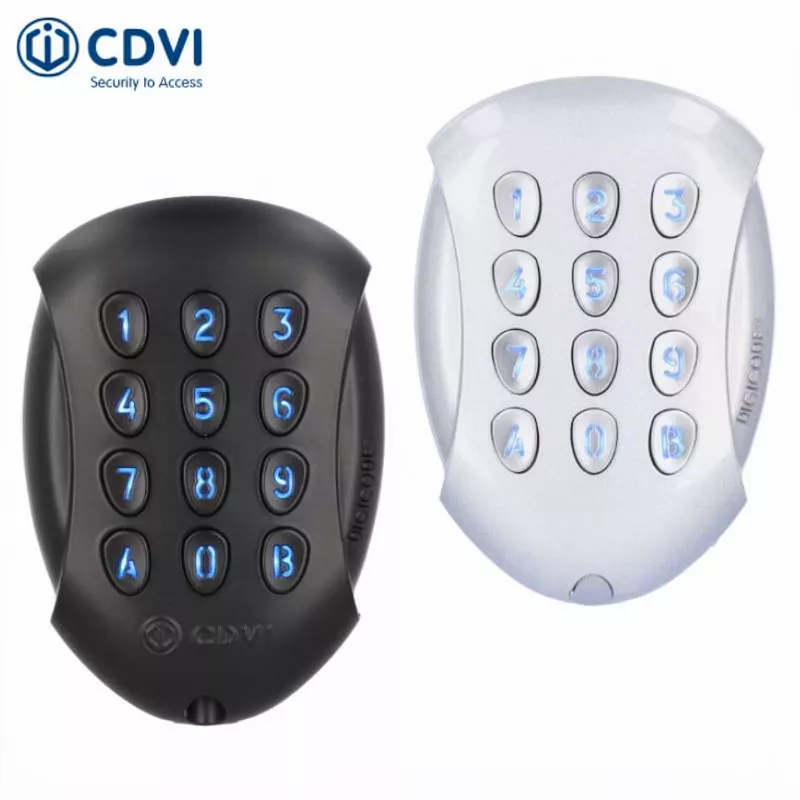

GALEOBT Bluetooth backlit keypad with remote electronics

GALEOBT is an innovative surface mount keypad combining sleek and stylish aesthetics with robust security. With a remote electronic controller and vandal-resistant body, this keypad minimises the risk of the system being disabled through tampering. GALEOBT is Bluetooth-enabled, and its free iOS or Android app makes programming easier than ever. With a simple and intuitive interface, you can quickly set up all the key parameters directly from your smartphone.

Key features:

Surface mount keypad combining style with robust security
Electronics supplied in separate remote housing for added security
Bluetooth-enabled – configure parameters from your smartphone
User app available – open the door from your phone & share temporary codes with visitors
Vandal-resistant screws and IP64/IK10 rating for installation in harsh environments

TECHNICAL SPECIFICATIONS:

Bluetooth: Yes
User Limit: Up to 100 user codes
Number of Relays: 3 relays with pulse, timed, or latched modes
Mounting: Surface mount with Torx® tamper-resistant screws
Min Temperature (°C)
-25°C
Max Temperature (°C)
70°C

ELECTRICAL SPECIFICATIONS:

Min. Voltage (V)
12Vac/dc
Max Voltage (V)
24Vac/48Vdc
Voltage AC/DC
AC/DC
Max Power Consumption (mA)
195mA @ 12Vdc

DIMENSIONS:

Product Height (mm)
110
Product Width (mm)
75
Product Depth (mm)
15
