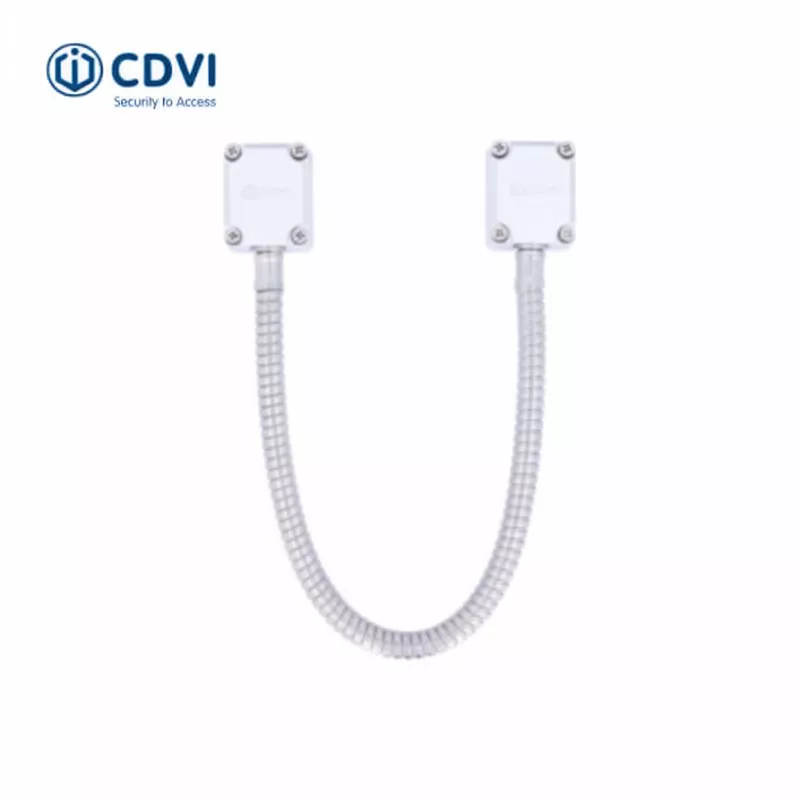

GF45 Robust door loop, 45cm

GF45 Robust door loop, 45cm

GF45 offers a safe and secure method of transferring cables from a fixed point, such as from the door frame onto the door leaf. With a metal loop for better protection, GF45 has a minimum internal diameter of 9mm, which is sufficient to handle the most common cables used in door locking/control.

Key features:

45cm door loop
Ideal for cable/power management
Easy to install
9mm internal diameter
Economical and vandal resistant

Technical information:

Ends: Zamak® cast aluminium.
Fixings: visible.
Length: 45cm.
Diameter loop: external = 13mm; internal = 9mm.

DIMENSIONS:

Product Height (mm)
450 (tube length)
Product Width (mm)
40 (cap)
Product Depth (mm)
23 (cap)
Product Diameter (mm)
9 (internal loop), 13 (external loop)
Product Weight (kg)
0.23
