I500ER

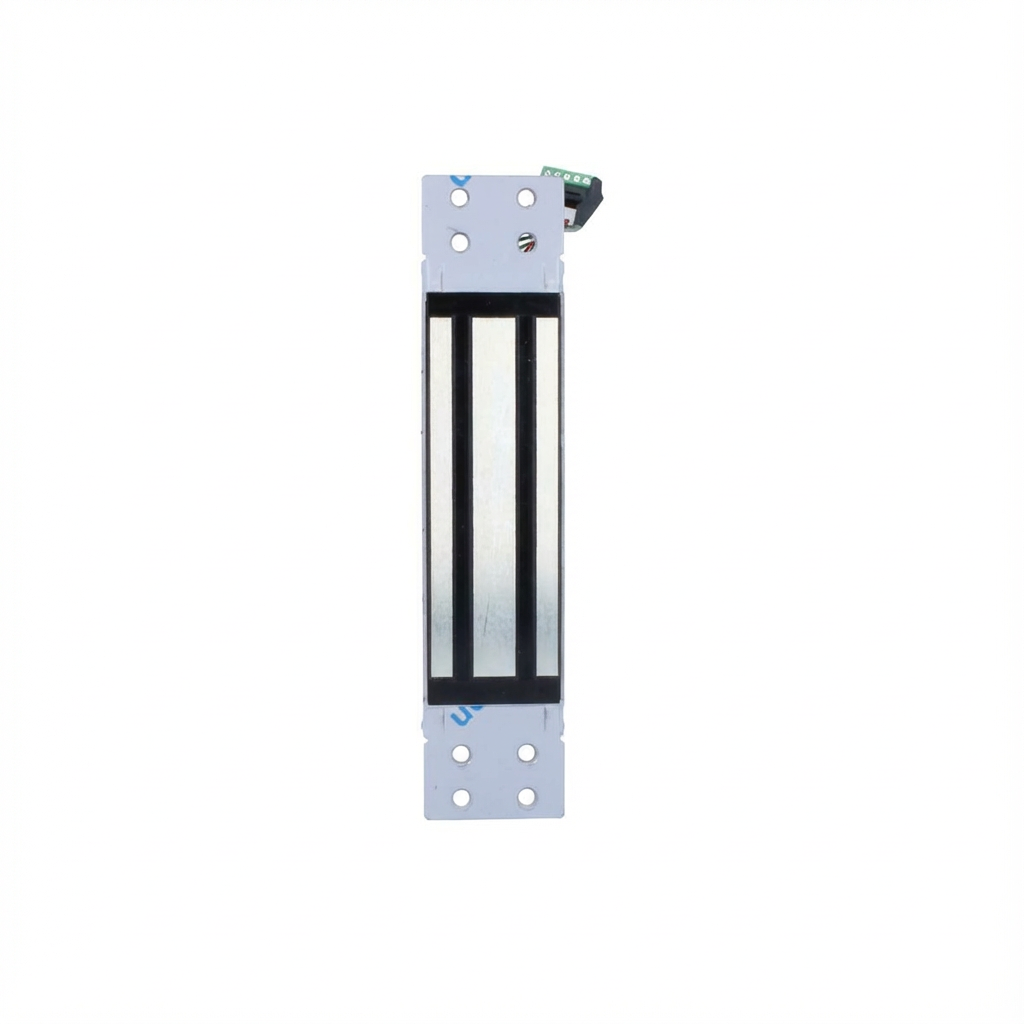

I500ER 500kg external mortice monitored magnetic lock

The I500ER is a monitored mortice maglock with a holding force of up to 500kg. Cased in high grade stainless steel, with a unique cover plate, this magnet is supplied with a full fixing kit.

Key features:
500kg holding force.
Monitored mortice mount maglock.
Stainless steel construction.
For use in harsh environments.
12-24Vdc.

TECHNICAL SPECIFICATIONS:
Number of Relays: 1.
Fail safe.
Mounting: Mortice.
Min Temperature (°C)
-40°C
Max Temperature (°C)
60°C

ELECTRICAL SPECIFICATIONS:
Min. Voltage (V)
12Vdc
Max Voltage (V)
24Vdc
Voltage AC/DC
DC
Max Power Consumption (mA)
480mA

DIMENSIONS:
Product Height (mm)
288
Product Width (mm)
64
Product Depth (mm)
37
Armature Plate Dimensions (LxWxH)
185 / 60 / 12mm
Armature Plate Weight (kg)
1
Product Weight (kg)
2.776
