KCPROX-WLC

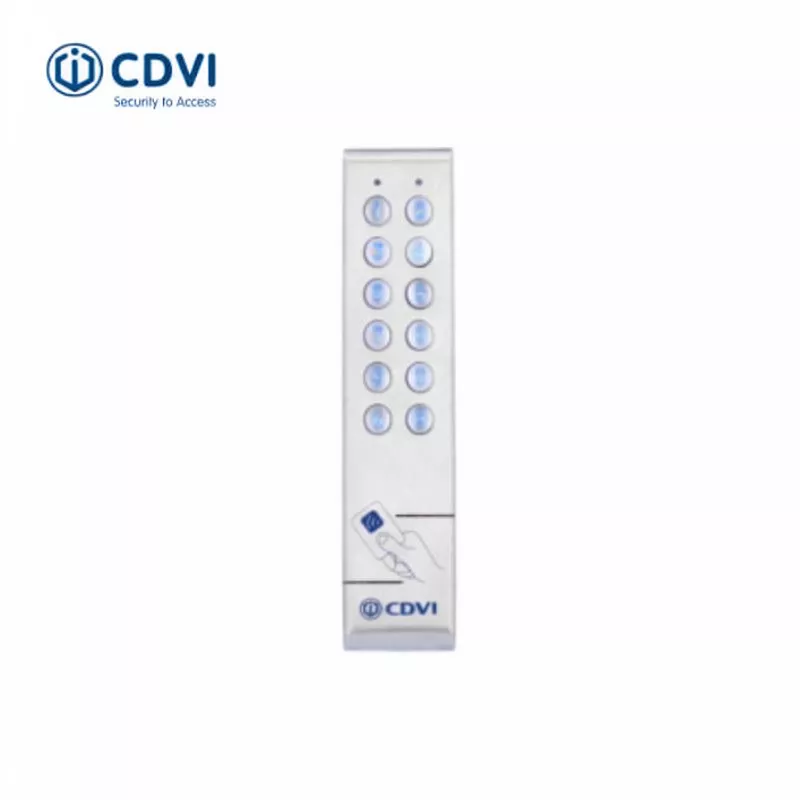

KCPROX-WLC Combined proximity reader & keypad, stainless steel

This reader combines intuitive proximity RFID technology with the added flexibility of a keypad. Users can either present their 125kHz proximity credential directly to the reader face, or alternatively they can enter a pre-defined PIN code to gain entry. Manufactured in stainless steel, the KCPROX-WLC benefits from a robust rating of IP64, as well as Diax® security screws. The reader gives both audible and multi-coloured visual feedback, and is specially designed for low power consumption.

Key features:

Robust stainless steel
Reflective backlight
Card & PIN for increased flexibility
Audible and visual feedback
Wiegand 26, 30 or 44 bit

TECHNICAL SPECIFICATIONS:

Card / reader technology
Digicode & 125kHz proximity
User Limit
10,000 with ATRIUM A22 controller
Mounting
Surface
Min Temperature (°C)
-25°C
Max Temperature (°C)
60°C

ELECTRICAL SPECIFICATIONS:

Min. Voltage (V)
12Vdc
Voltage AC/DC
DC
Max Power Consumption (mA)
120mA
Wiring Distance
Max 120m to controller

DIMENSIONS:

Product Height (mm)
190
Product Width (mm)
43
Product Depth (mm)
27
Product Weight (kg)
0.45
