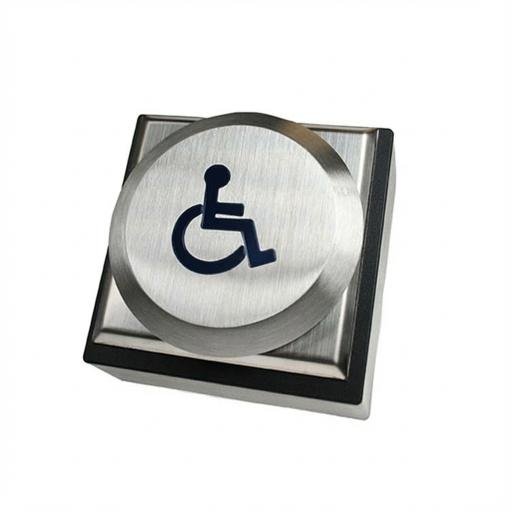

Large DDA Exit Button With Wheelchair Logo - Heavy Use - Flush

The Large DDA Exit Button With Wheelchair Logo has a brushed stainless steel finish and fits on a standard UK back box (Code: EC-EB-BOX), so it's very flexible to install.

The exit button has a large “All Active” target area meaning that the complete surface area of the face will activate the switch. This is ideal for those who have difficulty targetting a smaller button and is particularly suited for DDA compliance and general high traffic areas such as hospitals, public buildings and colleges.

It includes a heavy-duty micro switch with a common, normally open & normally closed changeover contact.

Overview:

• A large all-active target area.
• Push to make & break.
• UK back-box format.
• Surface or flush mounted.
• Dimensions - surface: 130 x 130 x 72mm.
• Dimensions - flush: 130 x 130 x 14mm.
• Switch: 115mm Ø.
• High-quality stainless steel.
• Adaptable to wireless.
• Suitable for DDA environments.
