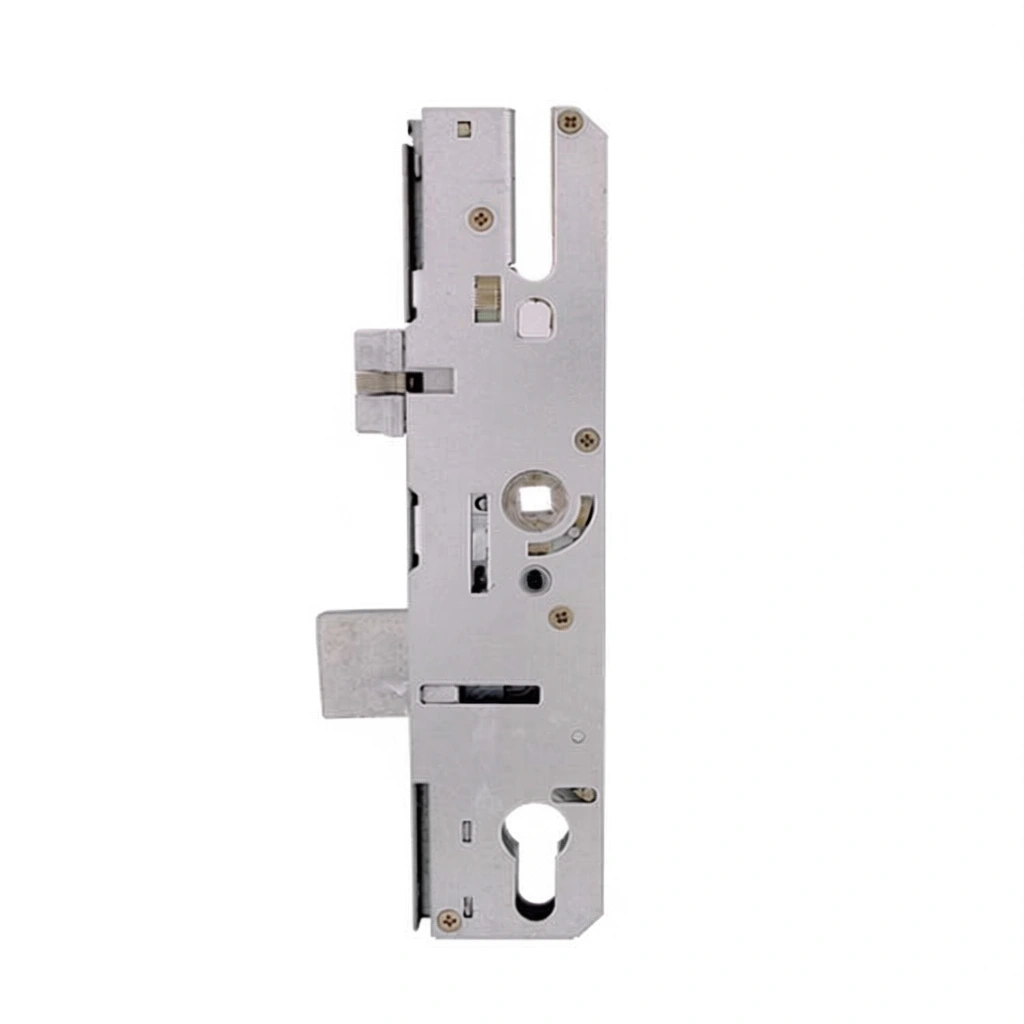

Maco Old Style MK3 UPVC Lock Gearbox

Replacement Gearbox for old-style Maco GTS door locks. It can also be used to replace discontinued MK2 gearboxes.

Overview:

• One latch and one deadbolt.

Overview:

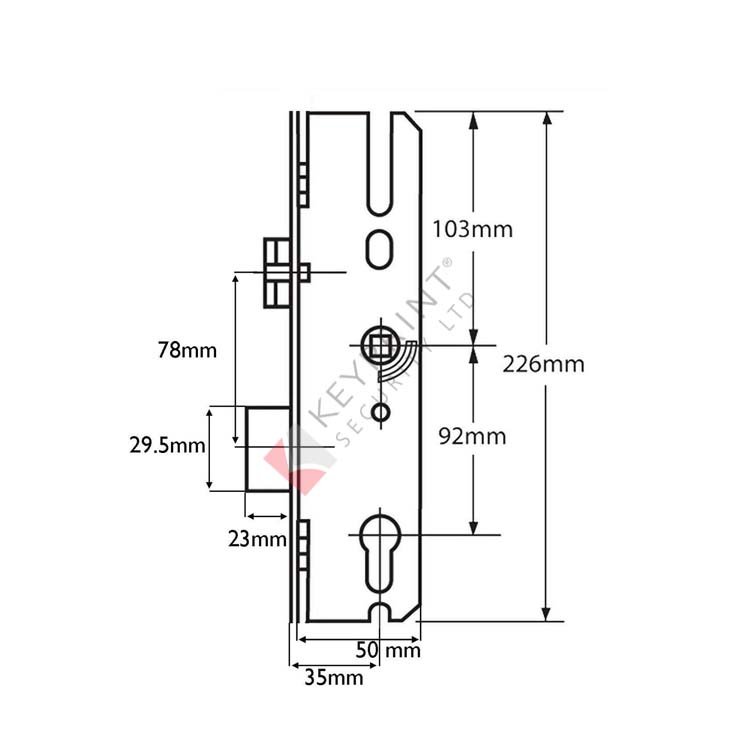

• Backset: 35mm
• Centres: 92mm
• Spindle: Single - 8mm.

Operation:

• Suitable for right and left-handed doors. The latch is easily reversed simply by pushing up the serrated button on the side of the case, removing the latch, reversing and reinserting.
