ML-300-SW

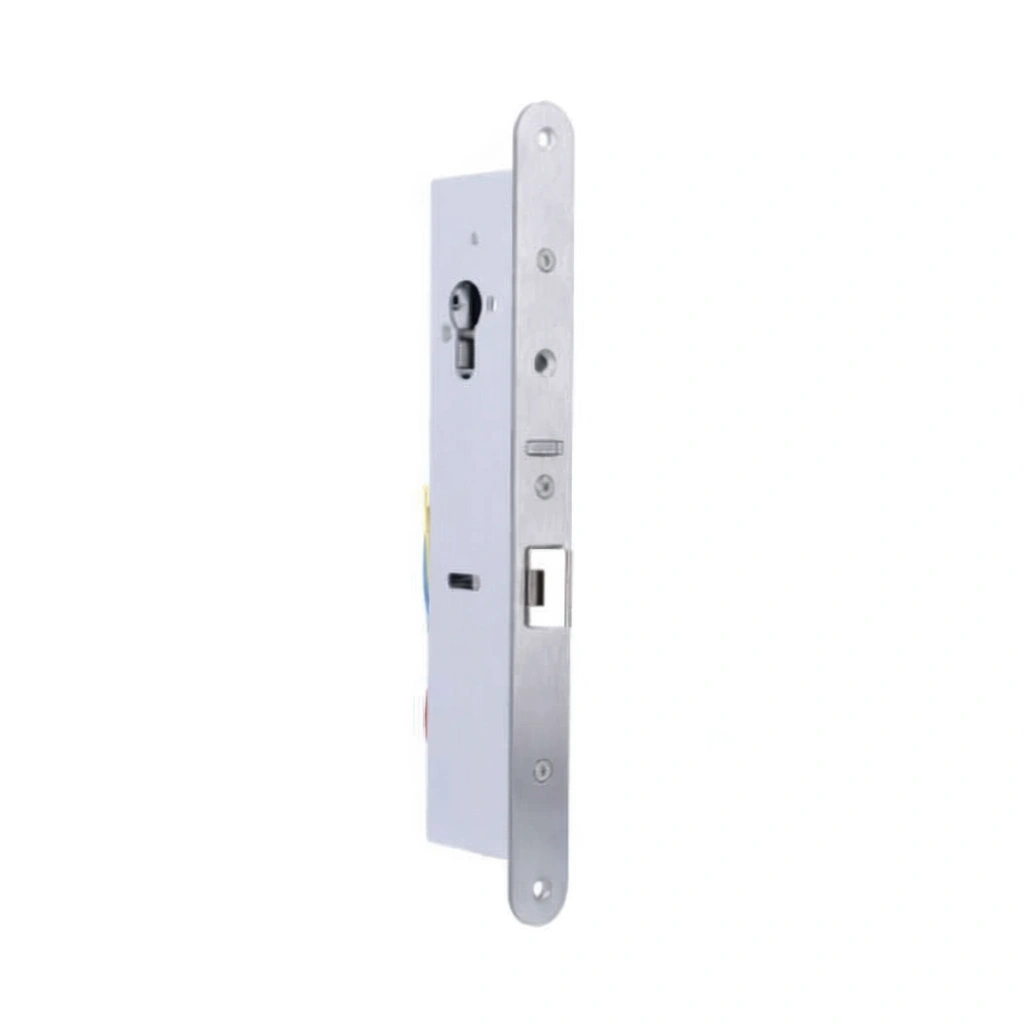

ML-300-SW Reversible EURO cylinder electric lock, 650kg

The ML Range of electric locks are high performance locks suitable for double action doors.

The ML-300-SW provides EURO cylinder operation in the ML series locking range, suitable for vertical mounting and double action door sets.

Manufactured from stainless steel and featuring 650kg holding force, this lock is field selectable between fail safe and fail secure installations. With lock status monitoring and tested to 1,000,000 cycles the ML-300-SW is a great solution for doors require a solenoid type locking arrangement with euro cylinder provision, featuring high quality and long-life operation.

Key features:
Reversible fail safe/fail secure electric lock
Up to 650kg holding force
Suitable for double action doors
Tested for 1,000,000 cycles
Lock status monitoring

TECHNICAL SPECIFICATIONS:
Fail Safe / Fail Secure
Reversible
Min Temperature (°C)
-10
Max Temperature (°C)
49
Cycle testing
Tested for 1,000,000 cycles
Handing
Reversible

ELECTRICAL SPECIFICATIONS:
Min. Voltage (V)
12Vac/dc
Max Voltage (V)
24Vac/dc
Voltage AC/DC
AC/DC
Max Power Consumption (mA)
250mA

DIMENSIONS:
Product Height (mm)
275
Product Width (mm)
25
Product Depth (mm)
44
Armature Plate Dimensions (LxWxH)
150, 40/50, 1.5 mm
