PROFIL100EINT

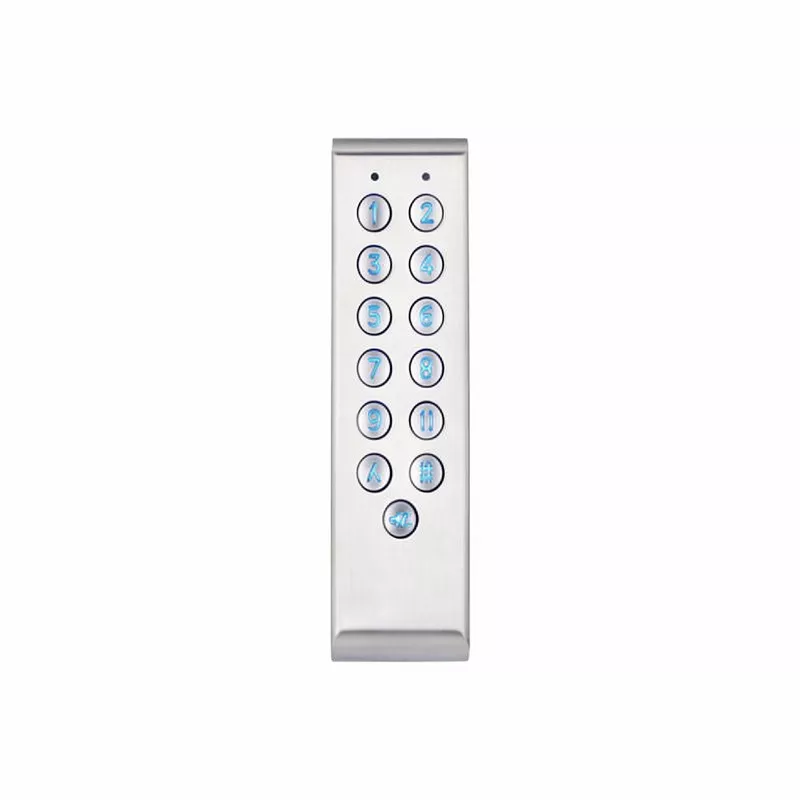

PROFIL100EINT Stainless steel surface mount keypad with self-contained electronics

The PROFIL100E-INT is a surface mount keypad with self-contained electronics. Its narrow-style design makes it ideal for installation in settings where frame space is limited. Soft backlighting assists in low light conditions and robust tamper-resistant screws significantly reduce the risk of vandalism. This keypad is ideal for installation in commercial, public, residential, or industrial buildings.

Key Features:
Narrow-style surface mount keypad with self-contained electronics
Ideal when frame space is limited
Soft blue backlighting for use in low light conditions
Robust stainless steel body with tamper-resistant screws
Up to 100 user codes

Technical specification:
User Limit
Up to 100 user codes
Number of Relays
2x NO/NC relays
Mounting
Surface mount with vandal-resistant Diax® screws
Min Temperature (°C)
-25°C
Max Temperature (°C)
70°C

ELECTRICAL SPECIFICATIONS:
Min. Voltage (V)
12Vac/dc
Max Voltage (V)
24Vac/48Vdc
Voltage AC/DC
AC/DC
Max Power Consumption (mA)
80mA

DIMENSIONS:
Product Height (mm)
165
Product Width (mm)
43
Product Depth (mm)
27
Product Weight (kg)
0.36
