RX26-XPL4V

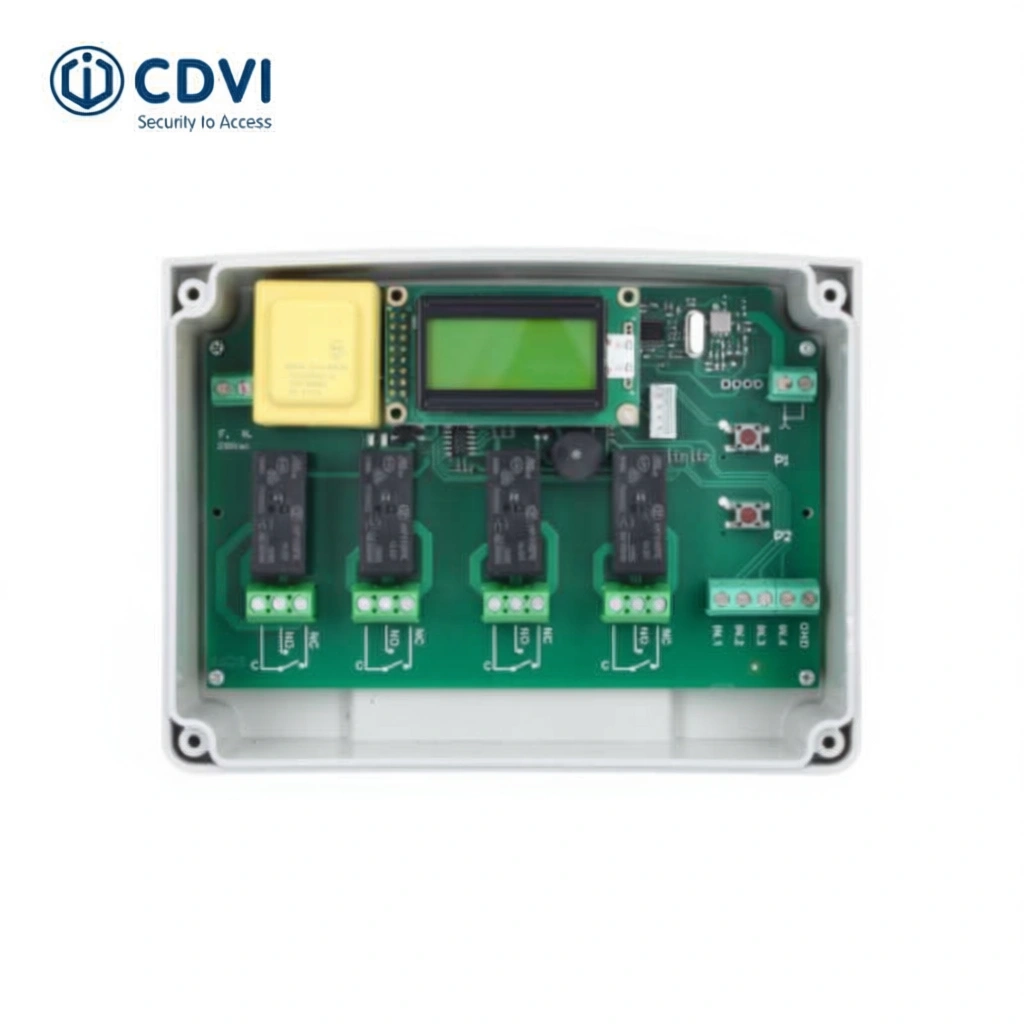

RX26-XPL4V Receiver, 4 relays, 230Vac

This receiver combines simple operation and easy programming with the versatility of an IP55 rated enclosure and memory capacity for up to 500 transmitter channels. This model has four relays that can be individually configured for pulse, timed, or latch modes. To ensure the security of the data being transmitted, it is encoded by KeeLoq® rolling code.

Key features:

4-relay radio frequency receiver
Memory for up to 500 transmitter channels
Transmissions protected by KeeLoq® hopping code
IP55 rated polycarbonate enclosure
Can have reception range enhanced by SEA433 tuned aerial
Also available in 12/24Vac/dc version

TECHNICAL SPECIFICATIONS:

Number of Relays
4
Min Temperature (°C)
-20°C
Max Temperature (°C)
70°C
Frequency
433.92MHz
Modulation
AM/ASK
Encoding
KeeLoq® hopping code
Memory
500 transmitter channels

ELECTRICAL SPECIFICATIONS:

Min. Voltage (V)
230Vac
Max Voltage (V)
230Vac
Voltage AC/DC
AC
Max Power Consumption (mA)
20mA

DIMENSIONS:

Product Height (mm)
155
Product Width (mm)
118
Product Depth (mm)
55
Product Weight (kg)
0.15
