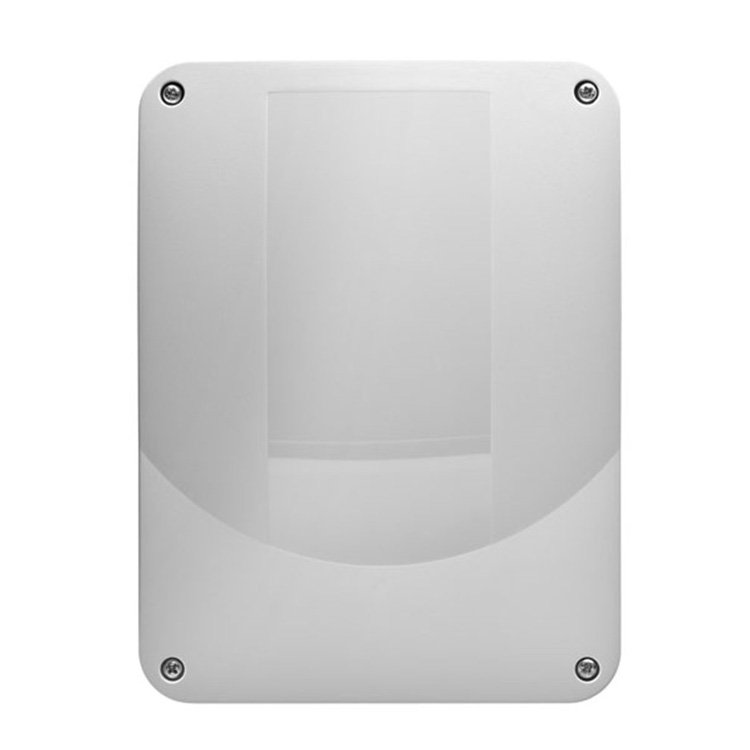

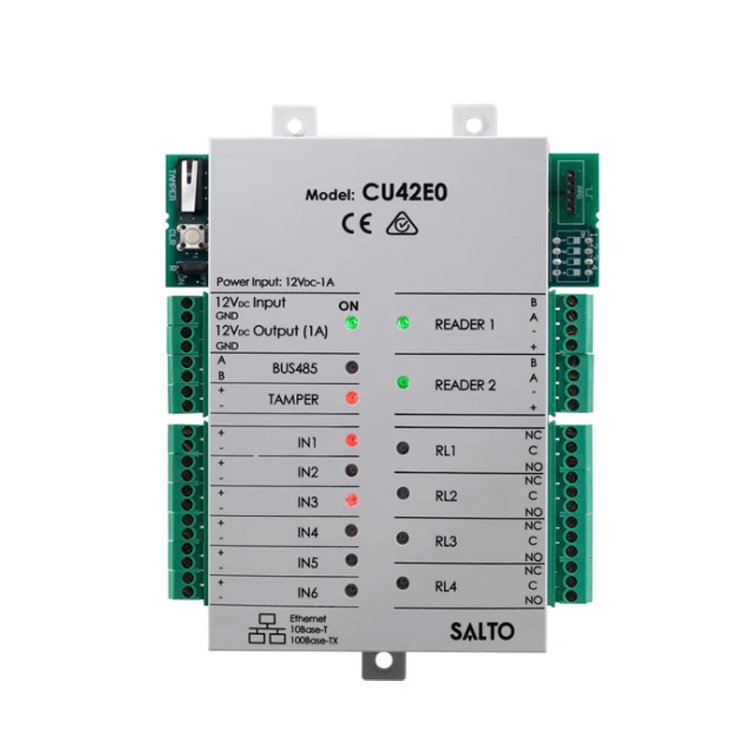

SALTO XS4 2.0 Control Unit - Ethernet with Grey Housing

SALTOs latest Control Unit makes it even easier to bring superior access control to your facility thanks to the ability to control and manage multiple doors through one Ethernet connection and one IP address.

• Online IP based door controller
• Two wall reader connection that can be configured as 2 different doors or one door reader in and reader out locking.
• Antipass-back mode available by connecting 2 wall readers and set up as one door
• 4 relay outputs.
• 6 inputs to connect to: Door detector, request to exit switch (RTE), office switch.
• 2 different tampers: one tamper input and one tamper switch
• Door monitoring and tamper monitoring via contacts input (intrusion alarm and door left opened alarm
• To be used with all SALTO XS4 2.0 Readers (WRDBxxx and WRMBxxx series).
• Virtual network capable through SALTO Virtual Network technology.
• All communications between the carrier and the wall reader are encrypted and secure2.
• The maximum cable length between the door controller and the wall reader is up to 400 meters3.
• Connection to the wall reader using 4 wire connection, twisted pair.
• Power consumption: 12V DC 400mA (without XS4 2.0 readers), supplied by an adaptor. POE version to be released
• Dimensions: 104mm x 131mm x 43,3mm (W x H x D). Weight: 0.5kg.
• Certifications: CE comform, UL 294, FCC certified
