STARPB

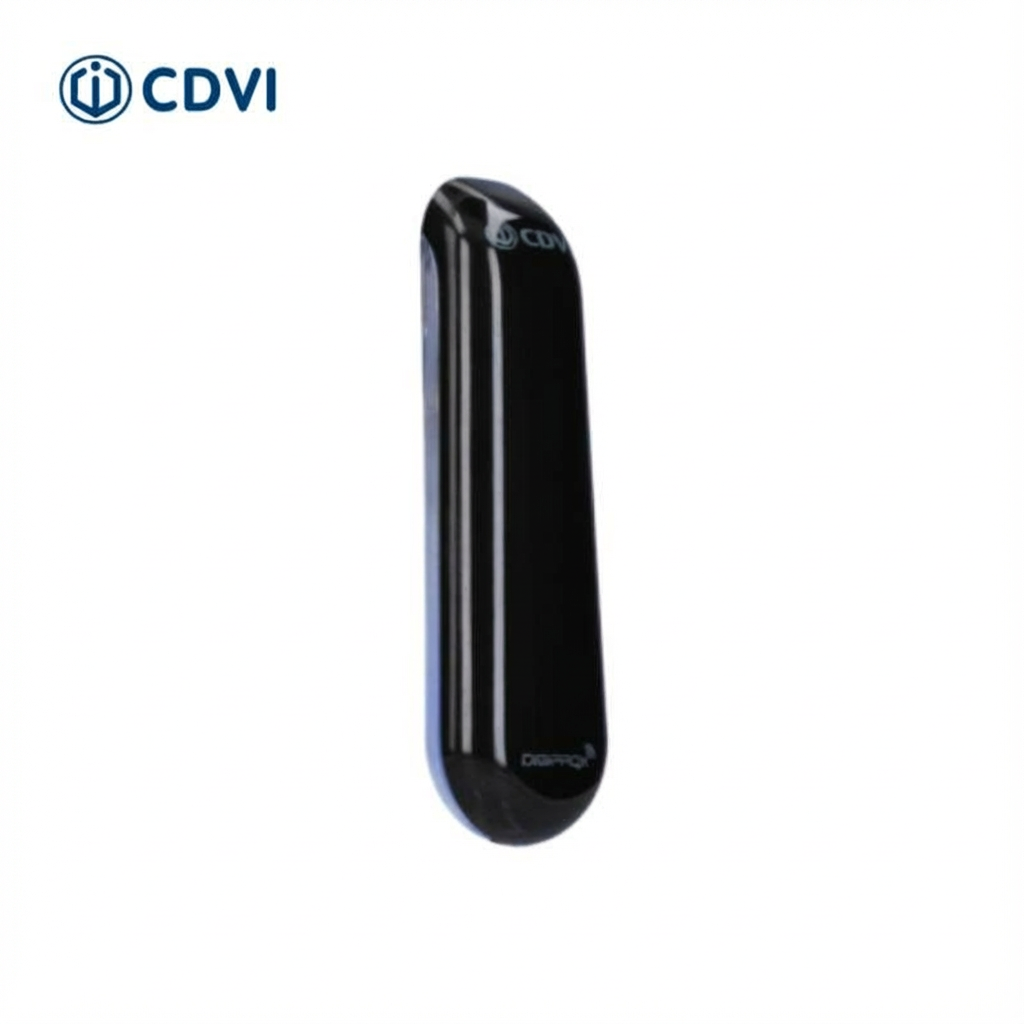

STARPB Narrow style proximity reader

This mullion shaped proximity reader is discreet, stylish, and backed by a unique ten-year warranty. The STAR-PB is specially designed for low power consumption and gives an anytime status of the door using multi-coloured LEDs.

Key features:

Discreet mullion shape
Reflective backlight
Audible and multi-coloured visual feedback
Wiegand 26, 30 or 44 bit output
Low power consumption

TECHNICAL SPECIFICATIONS:

Card / reader technology
Proximity
User Limit
10,000 with ATRIUM A22 controller
Mounting
Surface
Min Temperature (°C)
-25°C
Max Temperature (°C)
70°C
Frequency
125kHz

ELECTRICAL SPECIFICATIONS:

Min. Voltage (V)
12Vdc
Voltage AC/DC
DC
Max Power Consumption (mA)
100mA
Wiring Distance
Max 120m to controller

DIMENSIONS:

Product Height (mm)
130
Product Width (mm)
41
Product Depth (mm)
28
Product Weight (kg)
0.09
