Description
12Vdc 5A switch mode power supplies with battery backup
12Vdc 5A switch mode power supplies with battery backup

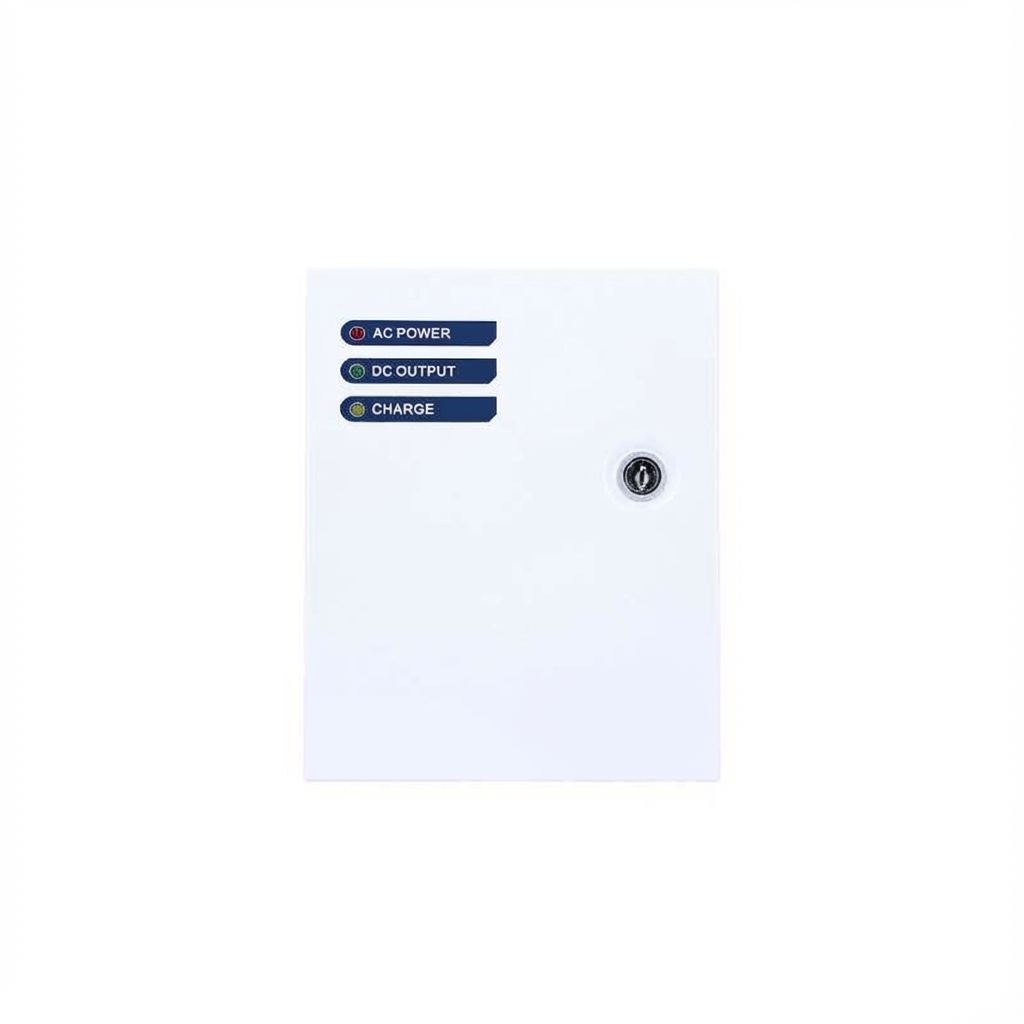

The PSMB125 is a switch mode power supply with a 5A rated current. It is ideal for access control and general applications requiring standby battery capability. This unit has a regulated, highly stable output supplying full rated current to load and a universal mains voltage input range (190 to 265Vac).
Key features:
LED status indicator .
Additional battery backup charging circuit (B7.5 battery).
Built-in short circuit protection .
Sturdy lockable metal case .
5A power supply.
TECHNICAL SPECIFICATIONS:
Mounting > Surface
Min Temperature > -30°C
Max Temperature > 80°C
ELECTRICAL SPECIFICATIONS:
Min. Voltage 190Vac
Max Voltage 265Vac
Voltage AC input, DC output
Max Power Consumption (mA) 13.8Vdc output
Current 5A
Battery included 7AH rechargeable backup battery
DIMENSIONS:
Product Height (mm)265
Product Width (mm)193
Product Depth (mm)75
Product Weight (kg)0.94kg
