Description

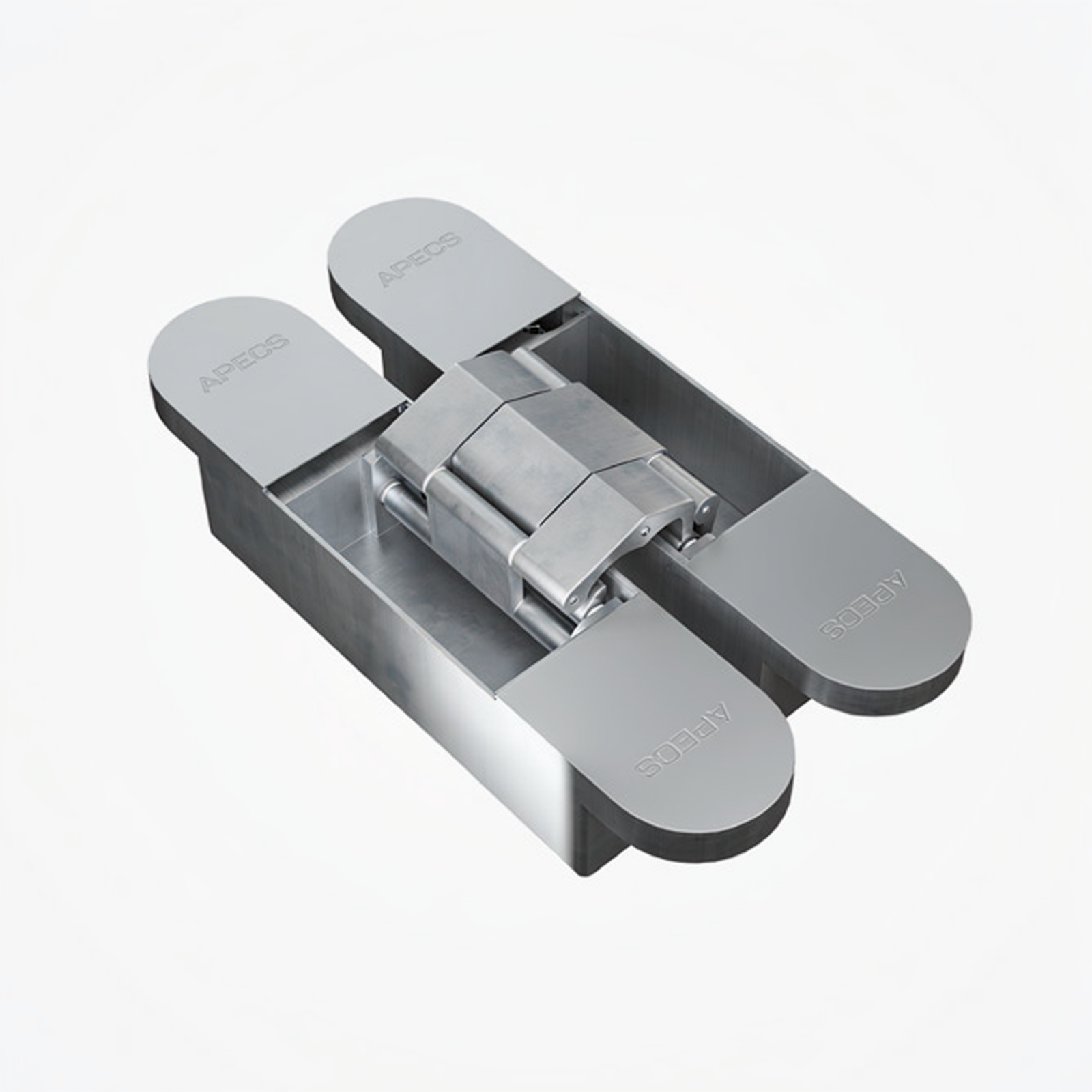

APECS 3D 60 Concealed Hinges
(Pair)
APECS 3D 60 concealed hinges can be mounted on doors unobtrusively.
3D 60 incorporates security in their design as there are no external components visible or vulnerable to attack.
A pair of these concealed hinges is ideal for flush faced or wooden doors up to 60kg in commercial and residential buildings.
Concealed hinges are fully 3D adjustable and come with smooth removable covers.
Unique Features:
Comes as a set of two.
3D adjustable.
Removable covers.
Maximum door load 60kg.
Material: Zinc Alloy.

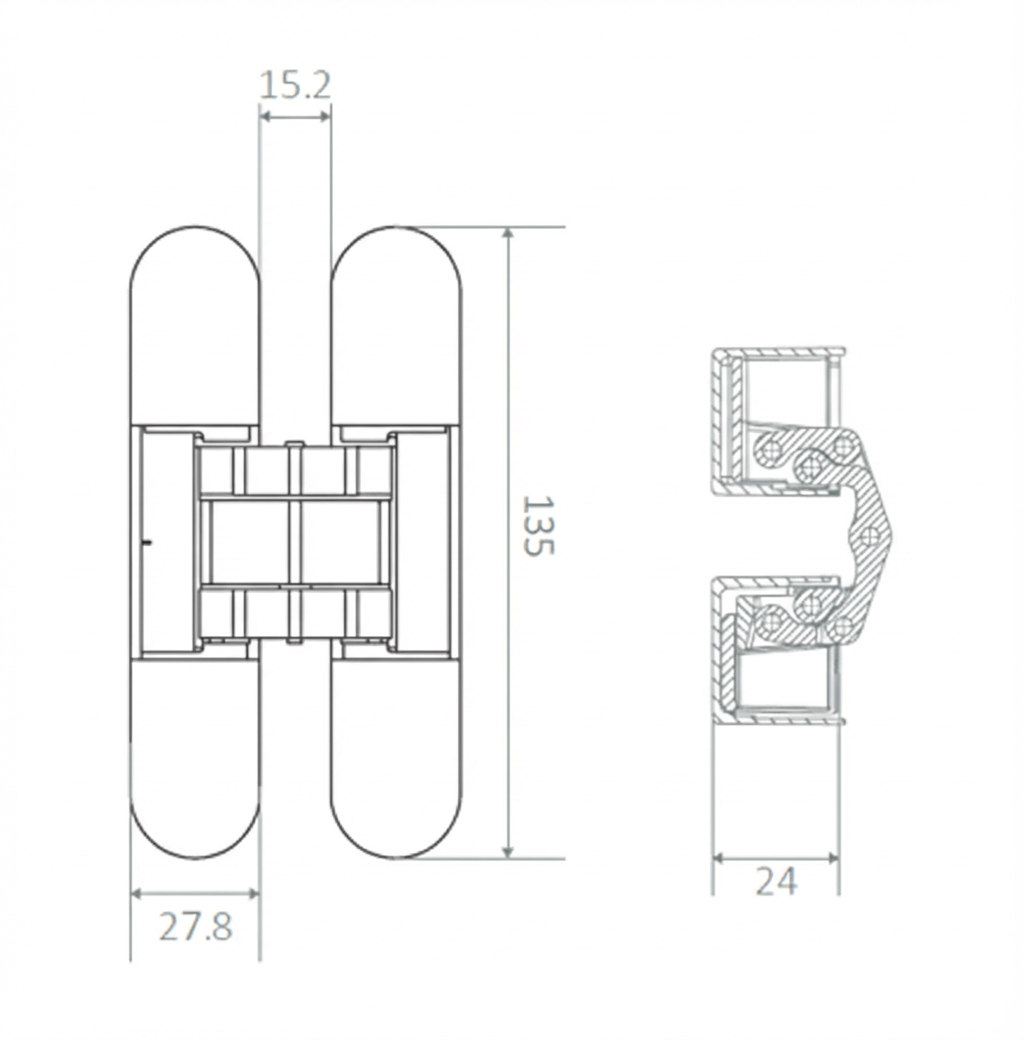

Height: 135mm.
Depth: 25mm.
3D Adjustment Vertical: ±2.5mm.
3D Adjustment Horizontal: ±2mm.
3D Adjustable Depth: ±1mm.
Opening Angle: 180°.
Cutting Diameter: 28.5mm.
Cutting Length: 135.5mm / 92.5mm.
Cutting Depth: 8.5mm / 25.5mm.
Max Door Weigth (for a pair) 60kg.
Min Door Thickness: 36mm.
Max Door Width: 900mm.
Max Door Height: 2100mm.
Finish: Matt Chrome.
