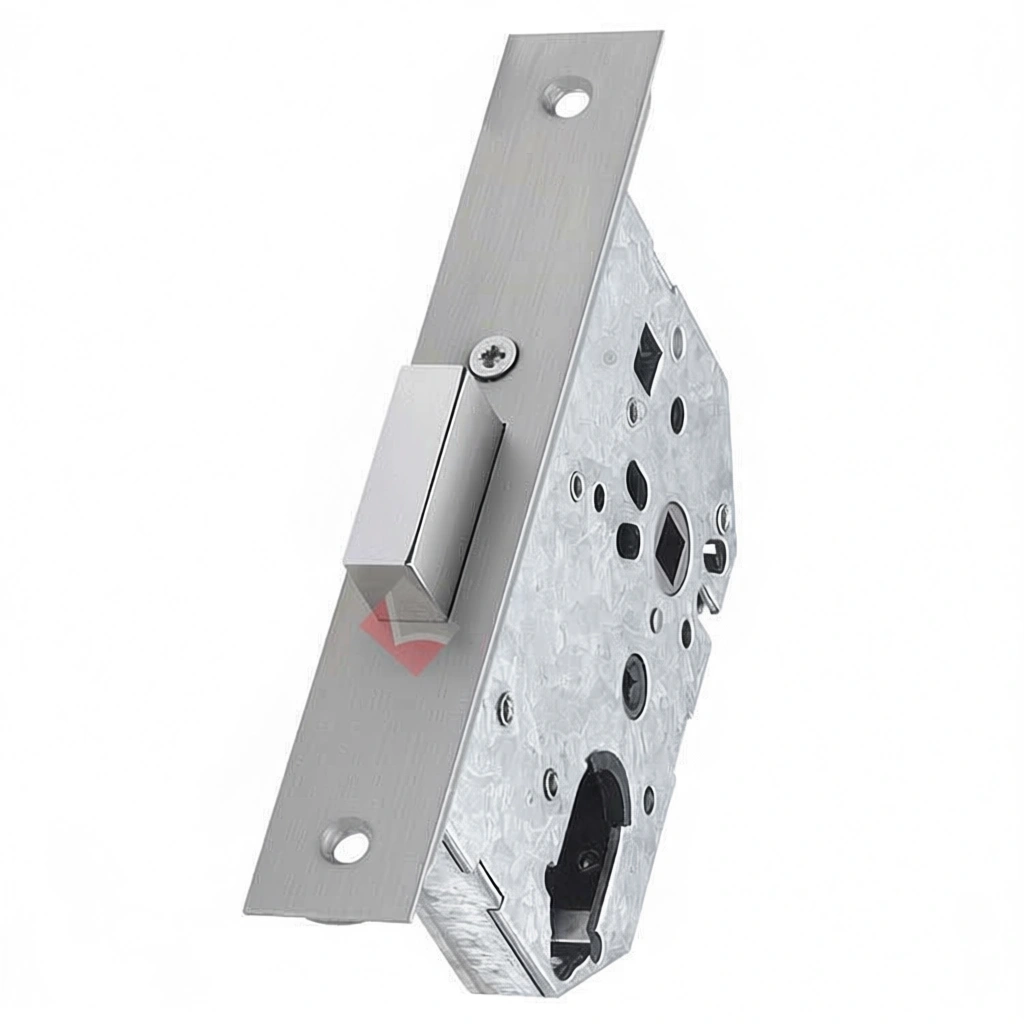

ASSA 3069 Compact Escape Deadlock

Application

• Escape deadlocks combine high security with ease of escape in an emergency and are ideal for perimeter doors in commercial premises.
• 3069 available with a double cylinder and 3069B available with single cylinder only. Uses either Euro or UK Oval profile cylinders.
• Supplied as standard with a security box striking plate. Both square and rounded faceplates are available as standard.
• 3069B lockcase must be used with a double action handle eg. ASSA 3350.

Specification

• Hardened steel deadbolt thrown 16mm by 360° turn of key.
• May be withdrawn by lever handle.

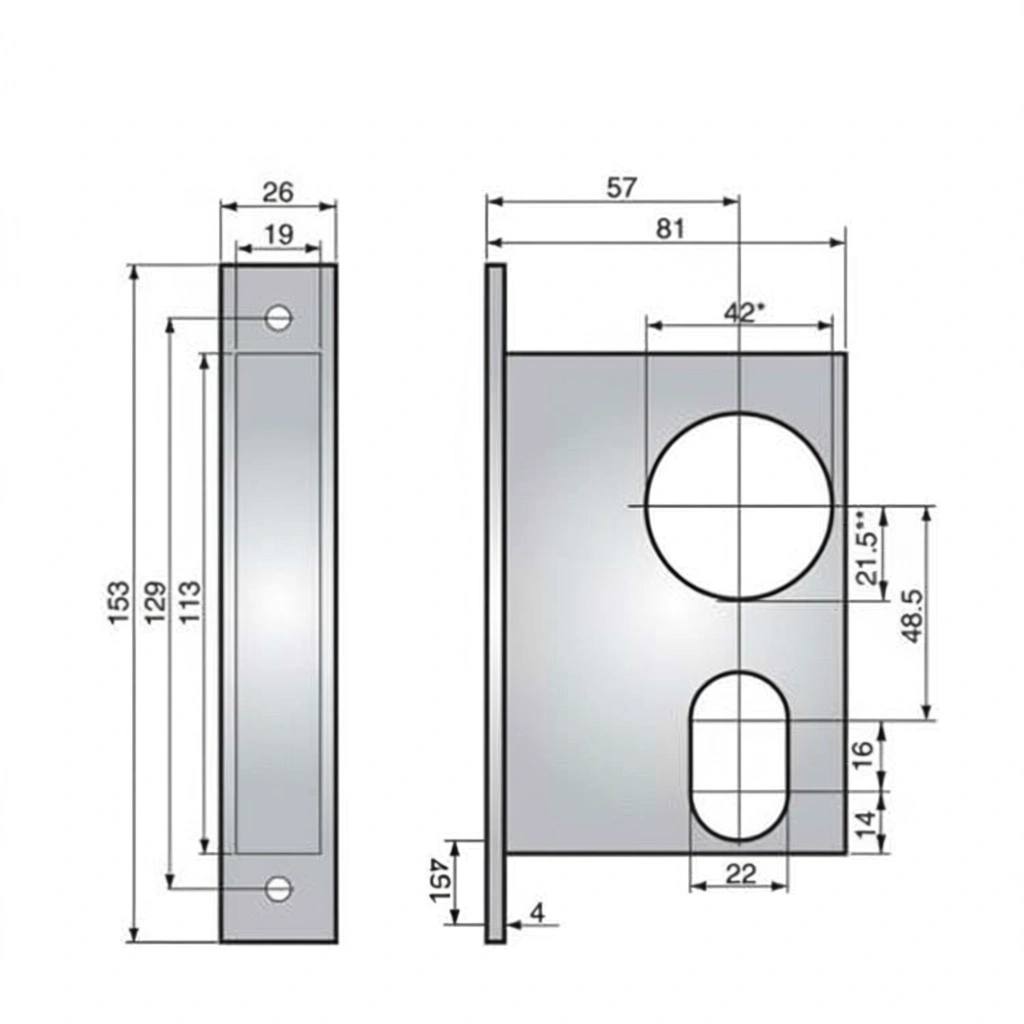

• Available with 57mm backset.
