BO800RN

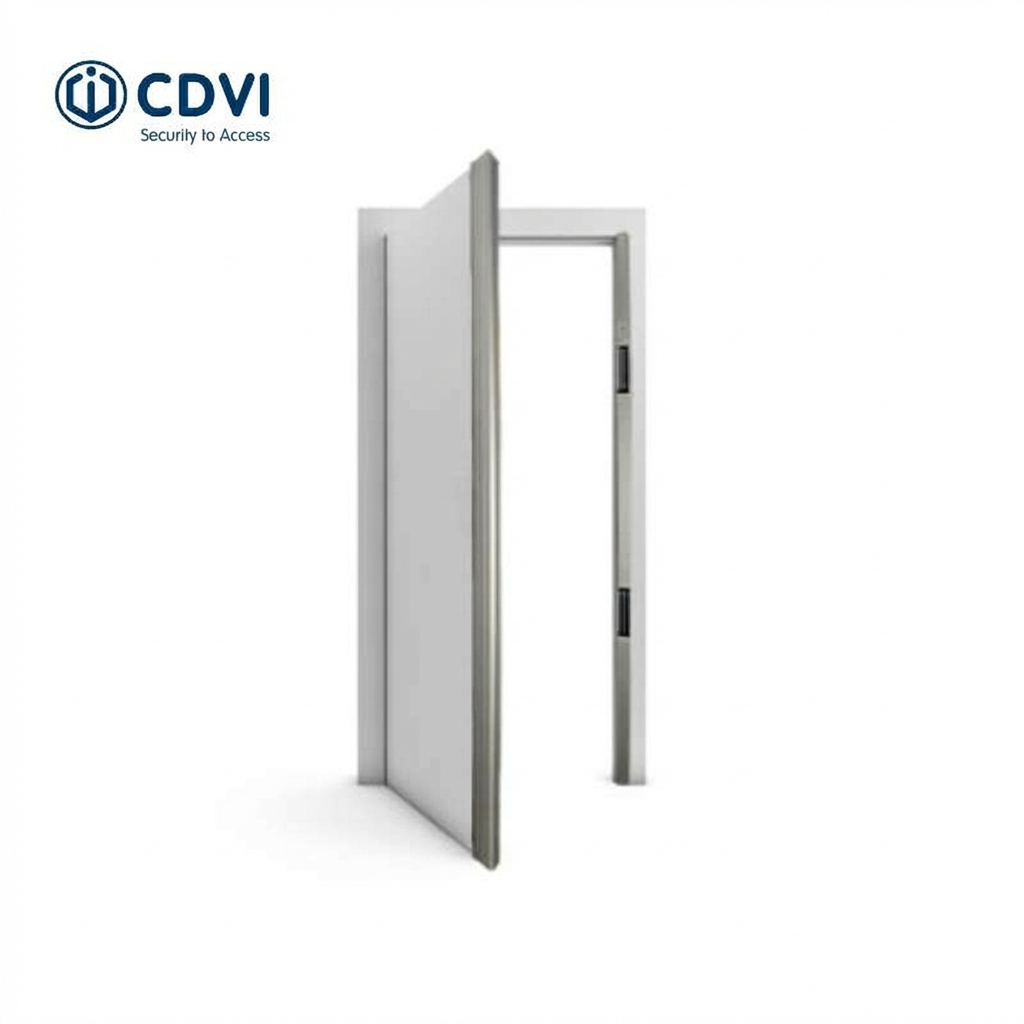

BO800RN Architectural handle, 2x400kg monitored magnets.

Magnetic pull handles are becoming increasingly popular with sites that require a combination of strong holding force and an aesthetic finish. Ideal for high traffic zones such as schools or public buildings, the handles can be fitted to either new or existing doors. The BO800RN is a 2.5m or 3m handle with two 400kg monitored magnets.

Because every door is different, the handle can be cut down to custom size (minimum 1.2m) and bespoke RAL colours are available.

Key features:
Architectural pull handle with 2x400kg monitored magnets
Fit to new doors or retrofit to existing doors
Ideal for high traffic sites that need high holding force and an aesthetic finish
Can be cut down to bespoke size and sprayed in custom RAL colour
Suitable for wooden, metal, or glass doors
Optional mimic handle section for reverse side of door – for a neater finish

TECHNICAL SPECIFICATIONS:
Mounting: Surface

ELECTRICAL SPECIFICATIONS:
Min. Voltage (V)
12Vdc
Max Voltage (V)
24Vdc
Voltage AC/DC
DC
Max Power Consumption (mA)
480 @ 12Vdc / 240 @24Vdc

DIMENSIONS:
Product Height (mm)
2500/3000
Product Width (mm)
136
Product Depth (mm)
68
Product Weight (kg)
13/17
