BO900RP

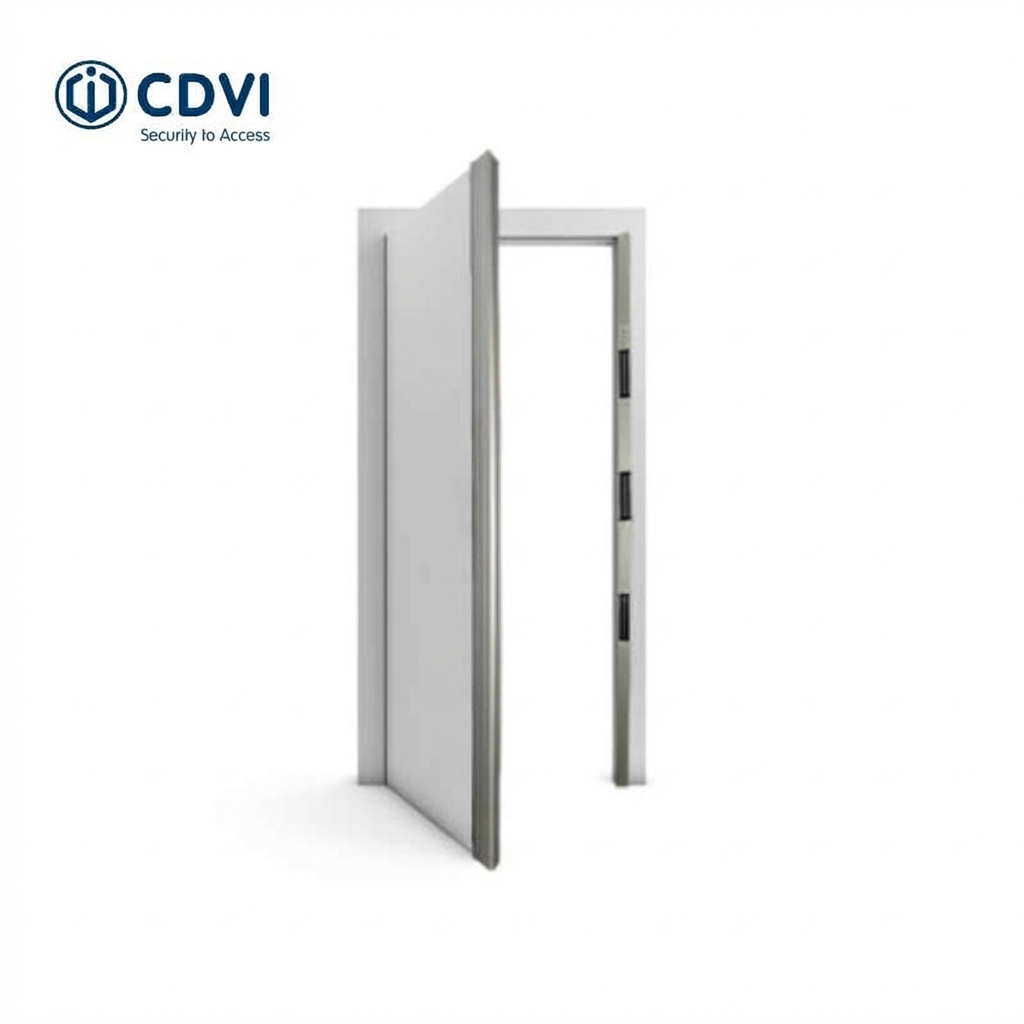

BO900RP Architectural handle, 3x300kg monitored magnets, 2500mm

Magnetic pull handles are becoming increasingly popular with sites that require a combination of strong holding force and an aesthetic finish. Ideal for high traffic zones such as schools or public buildings, the handles can be fitted to either new or existing doors. The BO900RP is a 2.5m handle with three 300kg monitored magnets. With the holding force of the locks spread evenly along the length of the handle, the risk of door flexing is significantly reduced.

Because every door is different, the handle can be cut down to custom size (minimum 1.2m) and bespoke RAL colours are available.

Key features:
Architectural pull handle with 3x300kg monitored magnets
Fit to new doors or retrofit to existing doors
Ideal for high traffic sites that need high holding force and an aesthetic finish
Can be cut down to bespoke size and sprayed in custom RAL colour
Suitable for wooden, metal, or glass doors
Optional mimic handle section for reverse side of door – for a neater finish
To keep cables hidden, try the REOMA spacer and cable tray set

TECHNICAL SPECIFICATIONS:
Fail safe
Mounting: Surface
Min Temperature (°C)
-20°C
Max Temperature (°C)
70°C

ELECTRICAL SPECIFICATIONS:
Min. Voltage (V)
12Vdc
Max Voltage (V)
24Vdc
Voltage AC/DC
DC
Max Power Consumption (mA)
@12Vdc = 550mA / @24Vdc = 275mA

DIMENSIONS:
Product Height (mm)
2500
Product Width (mm)
105
Product Depth (mm)
63
Product Weight (kg)
13kg
