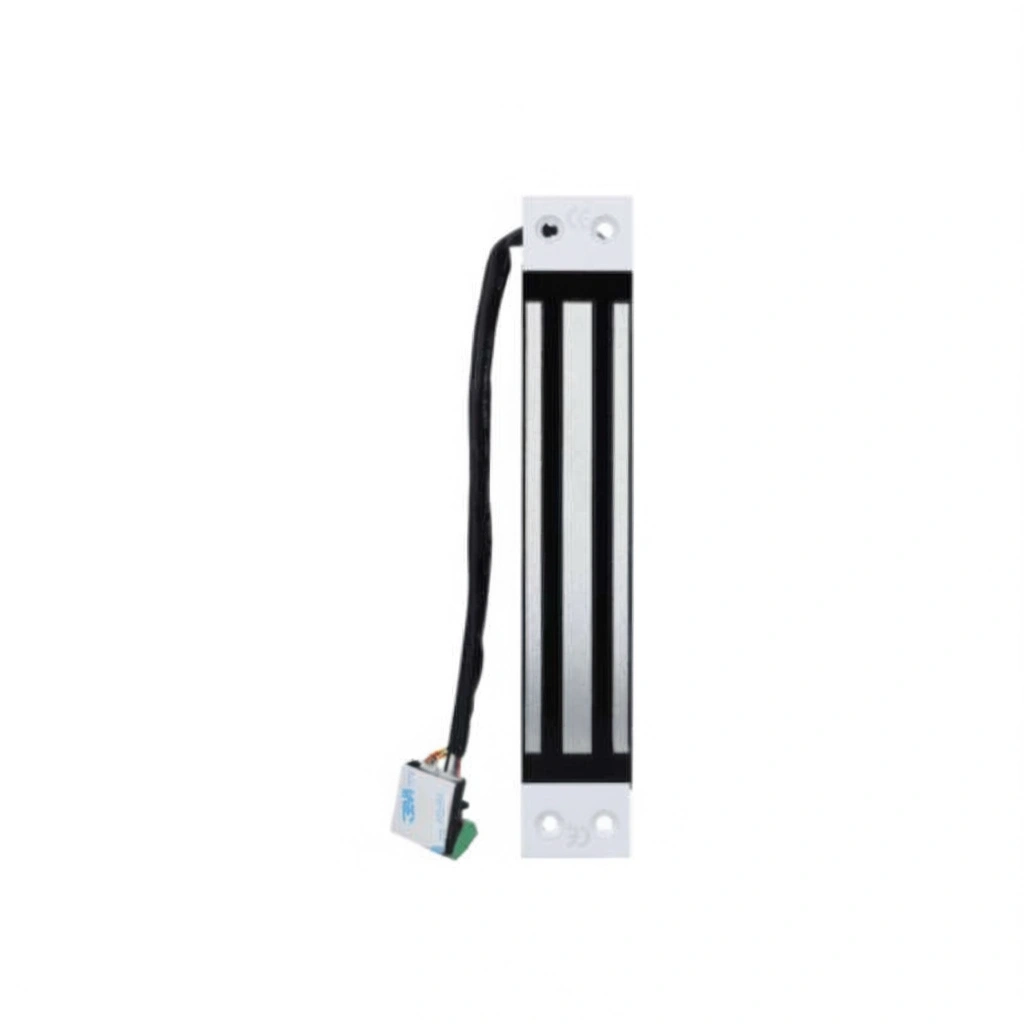

C3M11 Entry level mortice 300kg magnetic lock
C3M11 Entry level mortice 300kg magnetic lock
High performance magnetic locking at a cost-effective price. The C3M11 is a mortice maglock which provides up to 300kg of holding force. The magnet comes with its armature plate, fixing kit, and full fitting instructions. Fully compatible with CDVI brackets, housings, and accessories, the C3M11 is a flexible and robust locking solution for a wide range of projects.
Key features:
Up to 300kg holding force.
Cost-effective monitored magnetic lock.
No moving parts – simple to install and maintain.
Mortice mount for a neat aesthetic finish.
TECHNICAL SPECIFICATIONS:
Number of Relays: 1 – lock status monitoring
Fail safe.
Mounting: Mortice.
Min Temperature (°C) -40°C.
Max Temperature (°C) 60°C.
ELECTRICAL SPECIFICATIONS:
Min. Voltage (V) 12Vdc
Max Voltage (V) 24Vdc
Voltage AC/DC: DC
Max Power Consumption (mA): 550mA @12Vdc / 275mA @24Vdc
DIMENSIONS:
Product Height (mm)
228
Product Width (mm)
38
Product Depth (mm)
27
Armature Plate Dimensions (LxWxH)
185 / 38 / 11mm armature plate
Product Weight (kg)
1.75
