Description
C3S11

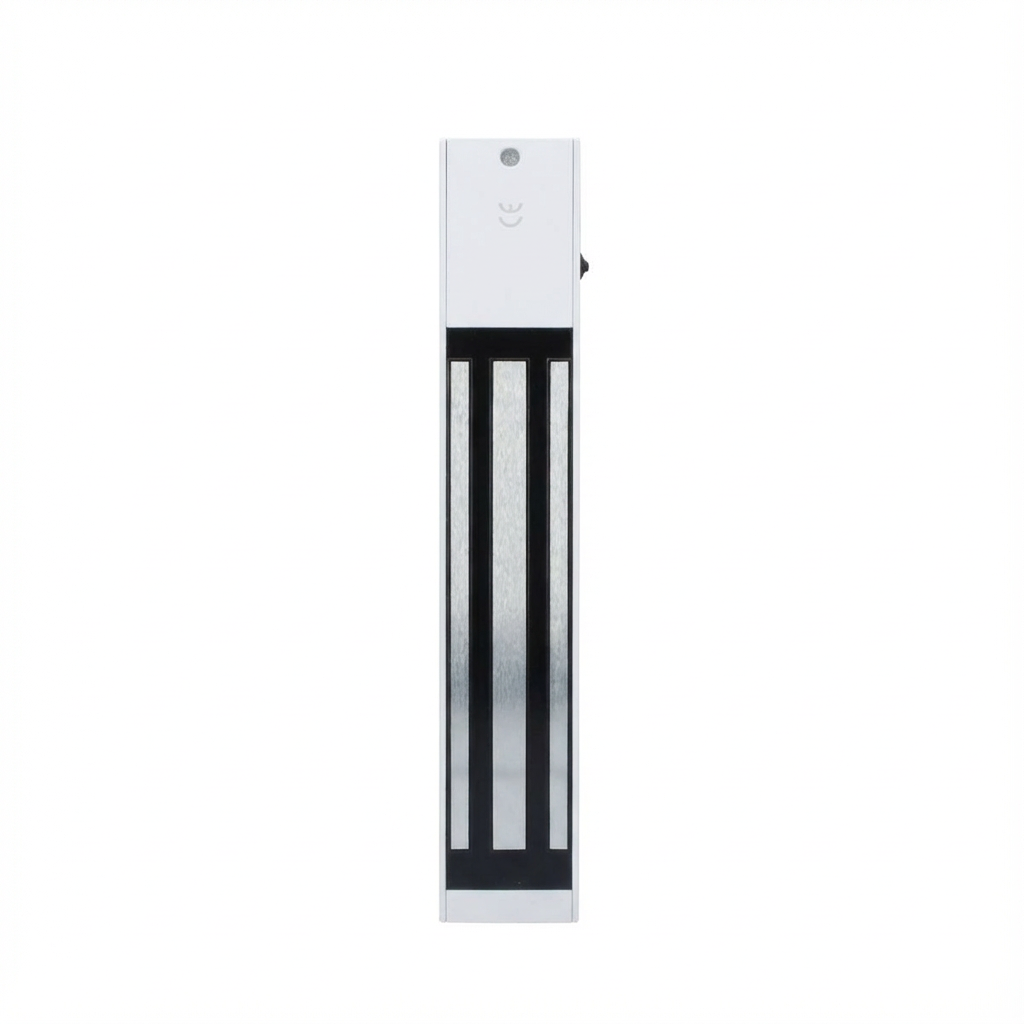

C3S11 Entry level surface 300kg magnetic lock, monitored
High performance magnetic locking at a cost-effective price. The C3S11 is a surface maglock which provides up to 300kg of holding force. The magnet comes with its armature plate, fixing kit, and full fitting instructions. Fully compatible with CDVI brackets, housings, and accessories, the C3S11 is a flexible and robust locking solution for a wide range of projects.
Key features:
Up to 300kg holding force
Fire rated: EN1634-1 & 2 for 30 min
Cost-effective monitored magnetic lock
No moving parts – simple to install and maintain
Simple surface mount
Double version available – see C3S12
TECHNICAL SPECIFICATIONS:
Number of Relays: 1 – lock status monitoring
Fail safe
Mounting: Surface
Min Temperature (°C)
-20°C
Max Temperature (°C)
60°C
ELECTRICAL SPECIFICATIONS:
Min. Voltage (V)
12Vdc
Max Voltage (V)
24Vdc
Voltage AC/DC
DC
Max Power Consumption (mA)
480mA @12Vdc / 240mA @24Vdc
DIMENSIONS:
Product Height (mm)
250
Product Width (mm)
43
Product Depth (mm)
27
Armature Plate Dimensions (LxWxH)
185 x 38 x 11mm
Product Weight (kg)
1.75
AT-H HOUSINGS AVAILABLE
