C5S11 Entry level surface 500kg magnetic lock, monitored

Description

C5S11

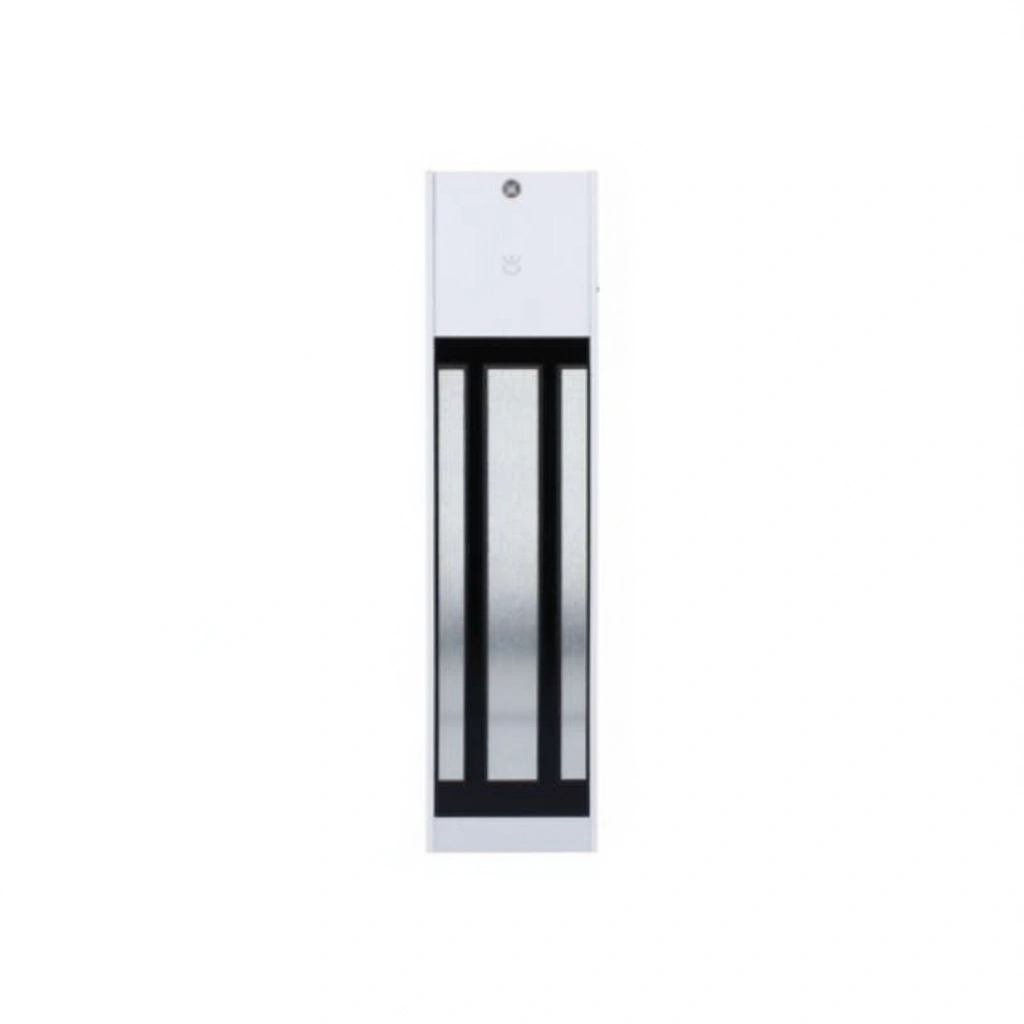

C5S11 Entry level surface 500kg magnetic lock, monitored.

High performance magnetic locking at a cost-effective price. The C5S11 is a surface maglock which provides up to 500kg of holding force. The magnet comes with its armature plate, fixing kit, and full fitting instructions. Fully compatible with CDVI brackets, housings, and accessories, the C5S11 is a flexible and robust locking solution for a wide range of projects.

Key features:
Up to 500kg holding force
Fire rated: EN1634-1 & 2 for 30 min
Cost-effective monitored magnetic lock
No moving parts – simple to install and maintain
Simple surface mount
Double version available – see C5S12

TECHNICAL SPECIFICATIONS:
Fail safe
Mounting: Surface
Min Temperature (°C)
-20°C
Max Temperature (°C)
60°C

ELECTRICAL SPECIFICATIONS:
Min. Voltage (V)
12Vdc
Max Voltage (V)
24Vdc
Voltage AC/DC
DC
Max Power Consumption (mA)
500mA @12Vdc / 250mA @24Vdc

DIMENSIONS:
Product Height (mm)
275
Product Width (mm)
65
Product Depth (mm)
40
Armature Plate Dimensions (LxWxH)
185 x 60 x 12mm
Product Weight (kg)
4.2kg
