CDV-47

CDV-47 2EASY 2-Wire standard monitor

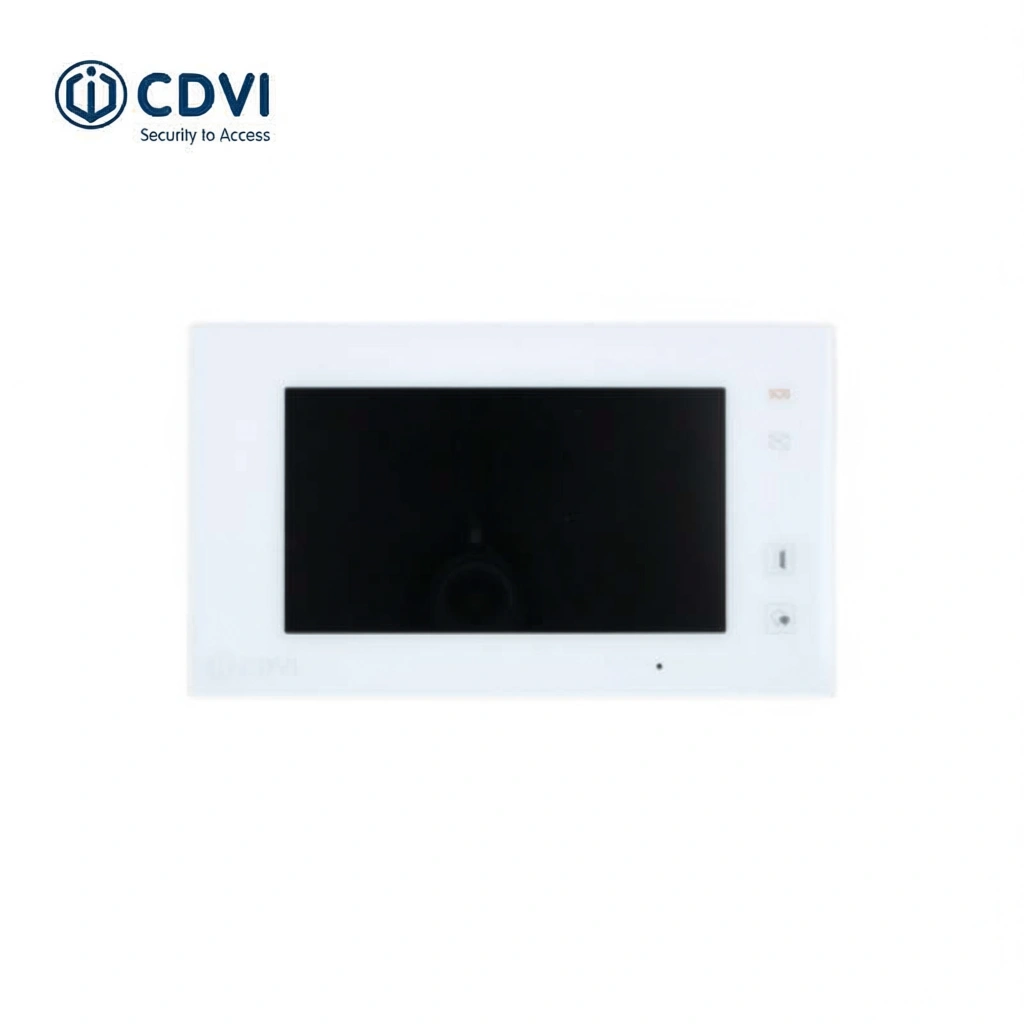

The CDV-47 is a 2-wire, 7-inch digital colour, TFT monitor with touch screen and picture/video memory. The 2EASY 2-wire system is designed to be quick to install, simple to operate, and easy to maintain. Ideal for single residential homes or apartment blocks with up to 128 internal monitors, 2EASY is a reliable home security solution.

Key features:
Slim 7″ black TFT-digital monitor.
Touch screen technology.
2-wire non polarised connection.
Built-in picture/video memory, provision for an SD card.

TECHNICAL SPECIFICATIONS:
Mounting: Surface.
Resolution: 800 x 480 pixels.
Screen size: 7 inches.
Video Signal: 1 Vp-p, 75 Ohms, CCIR standard.
Memory: 32GB through SD Card (not supplied).
Recommended Mounting Height: 145 to 160cm.

ELECTRICAL SPECIFICATIONS:
Min. Voltage (V)
20Vdc
Max Voltage (V)
28Vdc
Voltage AC/DC
DC
Wiring Distance
Max 120m (2 monitors) or 60m (4 monitors) to power supply
Cable type
2-wire, no polarity, Recommended cable: 16AWG, Belden 8471

DIMENSIONS:
Product Height (mm)
131
Product Width (mm)
226
Product Depth (mm)
18
Product Weight (kg)
0.55
