CDV-96KP 2EASY 2-Wire stainless steel door station with built-in keypad

Description

CDV-96KP

CDV-96KP 2EASY 2-Wire stainless steel door station with built-in keypad

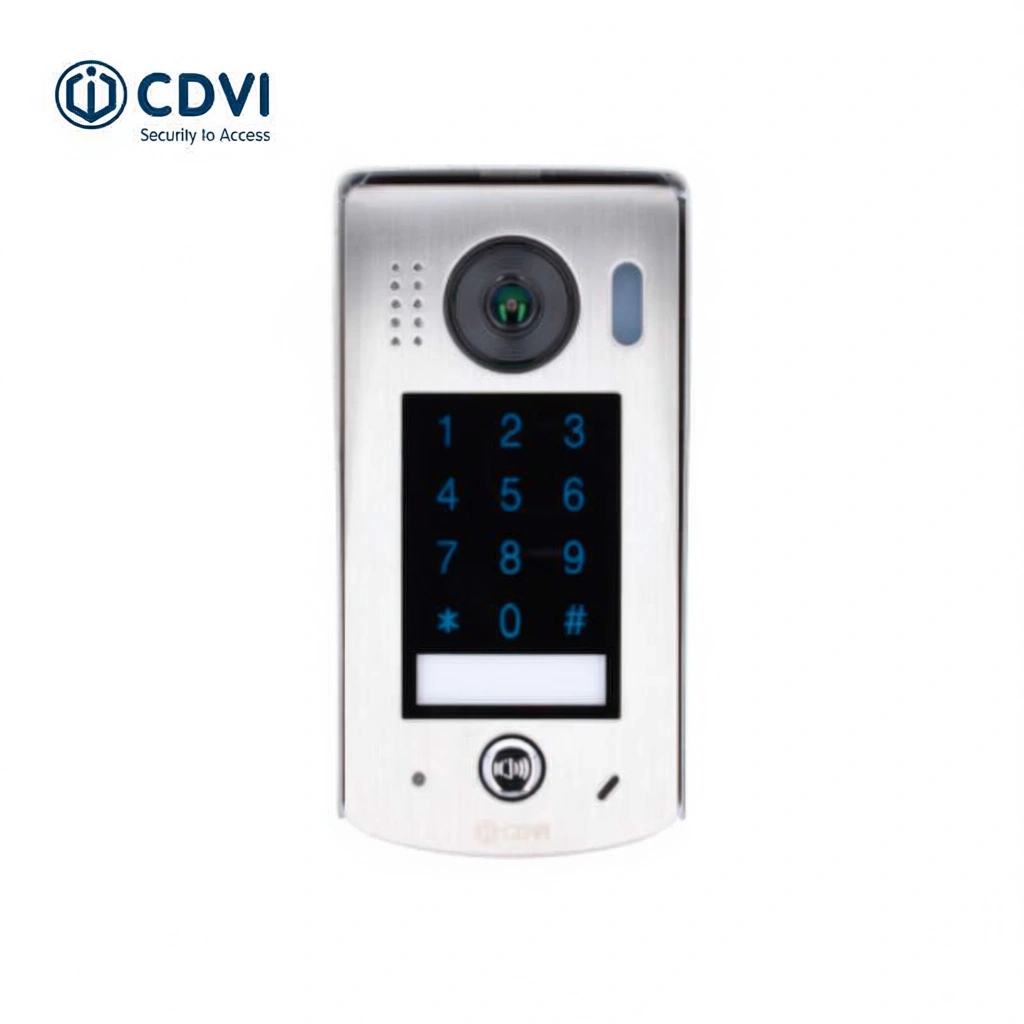

This robust stainless steel door station comes with a single call button and a built-in touch-sensitive keypad. With a built-in camera, speaker, and microphone, the CDV-96KP provides a sleek and friendly welcome for your building entrance.

Key features:
Single-button external door station with touch-sensitive keypad
170º fisheye camera
Built-in speaker and microphone
Compatible with all 2EASY 2-Wire products
Adjustable unlocking time (1.0-9.0 sec)

TECHNICAL SPECIFICATIONS:
User Limit
Up to 4 monitors (1 x CDV-47DX and 3 x CDV-47)
Number of Relays
1 relay (2 lock outputs with CDV-RLC)
Mounting
Surface
Min Temperature (°C)
-15°C
Max Temperature (°C)
55°C

ELECTRICAL SPECIFICATIONS:
Max Voltage (V)
24Vdc
Voltage AC/DC
DC
Max Power Consumption (mA)
105mA
Lock Output
1 x 12V strike
Wiring Distance
Max 80m to power supply
Cable type
2-wire, no polarity, Recommended cable: 16AWG, Belden 8471

DIMENSIONS:
Product Height (mm)
182
Product Width (mm)
93
Product Depth (mm)
44
Product Weight (kg)
0.68
