CDV-971ID

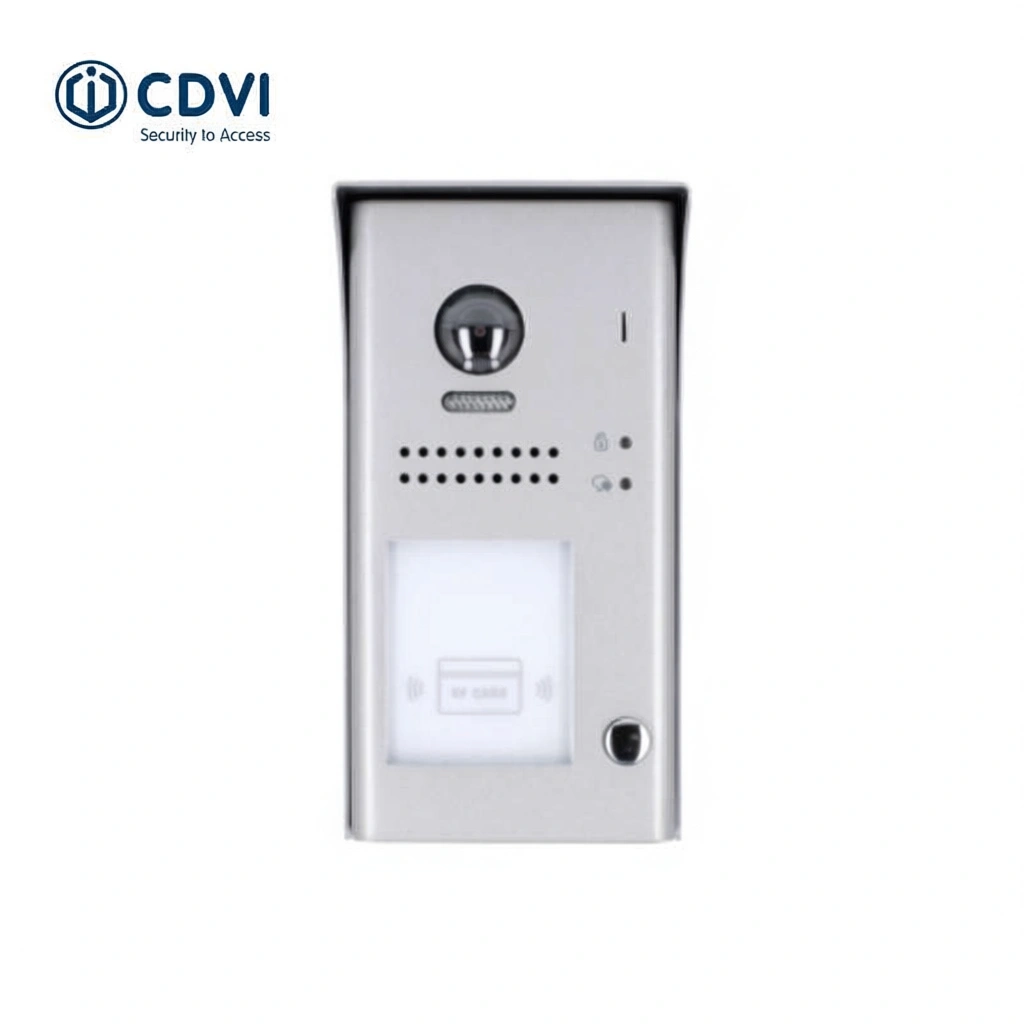

CDV-971ID 2EASY 2-Wire door station, 1 button, with built-in proximity reader

Traditional one-way video door station with built-in proximity reader and 2 megapixel 170-degree colour camera. The CDV-971ID comes with a single call button and is ideal for single-home residential installations.

Key features:
1 call button
170º colour camera
Built-in proximity reader
Low-profile surface mount
Simple 2-wire configuration

TECHNICAL SPECIFICATIONS:
Card / reader technology
Proximity
User Limit
Up to 4 monitors (1 x CDV-47DX and 3 x CDV-47)
Number of Relays
2 (the second lock output requires the CDV-RLC module)
Mounting
Surface
Min Temperature (°C)
-20°C
Max Temperature (°C)
55°C

ELECTRICAL SPECIFICATIONS:
Max Voltage (V)
24Vdc
Voltage AC/DC
DC
Max Power Consumption (mA)
800mA in standby, 3W in operation
Lock Output
1 x 12V strike
Wiring Distance
Max 80m to power supply
Cable type
2-wire, no polarity, Recommended cable: 16AWG, Belden 8471

DIMENSIONS:
Product Height (mm)
176
Product Width (mm)
90
Product Depth (mm)
27
Product Weight (kg)
0.68
