CDV-978ID

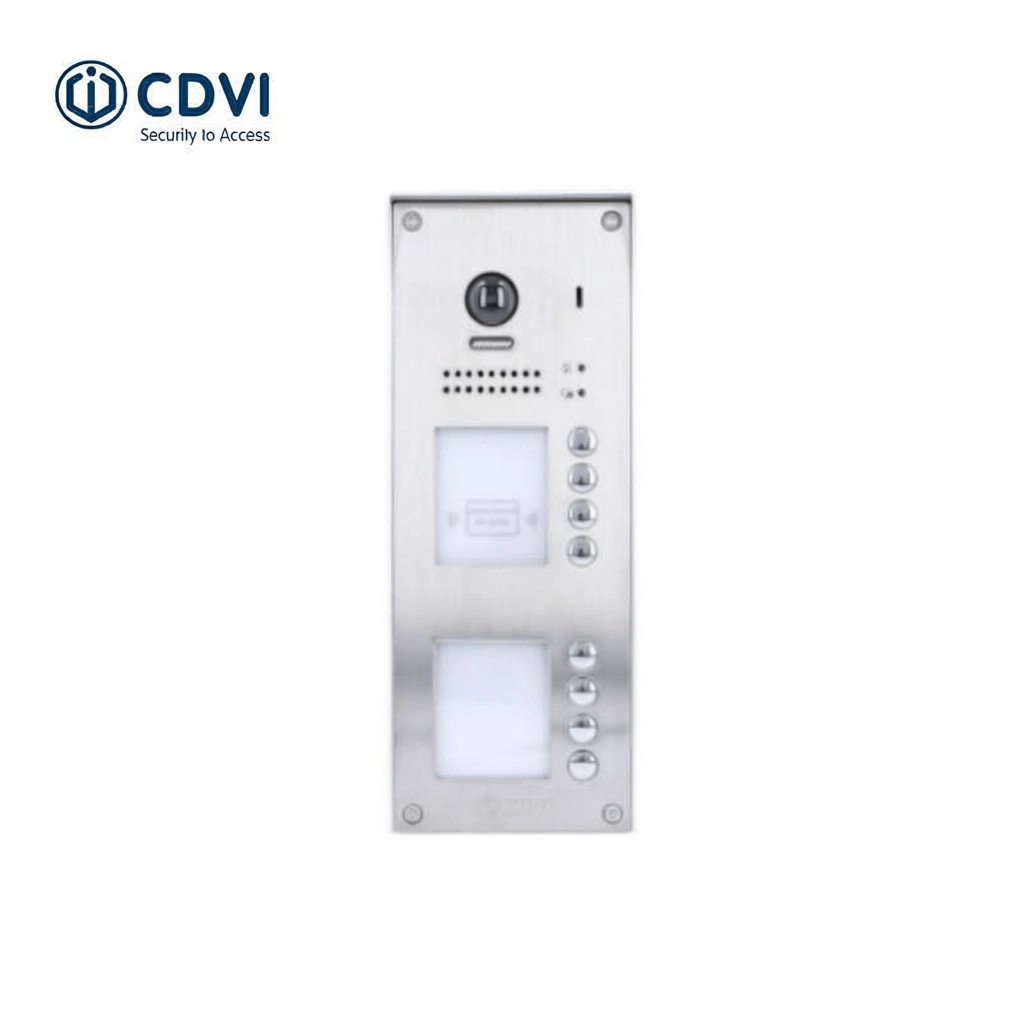

CDV-978ID 2EASY 2-Wire door station, 8 buttons, built-in proximity reader

Traditional eight-way video door station with built-in proximity reader and 2 megapixel 170-degree colour camera. The CDV-979ID comes with eight call buttons and is ideal for residential installations with eight homes/apartments.

Key features:
8 call buttons
170º colour camera
Built-in proximity reader
Low-profile surface mount
Simple 2-wire configuration

TECHNICAL SPECIFICATIONS:
Card / reader technology
Proximity
User Limit
Up to 4 monitors per flat (1 x CDV-47DX and 3 x CDV-47)
Number of Relays
1 (2 lock outputs when used with CDV-RLC module)
Mounting
Surface
Min Temperature (°C)
-20°C
Max Temperature (°C)
55°C

ELECTRICAL SPECIFICATIONS:
Max Voltage (V)
24Vdc
Voltage AC/DC
DC
Max Power Consumption (mA)
800mA in standby, 3W in operation
Lock Output
1 x 12V strike
Wiring Distance
Max 80m to power supply
Cable type
2-wire, no polarity, Recommended cable: 16AWG, Belden 8471

DIMENSIONS:
Product Height (mm)
280
Product Width (mm)
110
Product Depth (mm)
44
Product Weight (kg)
0.71
