CZ3000

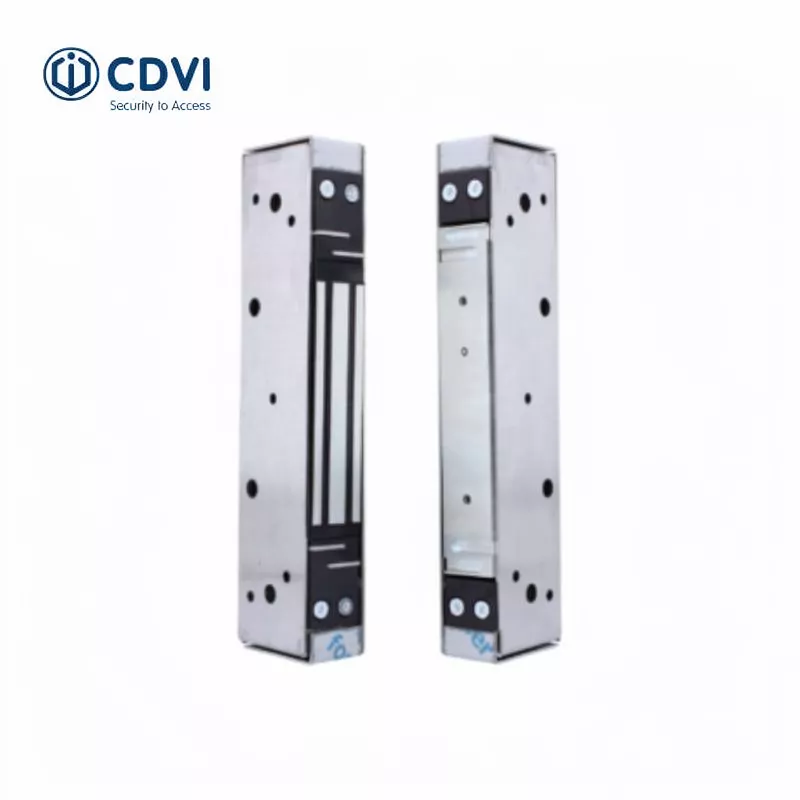

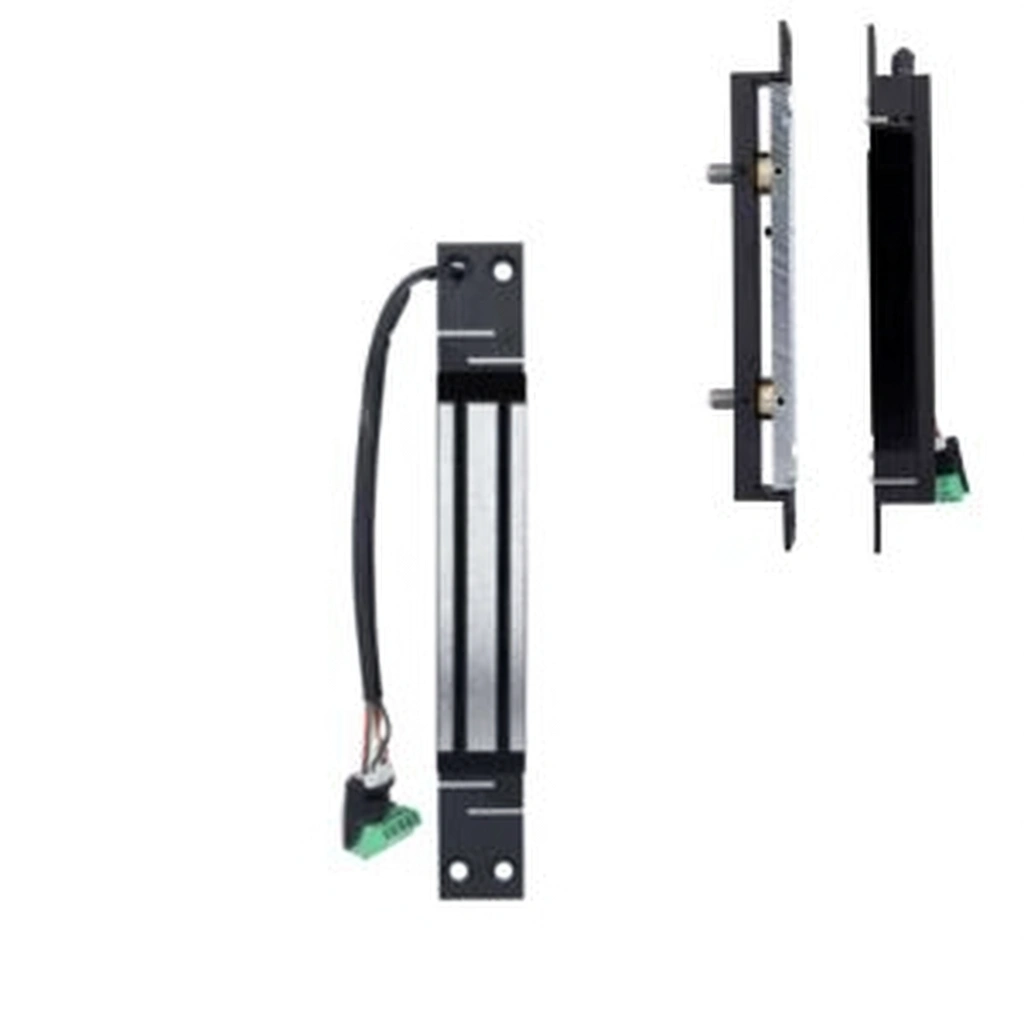

CZ3000 Flush mount 1500kg self-aligning shearlock

The CSL-30 is a self-aligning shearlock which is ideal for doors which do not always rest at the same position. The construction of the CSL-30 makes it suitable for aluminium and wooden doors with a narrow transom. The lock is only 31.5mm wide and benefits from patented self-aligning steel bars. With a holding force of 1500kg and a built-in MOV to prevent back-EMF, this is a secure and robust locking solution.

Key features:
1500kg holding force – a robust locking solution
Fail safe with status monitoring
Flush mount (surface housing available)
Built-in electronic protection with an MOV
Self-aligning technology – in case doors don’t always rest in the same position

Technical specifications:
Fail safe
Mounting: Mortice
Min Temperature (°C)
-40°C
Max Temperature (°C)
60°C

ELECTRICAL SPECIFICATIONS:
Min. Voltage (V)
12Vdc
Max Voltage (V)
24Vdc
Voltage AC/DC
DC
Max Power Consumption (mA)
450mA

DIMENSIONS:
Product Height (mm): 230
Product Width (mm): 31.5
Product Depth (mm): 37
Armature Plate Dimensions (LxWxH): 230 / 30 / 37mm
Product Weight (kg): 1.2
