DGA

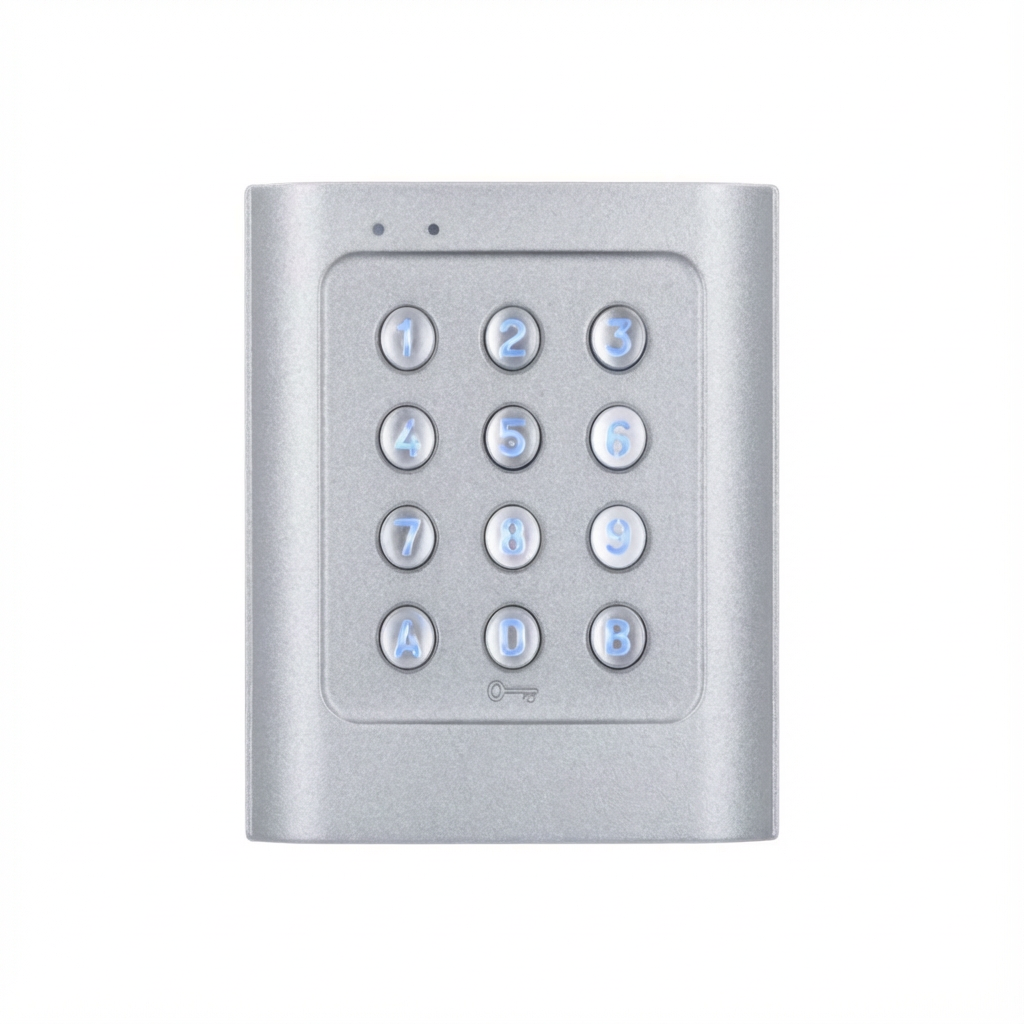

DGA Surface mount, self-contained rugged keypad

The DGA is a hardy surface mount keypad with self-contained electronics. Ideal for combining with access control or video entry systems, this keypad has capacity for up to 100 user codes and 2 relays. With an IP64 rating and vandal-resistant Torx® screws, the DGA is robust enough for securing industrial, residential, or commercial sites.

Key features:
Surface mount keypad with self-contained electronics
Robust vandal-resistant screws for a solution you can trust
Capacity for up to 100 user codes
Suitable for outdoor installations or harsh environments
Soft backlighting to assist in low light conditions

TECHNICAL SPECIFICATIONS:
User Limit
Up to 100 user codes
Number of Relays
2 relays, timed or latching modes
Mounting
Surface
Min Temperature (°C)
-25°C
Max Temperature (°C)
70°C

ELECTRICAL SPECIFICATIONS:
Min. Voltage (V)
12Vac/dc
Max Voltage (V)
24Vac/48Vdc
Voltage AC/DC
AC/DC
Max Power Consumption (mA)
80mA

DIMENSIONS:
Product Height (mm)
120
Product Width (mm)
98
Product Depth (mm)
25
Product Weight (kg)
0.78
