DW-4SAFE-S

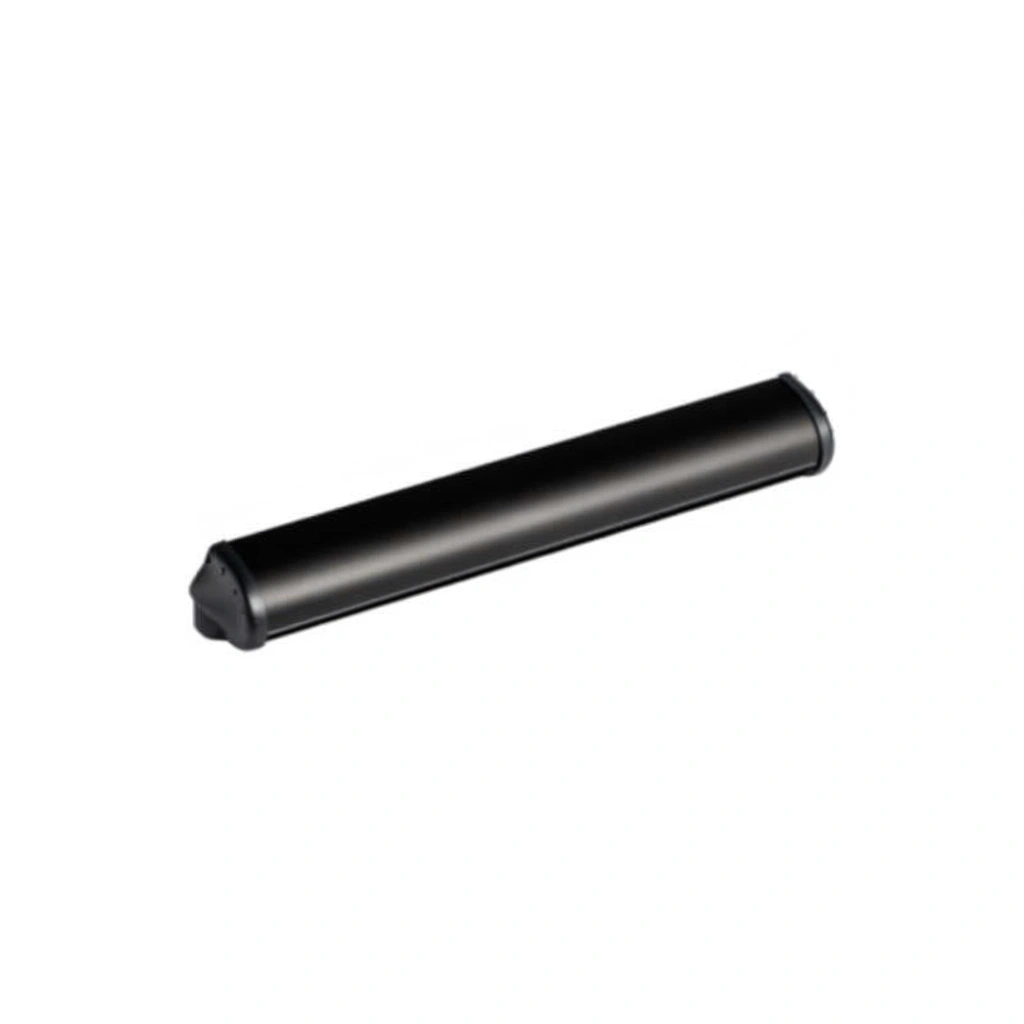

DW-4SAFE-S Infrared safety sensor for swing doors, 350mm

The DW-4SAFE sensor is an addition to CDVI’s range of sturdy sensors for automatic opening of doors, and the protection of users when the doors are in the operating cycle. This infrared door sensor is installed directly to the door and protects users whilst the door is in motion, allowing compliance with the EN16005 standard. The 4SAFE features an intuitive configuration process with time tested infrared feedback that enables the device to detect users who interrupt the door’s movement, creating a safe and efficient automatic entrance.

Key features:
Infrared door safety detection sensor for swing doors
4 infrared detection spots
Simple 1-button configuration
Strong and robust ABS construction
Suitable for internal and external use (with weathershield)
Ideal for DIGIWAY door operators

TECHNICAL SPECIFICATIONS:
Card / reader technology
Infrared
Number of Relays
2 relays
Mounting
Surface mount on door leaf, between 1.3 and 3.5m height from floor
Min Temperature (°C)
-25
Max Temperature (°C)
55
Range in Open Field (m)
@2m mounting height, 400x700mm (WxD) detection zone

ELECTRICAL SPECIFICATIONS:
Min. Voltage (V)
12Vac/dc
Max Voltage (V)
24Vac/dc
Voltage AC/DC
AC/DC
Max Power Consumption (mA)
60-180mA, dependent on voltage and master/slave status
Current
1A maximum

DIMENSIONS:
Product Height (mm)
47
Product Width (mm)
350
Product Depth (mm)
45.5
