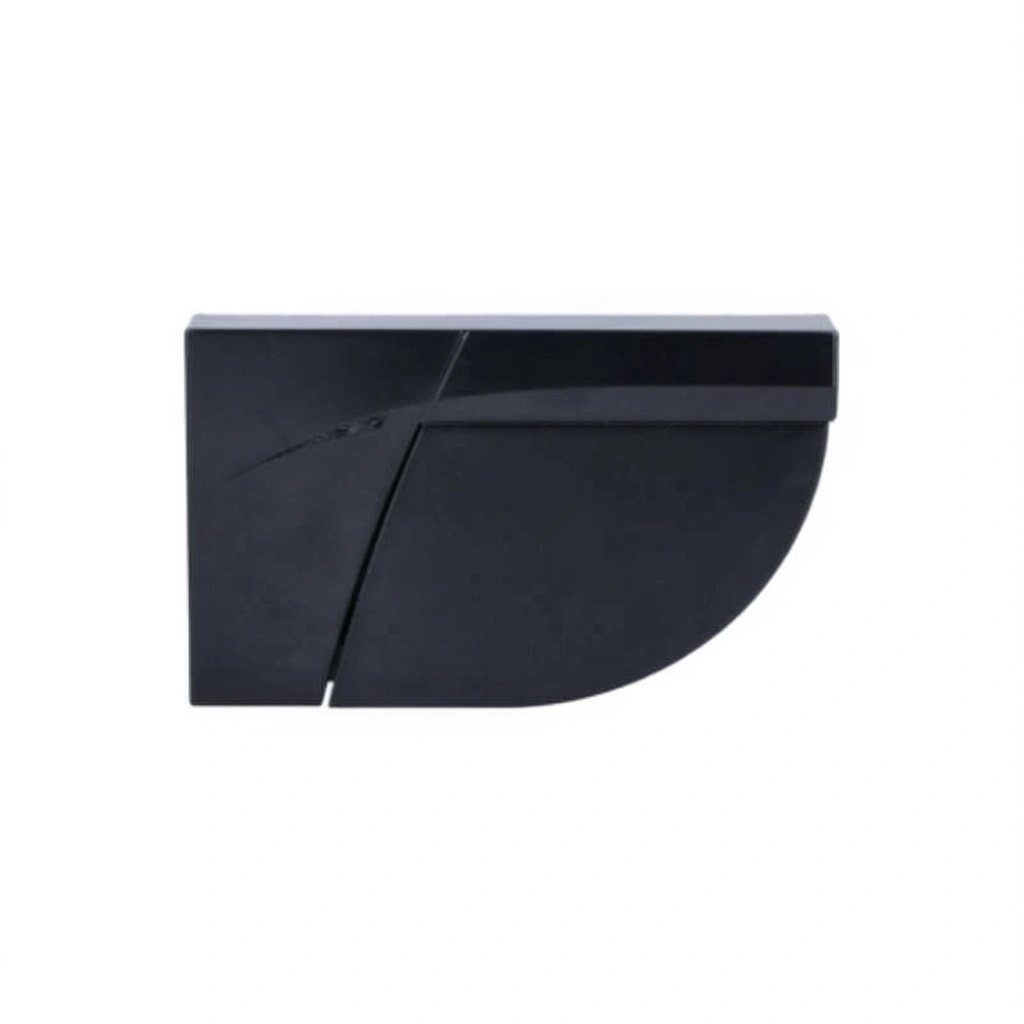

DW-FLATSCAN Laser safety sensor for swing doors

The DW-FLATSCAN uses cutting-edge laser technology to create an extremely accurate and reliable safety solution for automated swing doors. This sensor employs lasers and ‘time of flight’ technology, rather than traditional infrared detection. Generating a laser curtain, measuring 170 points divided over 106 degrees, the DW-FLATSCAN covers two zones at the same time: the door wing (70 points over 90 degrees) and the hinge area (100 points over 16 degrees). The technology allows for both very discreet installations as well as improved safety to the door and hinge area.

Key features:
Laser safety sensor device
Extremely accurate and reliable detection
170-point laser detection over 106° angle
Self-learning installation
Self-adjusting in operation
Ideal for use with DIGIWAY door operators

TECHNICAL SPECIFICATIONS:
Card / reader technology
Laser
Number of Relays
2 relays
Mounting
Surface, top corner of door leaf
Min Temperature (°C)
-25
Max Temperature (°C)
60
Range in Open Field (m)
4m diagonally from mounting point

ELECTRICAL SPECIFICATIONS:
Min. Voltage (V)
12Vdc
Max Voltage (V)
24Vdc
Voltage AC/DC
AC/DC
Max Power Consumption (mA)
166mA @ 2W
Current
100mA maximum

DIMENSIONS:
Product Height (mm)
85
Product Width (mm)
142
Product Depth (mm)
33
