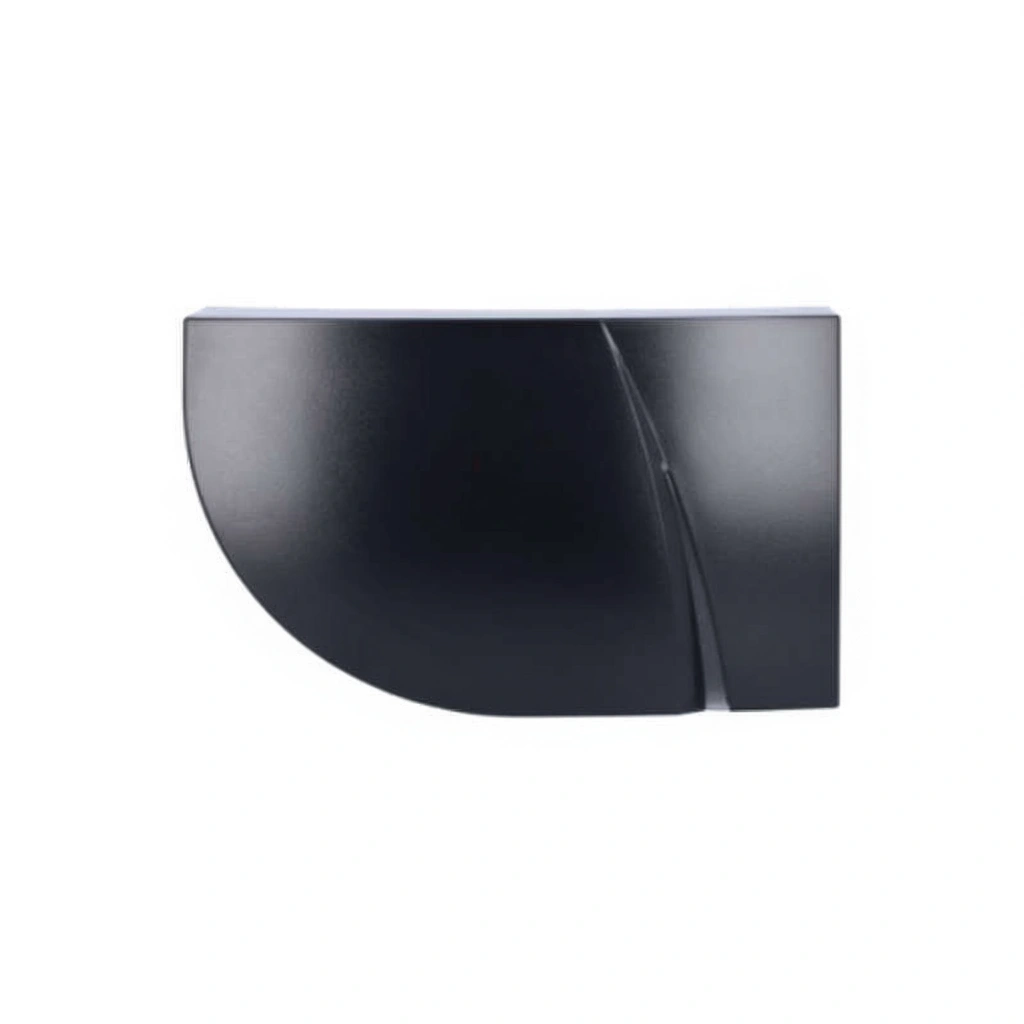

DW-FLATSCAN3D Volumetric laser safety sensor for swing doors

The DW-FLATSCAN3D uses volumetric laser technology to create an extremely accurate and reliable safety solution for automated swing doors. This sensor employs lasers and ‘time of flight’ technology, rather than traditional infrared detection. Generating a high resolution volumetric laser curtain, DW-FLATSCAN3D allows the door to work as a virtual presence detection system. This ensures that the door only moves when the whole pathway is clear.

Key features:
Laser safety sensor for swing doors
4 layers of laser curtains create a volumetric safety guard
Easy configuration process
Virtual activation buttons or presence activation
Self-learning installation & self-adjusting operation
Ideal for use with DIGIWAY door operators

TECHNICAL SPECIFICATIONS:
Card / reader technology
Volumetric laser
Number of Relays
3 relays – 2x presence and 1x activation
Mounting
Surface, top corner of door leaf
Min Temperature (°C)
-25
Max Temperature (°C)
60
Range in Open Field (m)
4m diagonally from mounting point

ELECTRICAL SPECIFICATIONS:
Min. Voltage (V)
12Vdc
Max Voltage (V)
24Vdc
Voltage AC/DC
AC/DC
Max Power Consumption (mA)
166mA @ 2W
Current
100mA maximum

DIMENSIONS:
Product Height (mm)
88
Product Width (mm)
145
Product Depth (mm)
60
