DW-TLC-KIT
DW-TLC-KIT Toilet door control kit for door automation

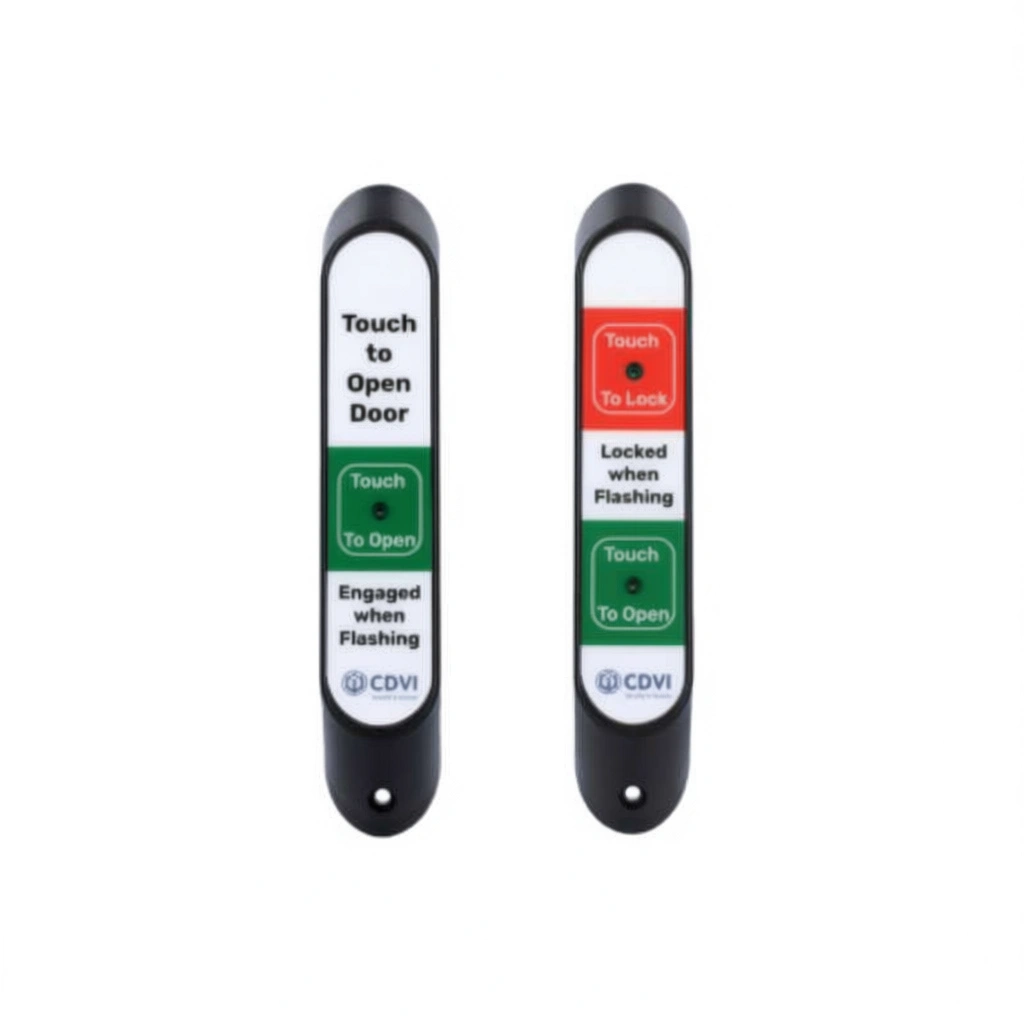

The DW-TLC is operated by two touch-sensitive sensors. It controls entry by locking and unlocking the door at the appropriate times, interfacing with both the automatic door operator and the locking device. The DW-TLC integrates seamlessly with DIGIWAY door operators, making it a touchless automated door system.
Entry: Touch the external sensor. The door opener activates to provide access.
Lock: Touch the internal sensor to lock the door. To confirm the door is locked, the LEDs on both sensors flash, showing the toilet is engaged and inhibiting the entry sensor.
Exit: Touch the internal sensor again. The indicator stops flashing. The door unlocks and the door opener activates. The entry sensor stops flashing and can provide access again.
Key features:
Accessible toilet locking system for door automation
4 DIP switches for custom settings
Integrated lock sensor and included door contact
LED indicators for door locking status
Kit includes: Door lock control (DW-TLC), power supply (PSMB123), emergency exit device (EM201), maglock (C3S11) and bracket (300-ZL).
TECHNICAL SPECIFICATIONS:
Number of Relays
1
Mounting
Surface
ELECTRICAL SPECIFICATIONS:
Min. Voltage (V)
7Vdc
Max Voltage (V)
30Vdc
Voltage AC/DC
DC
Max Power Consumption (mA)
27mA
DIMENSIONS:
Product Height (mm)
225
Product Width (mm)
40
Product Depth (mm)
49
Product Weight (kg)
0.23
