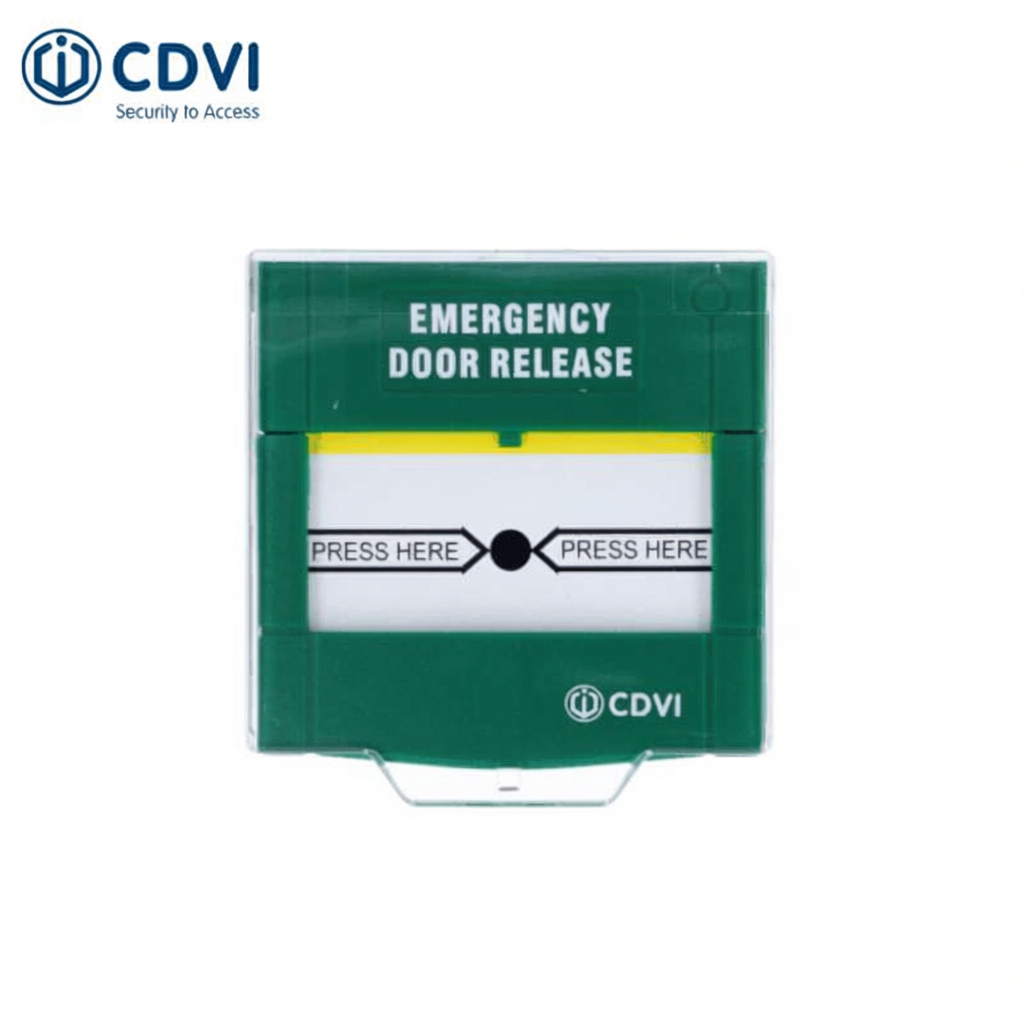

EM201 Double-pole resettable emergency door release

Description

EM201
EM201 Double-pole resettable emergency door release

This emergency door release is designed to trigger an immediate unlock of doors secured with electronic locks in the event of an emergency.
The EM201 is a resettable model – once activated when a user has pushed down on the front, it can be reset using a key (EMKEY).

Key features:
Double-pole emergency door release device
Resettable format – reset key included
Standard UK back-box format for easy installation
Surface mount as standard
Suitable for internal use only
Includes protective cover to prevent accidental activation (MX-03)

TECHNICAL SPECIFICATIONS:
Min Temperature (°C)
-30°C
Max Temperature (°C)
70°C

ELECTRICAL SPECIFICATIONS:
Max Voltage (V)
30Vdc
Voltage AC/DC
DC
Current
2A

DIMENSIONS:
Product Height (mm)
86
Product Width (mm)
86
Product Depth (mm)
50
Product Weight (kg)
0.15
