ERA 4 Rollers Multi-Point Lock – 45mm Backset

Description

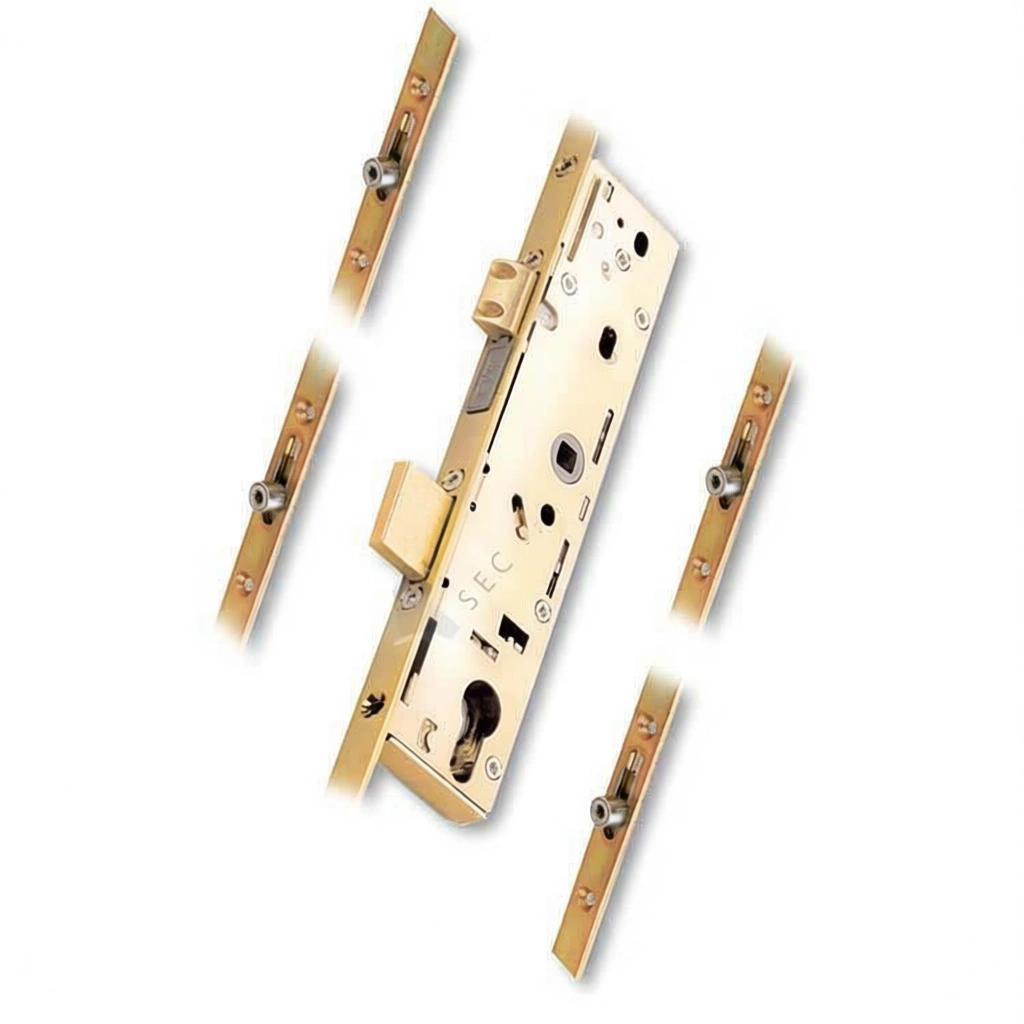

ERA 4 Rollers, 1 Deadbolt, 1 latch Multi-Point Lock – 45mm Backset

Overview:

• Non-handed lock mechanism with reversible sash bolt to minimise stock requirements.
• Snib facility as standard on all locks.
• Central brass deadbolt throws 22mm to prevent unauthorised entry.
• Bi-directional throw of locking features.
• Precision adjustable rollers for enhanced performance and weathersealing.
• Accepts standard 92mm unsprung handles and euro profile cylinders (operates with BS and DIN specification cylinders and most other types of cylinder).
• Split spindle for lever/pad applications – choice of length available.
• Easy-fit packer system for alternative profiles.

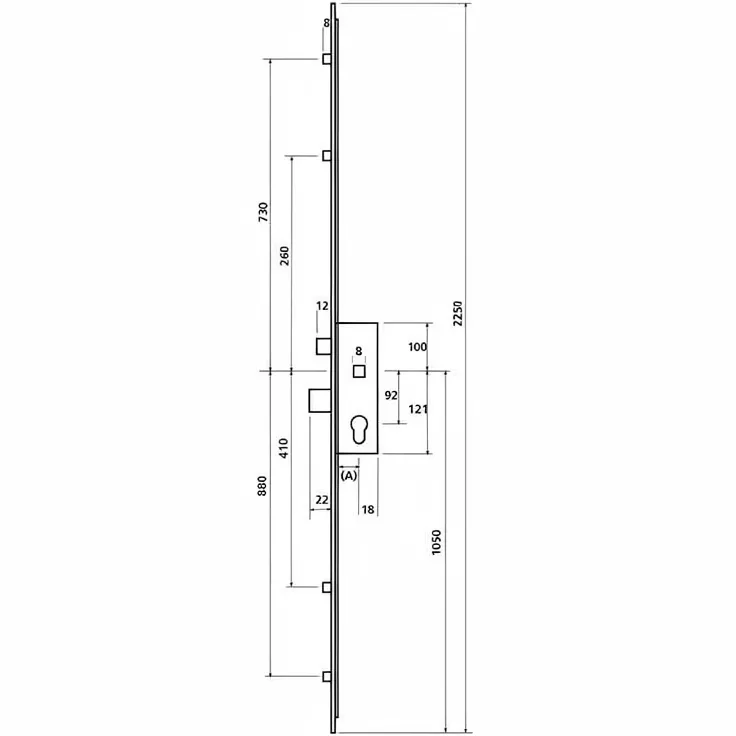

Sizes:

• Backset: 45mm.
• Centres: 92mm.
• Spindle: 8mm.
• Height: 2250mm.
• Faceplate: 16mm.

Please note that this is a collection-only item.
