Description

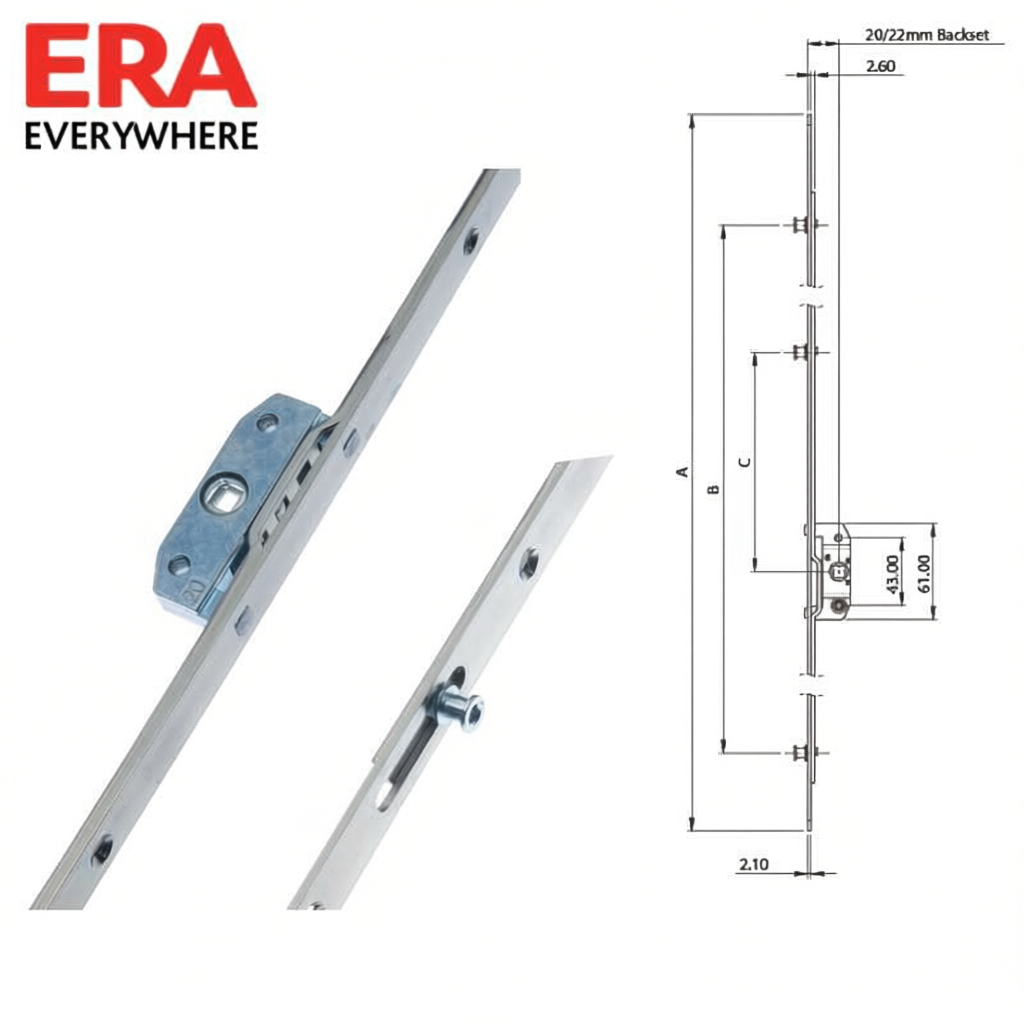

Espagnolette Bar Window Lock

Features

• Quick and easy to install locking solution.
• Smooth and positive locking for ease of use.
• Adjustable mushroom heads for enhanced weathersealing.
• High quality mild steel construction.

Full Description

An espagnolette window lock designed as a quick and easy to install solution for all types of casement windows. The face-fixed locking bar comes with 8mm adjustable mushroom cams for excellent weathering performance. Smooth and positive locking is compatible with all espagnolette window handles. A wide range of profile keeps are available to suit.

The robust and durable design includes an inline gearbox available in 20mm and 22mm backset options and in 6 bar lengths suitable for sash rebate sizes from 285mm to 1425mm. Bar lengths start at 250mm and go up to 1200mm, with 2-3 mushroom cams per bar depending on length (3 cams on 1000mm and 1200mm bars).

Manufactured using high quality mild steel in accordance with BS 1449 Part 1 and meets corrosion resistance BS EN 1670:2007 Grade 4 (240 hours). Tested in excess of 25,000 cycles of opening.
