HSM-600S

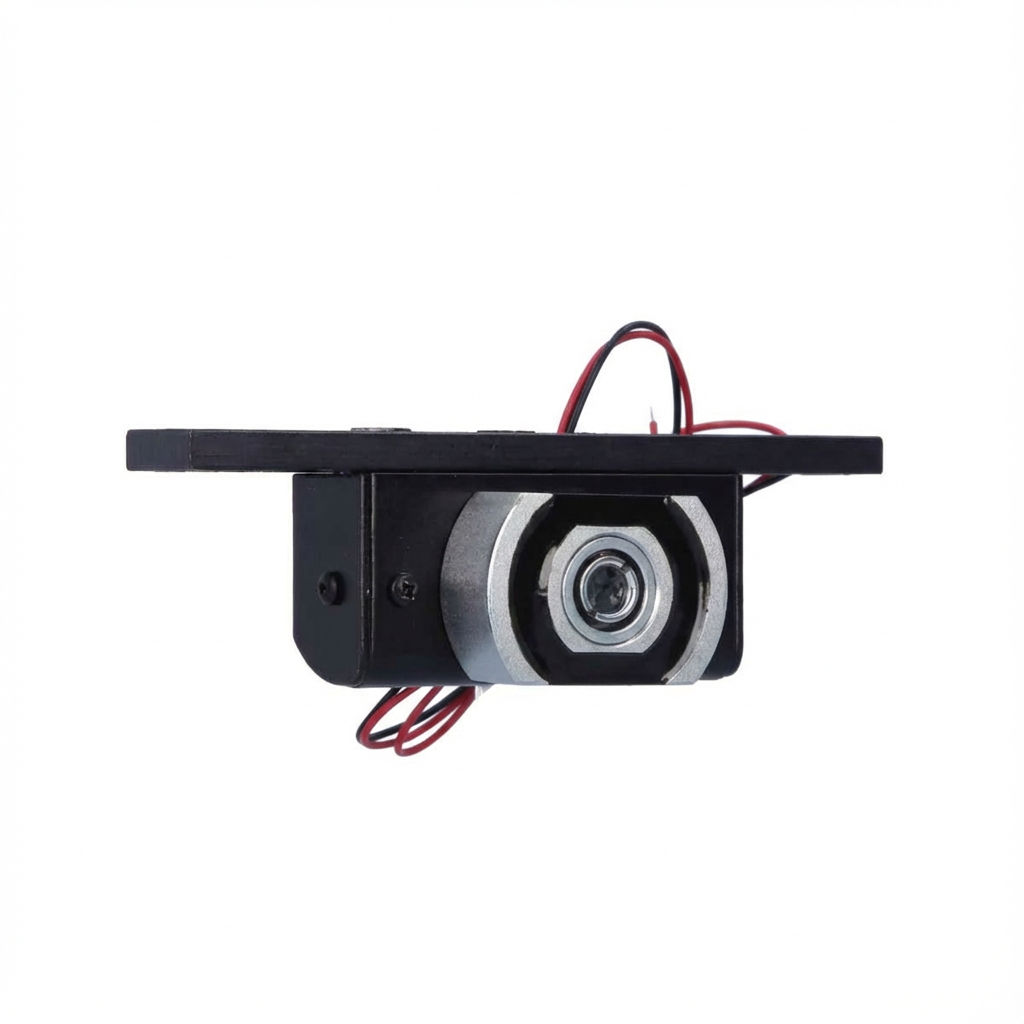

HSM-600S Single high security micro maglock 680kg

High quality lock with built-in patented technology.
Rounded edges for an aesthetic finish.
Available in black or silver finish to suit any environment.
Supplied assembled and ready to install.
Adjustable bracket and armature.

Technical specifications:
Security Level: High security electromagnetic lock.
Fail Safe / Fail Secure: Fail safe.
Holding Force (kg): 680kg.
Mounting: Surface.
Cycle testing: Tested for 1,000,000 operations.

Electrical specifications:
Min. Voltage (V): 12 Vdc.
Max Voltage (V): 24 Vdc.
Voltage AC/DC: DC.
Consumption (mA): 260mA @ 12Vdc, 120mA @ 24Vdc.

Appearance:
Surface Material: Aluminium and iron.
Colour: Black or silver finishes.

Dimensions:
Product Height (mm): 70 mm.
Product Width (mm): 39.4 mm.
Product Depth (mm): 42 mm.
Armature Plate Dimensions (LxWxH): 70 (W) x 26 (H) mm.
Product Weight (kg): 0,220 kg.
