HSM-600SB

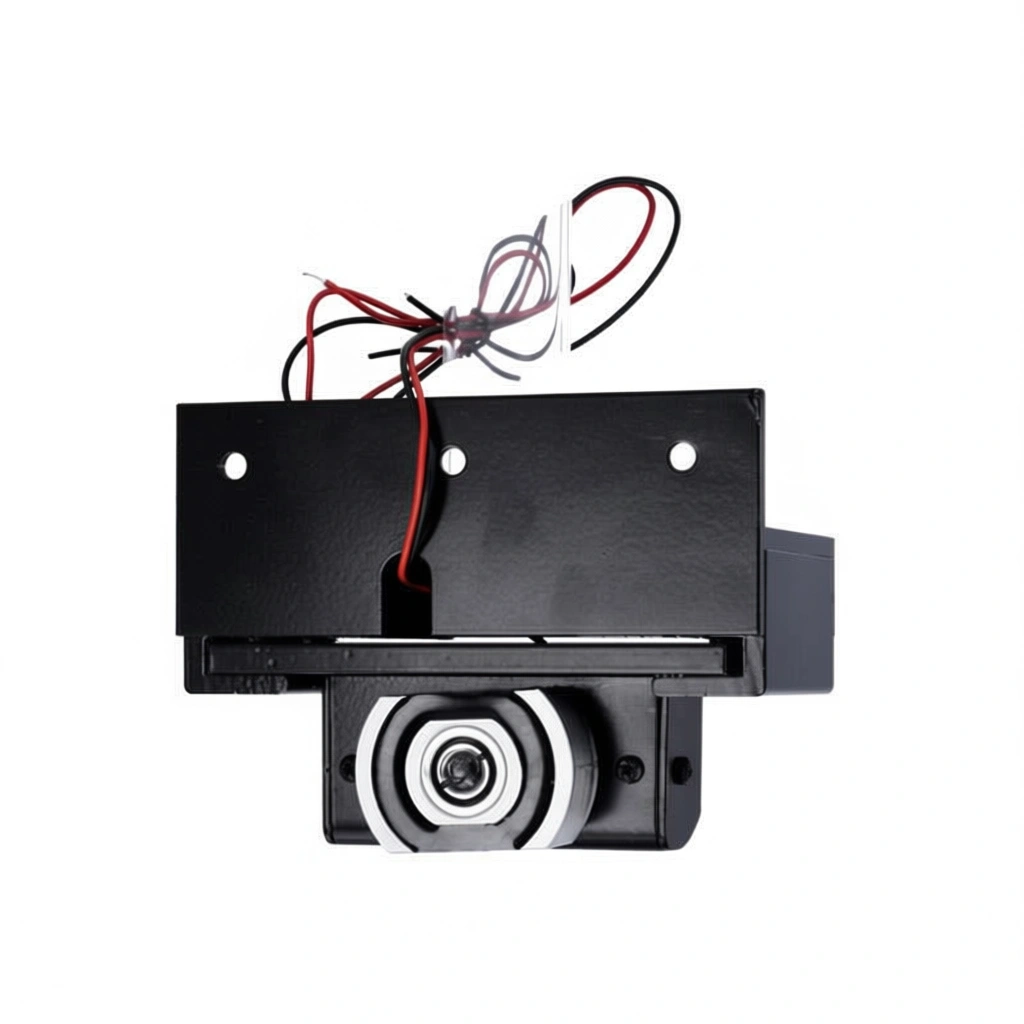

HSM-600SB Single high security maglock with adjustable bracket 680kg

The HSM-600SB by CDVI is a micro power maglock that is ideal for automatic doors, where space between operators is too narrow for maglocks.
The micro power lock is ideal for automatic doors, especially where space between operators is narrow for conventional maglocks, or where the armature intrudes on the safety sensor position. The maglock ensures improved performance and reliability thanks to its built-in patented technology. The traditional armature plate is supplemented by a strong alloy pin, creating a mix of mechanical and magnetic holding force. The bracket and the armature are adjustable, allowing the lock to be positioned according to your requirements.

HSM-600SZ : Why to choose this product
High quality lock with built-in patented technology
Rounded edges for an aesthetic finish
Available in black or silver finish to suit any environment
Supplied assembled and ready to install
Adjustable bracket and armature

Technical specifications:
Security Level: High security electromagnetic lock.
Fail Safe / Fail Secure: Fail safe.
Holding Force (kg): 680kg.
Mounting: Surface.
Cycle testing: Tested for 1,000,000 operations.

Electrical specifications:
Min. Voltage (V): 12 Vdc.
Max Voltage (V): 24 Vdc.
Voltage AC/DC: DC.
Consumption (mA): 260mA @ 12Vdc, 120mA @ 24Vdc.

Appearance:
Surface Material: Aluminium and iron.
Colour: Black or silver finishes.

Dimensions:
Product Height (mm): 116 mm.
Product Width (mm): 85 mm.
Product Depth (mm): 60 mm.
Armature Plate Dimensions (LxWxH): 70 (W) x 26 (H) mm.
Product Weight (kg): 0,560 kg.
