HSM-600SZ
HSM-600SZ Single high security maglock with Z bracket 680kg

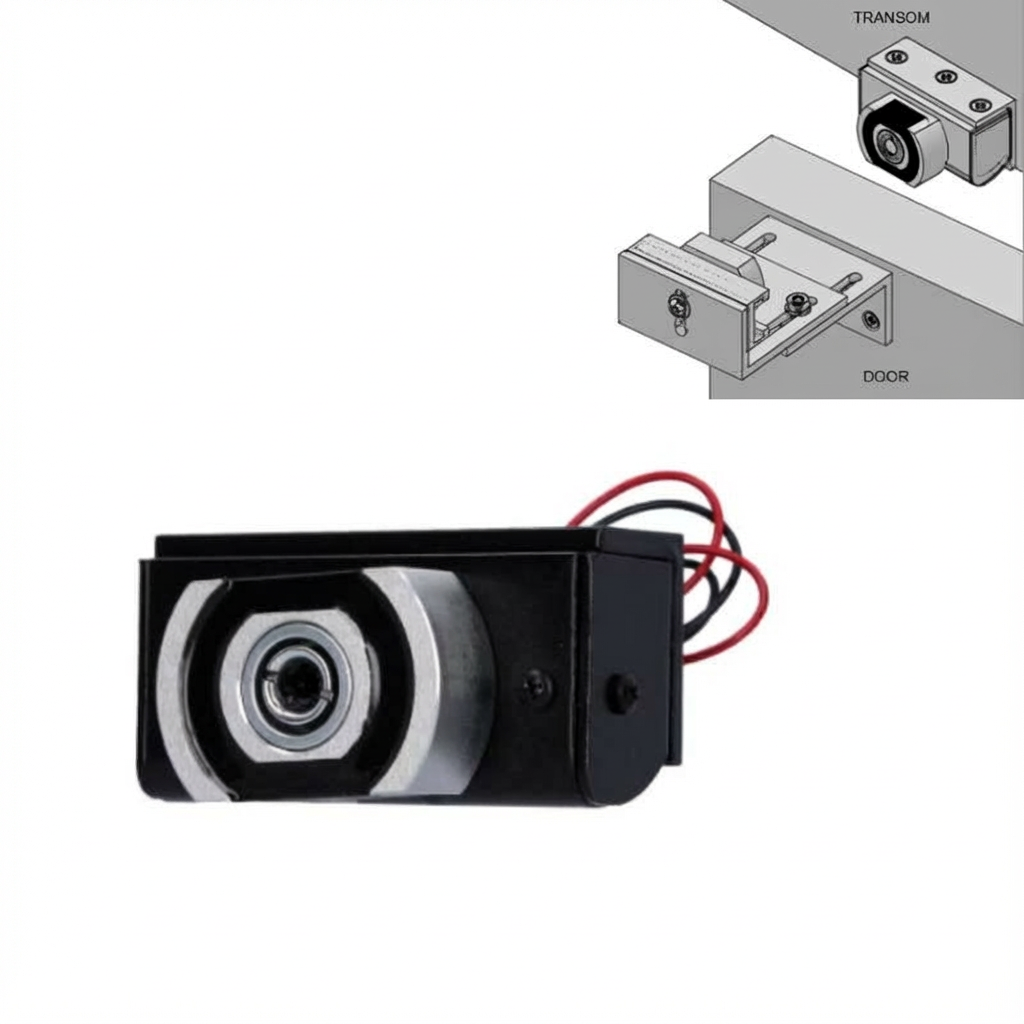

The HSM-600SZ by CDVI is a micro power maglock for inward-opening doors where conventional maglocks are too big. Comes with a Z bracket.
The micro power lock is ideal for automatic doors, especially where space between operators is narrow for conventional maglocks, or where the armature intrudes on the safety sensor position. The maglock ensures improved performance and reliability thanks to its built-in patented technology. The traditional armature plate is supplemented by a strong alloy pin, creating a mix of mechanical and magnetic holding force. The bracket and the armature are adjustable, allowing the lock to be positioned according to your requirements.

HSM-600SZ : Why to choose this product
High quality lock with built-in patented technology.
Rounded edges for an aesthetic finish.
Available in black or silver finish to suit any environment.
Supplied assembled and ready to install.
Adjustable bracket and armature.

Technical specifications:
Security Level: High security electromagnetic lock.
Fail Safe / Fail Secure: Fail safe.
Holding Force (kg): 680kg.
Mounting: Ideal for automatic doors or where there is not enough armature space for a traditional maglock.
Cycle testing: Tested for 1,000,000 operations.

Electrical specifications:
Min. Voltage (V): 12 Vdc.
Max Voltage (V): 24 Vdc.
Voltage AC/DC: DC.

Appearance:
Colour: Black or silver finishes.

Dimensions:
Armature Plate Dimensions (LxWxH): 70 (W) x 26 (H) mm.
