I500SR 500kg external surface monitored magnetic lock

Description

I500SR

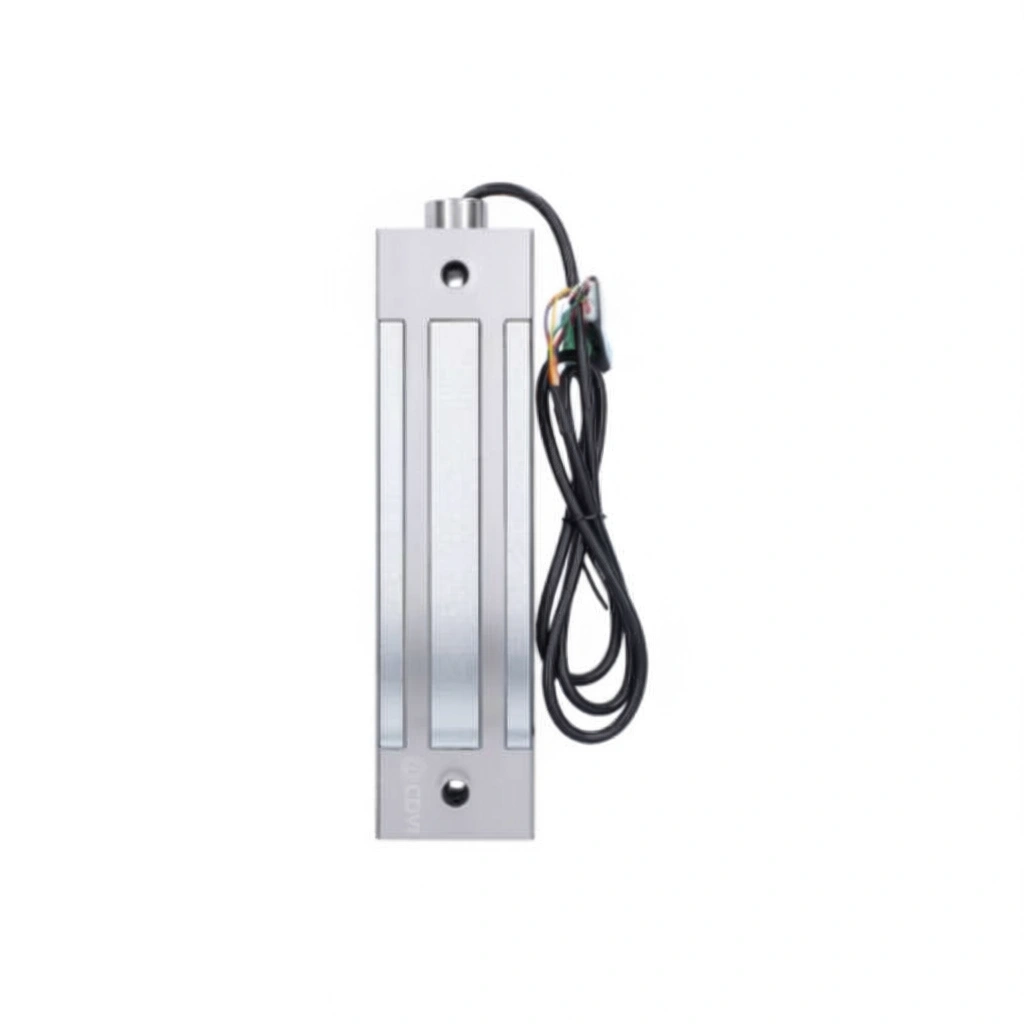

I500SR 500kg external surface monitored magnetic lock

The I500SR is a monitored surface maglock with a holding force of up to 500kg. Cased in high grade stainless steel, with a unique cover plate, this magnet is supplied with a full fixing kit.

ESL-500 L-bracket for I500SR external magnets available HERE.

ESZ Z-bracket for 400kg and 500kg external magnets available HERE.

Key features:
500kg holding force
Monitored surface mount maglock
Stainless steel construction
For use in harsh environments
12-24Vdc
Female M20 cable gland outlet

TECHNICAL SPECIFICATIONS:
Number of Relays: 1.
Fail safe.
Mounting: Surface.
Min Temperature (°C)
-40°C
Max Temperature (°C)
60°C

ELECTRICAL SPECIFICATIONS:
Min. Voltage (V)
12Vdc
Max Voltage (V)
24Vdc
Voltage AC/DC
DC
Max Power Consumption (mA)
480mA

DIMENSIONS:
Product Height (mm)
230
Product Width (mm)
61
Product Depth (mm)
40
Armature Plate Dimensions (LxWxH)
185 / 60 / 12mm
Armature Plate Weight (kg)
1
Product Weight (kg)
3.32
