Lockey Gate Box

Description

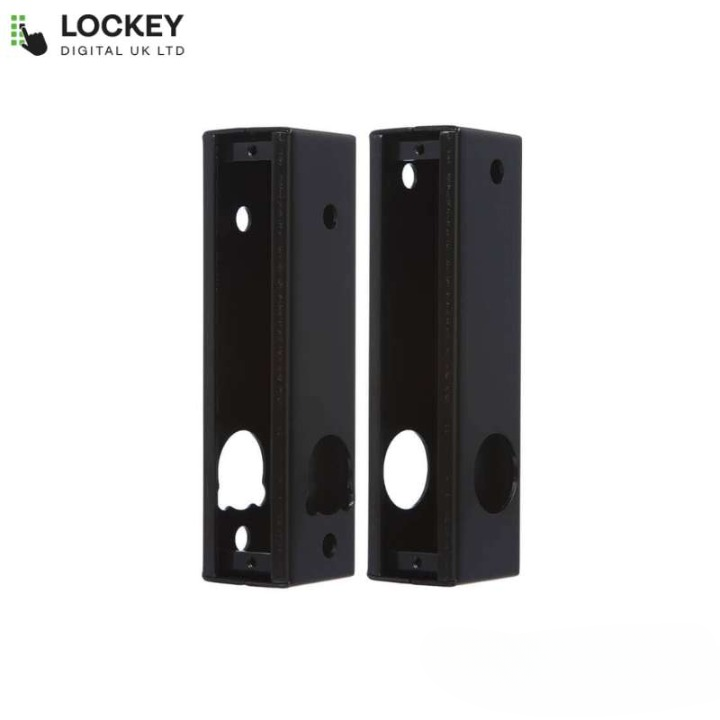

Lockey Gate Box

Lockey Gate Box

A weldable steel gate box pre drilled for easy installation of the Lockey 2000 series locks & narrow stile gate lock cases.
GB930 for LD930 gate lock case
GB900/ 950 for LD900 & LD950 gate lock cases
Gate box dimensions H 180mm x W 45mm x D 50mm
Lockey LD930-Adams Rite style latch
-28mm back set
-Anti thrust pin
-15mm throw
-Lock case dimensions
H 176mm x W 25mm x D 44mm
-Supplied with 110mm length spindle & strike plate

For use with Lockey 2000 series 2430, 2435, 2835,
2430DS & 2835DS
Lockey LD900-Mortise dead bolt
-28mm back set
-Five-ply laminated steel bolt with hardened steel
pin for maximum security
-38mm bolt throw
-Lock case dimensions H 176mm x W 25mm x D 44mm
-Supplied with 110mm length spindle
For use with Lockey 2000 series 2210 & 2430DS
Lockey LD950-Mortise hook bolt
-28mm back set
-Five-ply laminated steel hook bolt with hardened steel
pin for maximum security
-22mm bolt throw
-Lock case dimensions H 176mm x W 25mm x D 44mm
-Supplied with 110mm length spindle

For use with Lockey 2000 series 2210 & 2430DS
