Maco G-TS MK4 UPVC Lock Gearboxes

Description

Maco G-TS MK4 UPVC Lock Gearboxes

Maco G-TS MK4 UPVC Lock Gearboxes. Maco have used MK4 gearboxes on their new type door locks since approximately 2010.
It can’t be used to replace MK2 or MK3 gearboxes.

Overview

• ne latch and one deadbolt.

Specification:

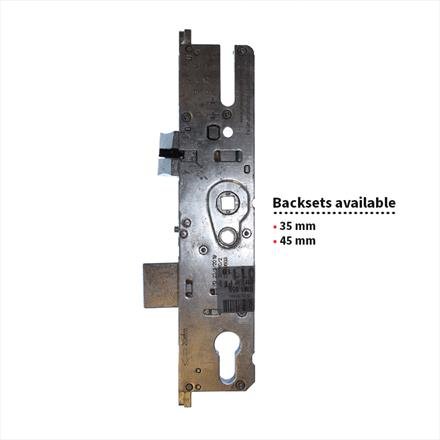

• Backset – 35mm or 45mm.
• Centres – 92mm.
• Length of case – 228mm.
• Spindle: Single 8mm.

Operation:

• Lift lever or split spindle.

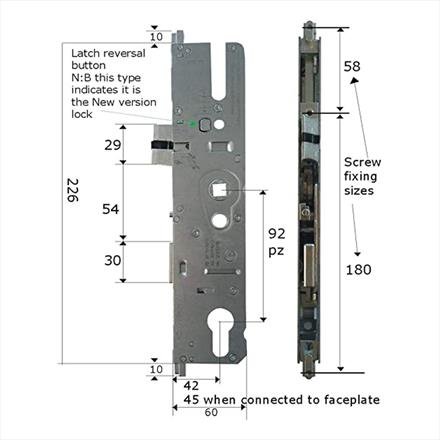

• Latch reversal: Push up the serrated button on the side of the case, remove the latch, reverse and reinsert.
