Mila Latch Only, 2 Mushroom Cams & 2 Rollers Multi-Point Lock – 35mm Backset

Description

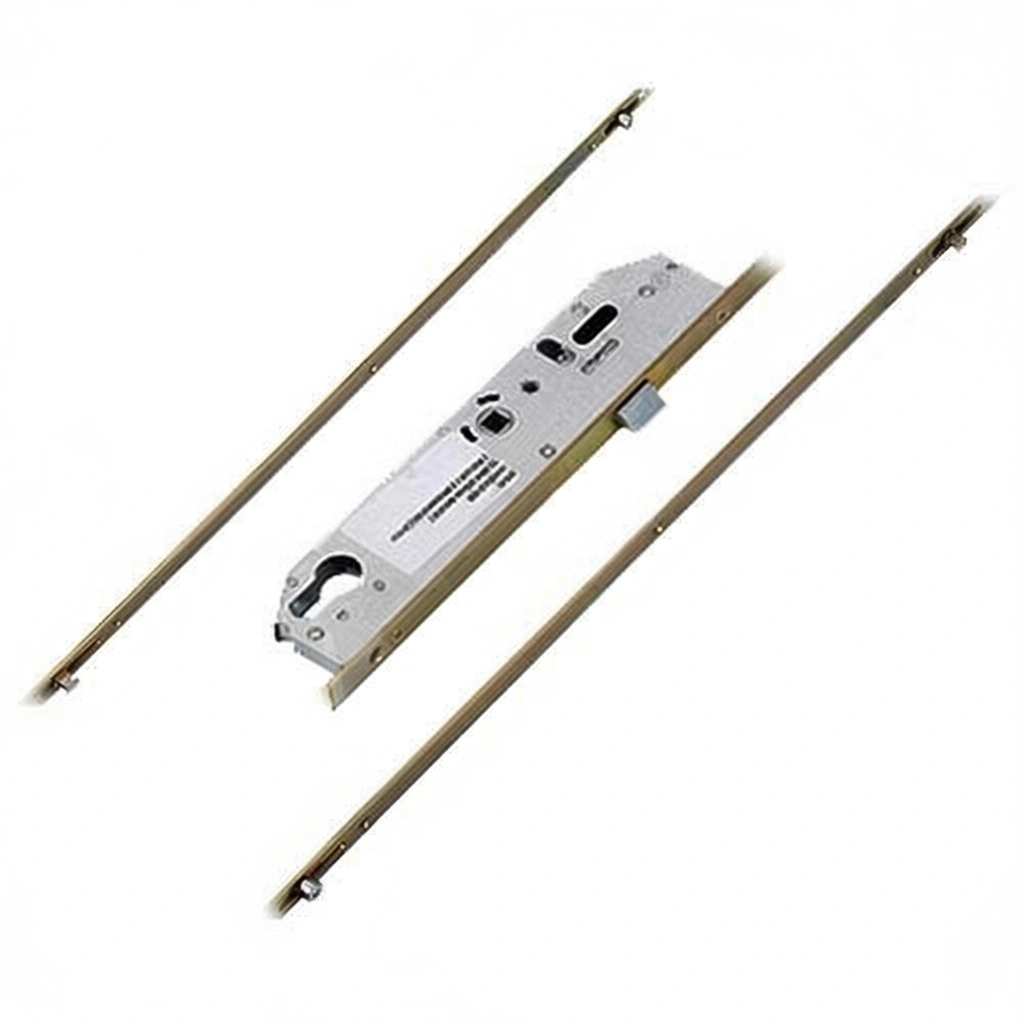

This is a Mila Multi-point lock consisting of a one-piece full-length lock equipped with one latch bolt, two rollers and two mushroom cams. It has the same locking positions as a 4-roller lock but offers a slightly higher level of securityIt is suitable for standard residential doors.

Overview:

• Latch Only, 2 Mushroom Cams and 2 Rollers
• Reversible latch
• Suits standard 92mm centres lever handles

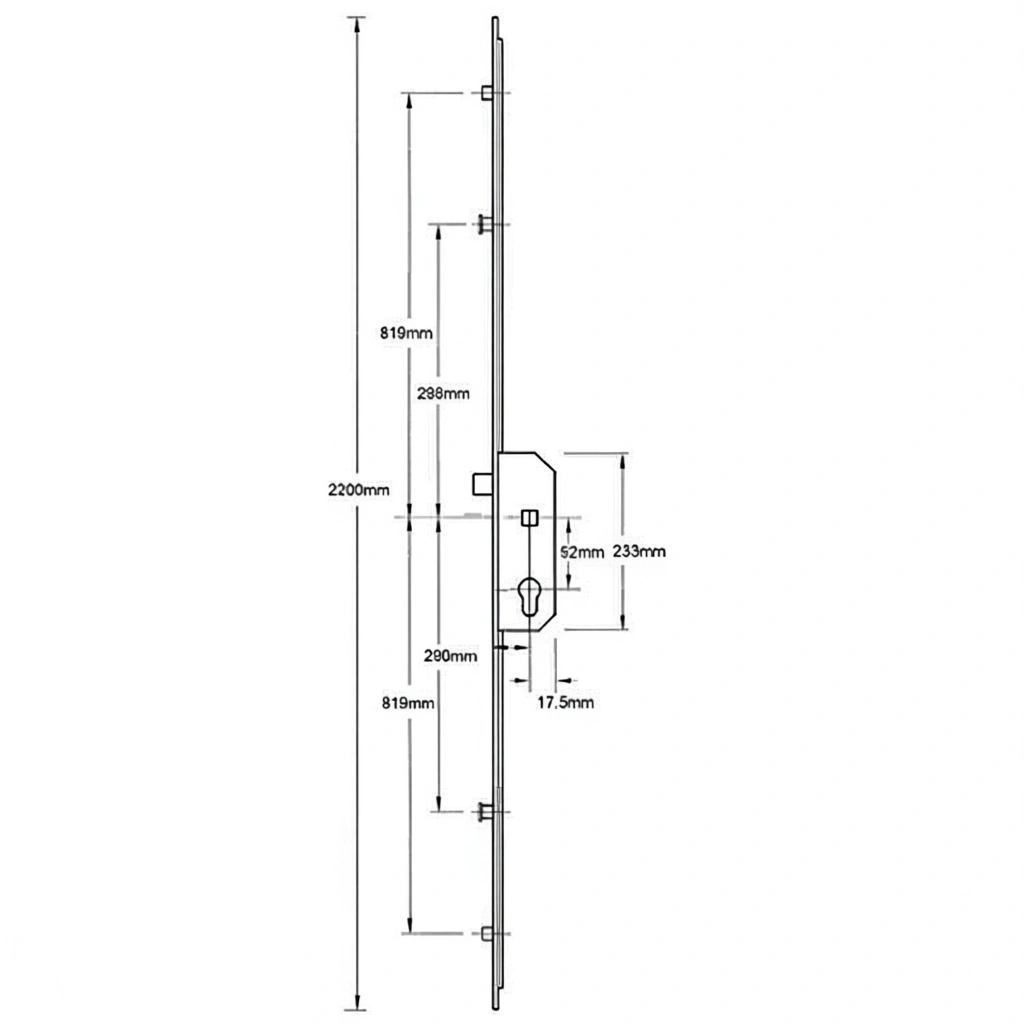

Specification:

• Backset: 35mm.
• Centres: 92mm.
• Spindle: 8mm single.
• Height: 2200mm.
• Overall length: 2200mm.
• Distance between outer rollers: 1638mm.
• Distance between inner rollers: 596mm.
• Cams travel: 16mm
• Faceplate: 16mm (Square Ends).

Operation:

• Lever/Lever
• Suitable for right and left-hand operations: Simply undo the screw in the side of the lock case to remove the latch, reverse, reinsert and replace the screw.

Please note that this is a collection-only item.
