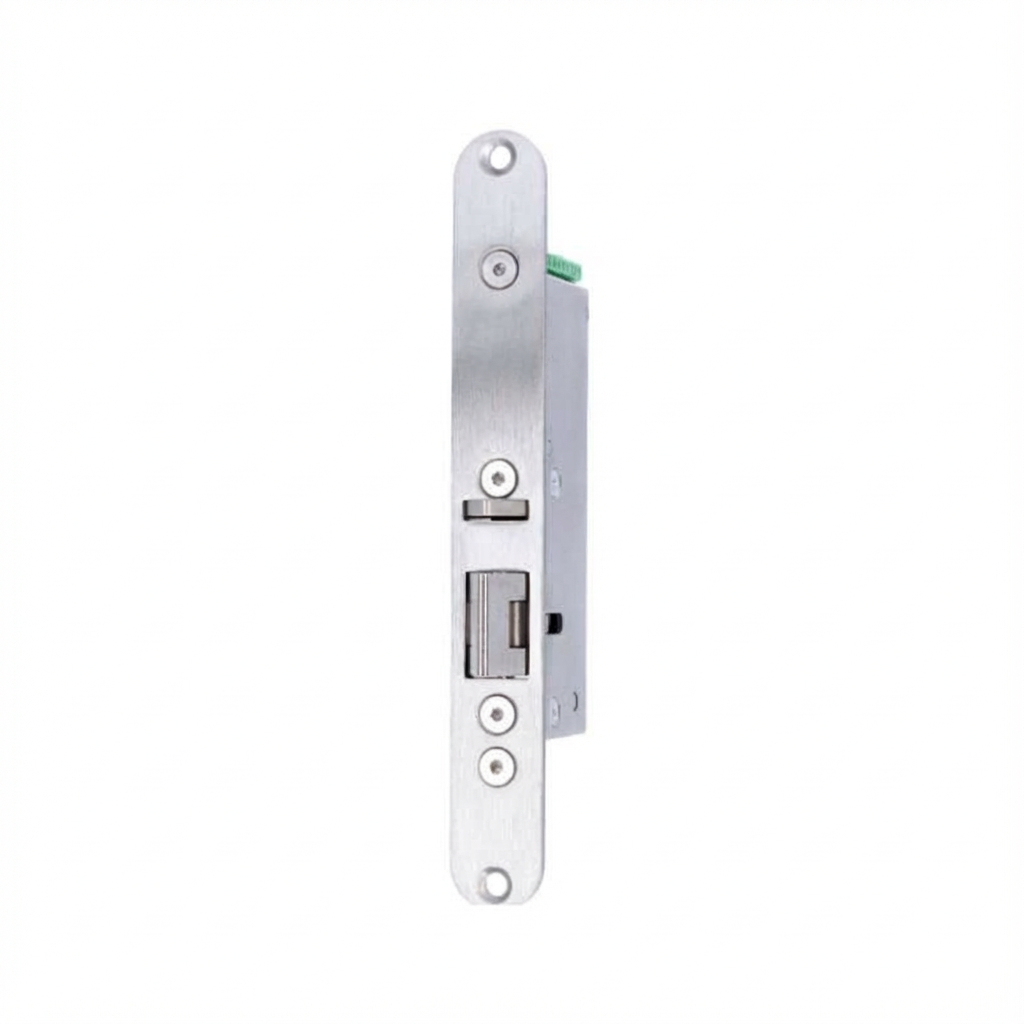

ML-350M-PL-12/24 Compact 650kg electric lock, fire rated

Description

ML-350M-PL-12/24
Compact 650kg electric lock, fire rated

The ML-350M provides fire certification, 650kg holding force and 225kg of preload operation.
It is suitable for both horizontal or vertical mounting and double action door sets and features a bi-directional snib.

Manufactured from stainless steel, this lock is fail safe and suitable for use on emergency escapes.
With both lock status and door status monitoring it is easy to check the status of important doors.
Tested to 250,000 cycles the ML-350M is a great solution for doors requiring solenoid type locking with fire certification and preload operation.

Key features:
Operates under sideload (225kg)
Up to 650kg holding force
Suitable for double action doors
Fire tested to 60 minutes (EN14846)
Lock status monitoring
Bi-directional snib

TECHNICAL SPECIFICATIONS:
Fail safe.
Pre-load: 225kg.
Min Temperature (°C): -10°C.
Max Temperature (°C): 49°C.
Cycle testing: Tested for 250,000 cycles.
Reversible Handing.

ELECTRICAL SPECIFICATIONS:
Max Voltage (V): 12/24Vdc.
Voltage AC/DC: DC.
Max Power Consumption (mA): 280mA.

DIMENSIONS:
Product Height (mm): 200.
Product Width (mm): 25.
Product Depth (mm): 40.
Armature Plate Dimensions (LxWxH): 200/25/3mm.
