Motorised Touch Bar PHTM0 – Single Point Latch

The Motorised Touch Bar PHTM0 is a single point latch panic exit device designed to provide controlled external access while ensuring safe and immediate egress from the inside. The motorised mechanism integrates seamlessly with access control systems, while the panic touch bar always overrides the motor for emergency exit.

Applications:

• Single doors (timber, metal or PVCu)
• Active leaf of rebated double doors

Features:

• Motorised touch bar with integrated motor and modular mechanism.
• Compatible with access control systems such as digital keypads, proximity readers and swipe card systems.
• Panic function always operable from inside for safe egress.
• Motor operation: 12–24V DC (stabilised) or 12V AC.
• Requires 2 amp power supply.
• Supplied with strikers for timber or metal doors as standard.
• PVCu strikers available separately.

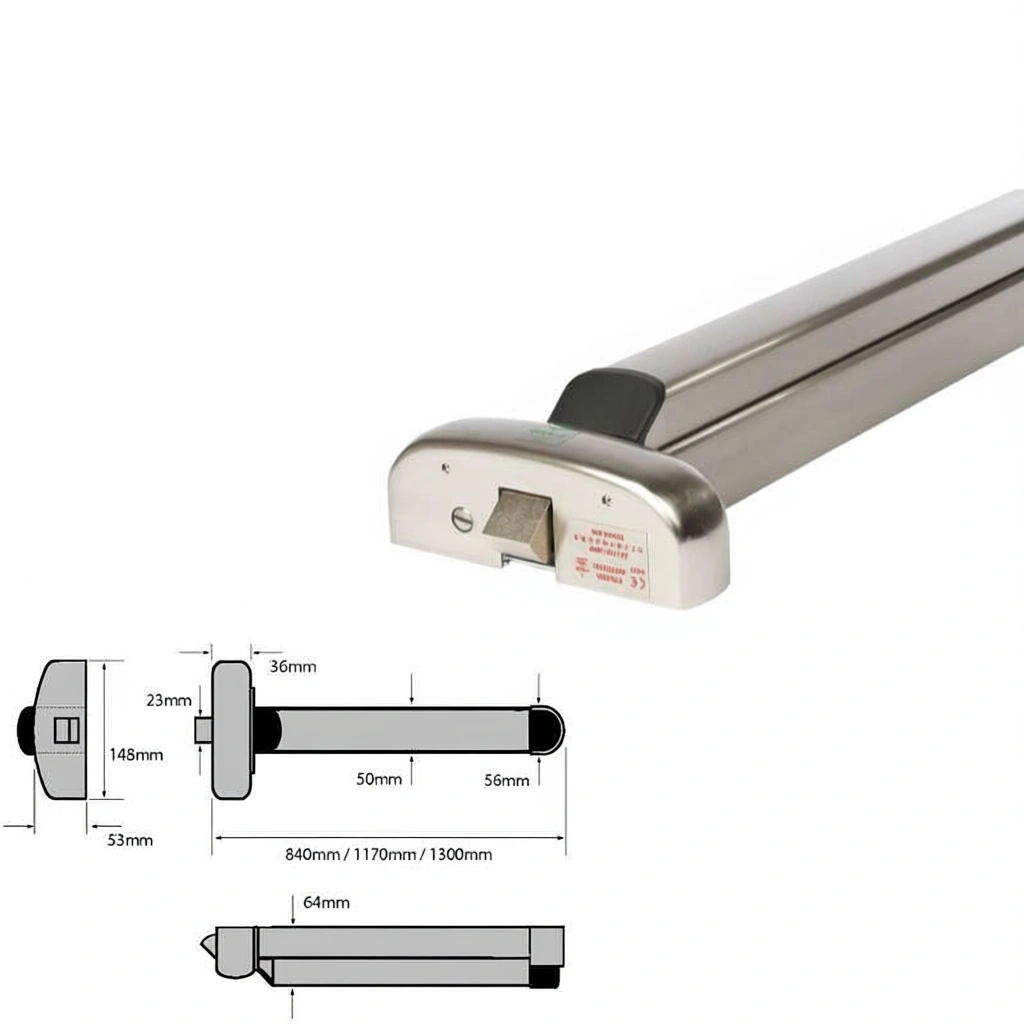

Size Options:

• Standard size: 840mm – suitable for doors up to 860mm wide.
• Extended size: 1170mm – available for wider doors.

Optional Extras:

• Micro-switch for door status monitoring (must be specified at time of order).
• Dogging (hold-back) facility available on request.
• Outside access devices for controlled entry.

Important Note: The dogging (hold-back) facility must not be used on fire or smoke door assemblies, but is suitable for escape doors.
